Unregulated 60mA Charge Pump Voltage Inverter, SGM3206 Replace TPS60400.
SGM3206
SGM3206.pdf
SGM3206.pdfFEATURES
? Inverts Input Supply Voltage
? Up to 60mA Output Current
? Input Voltage Range from 1.4V to 5.5V
? Quiescent Current: 115μA (TYP)
? Integrated Active Schottky Diode for Start-Up into
Load
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 Package

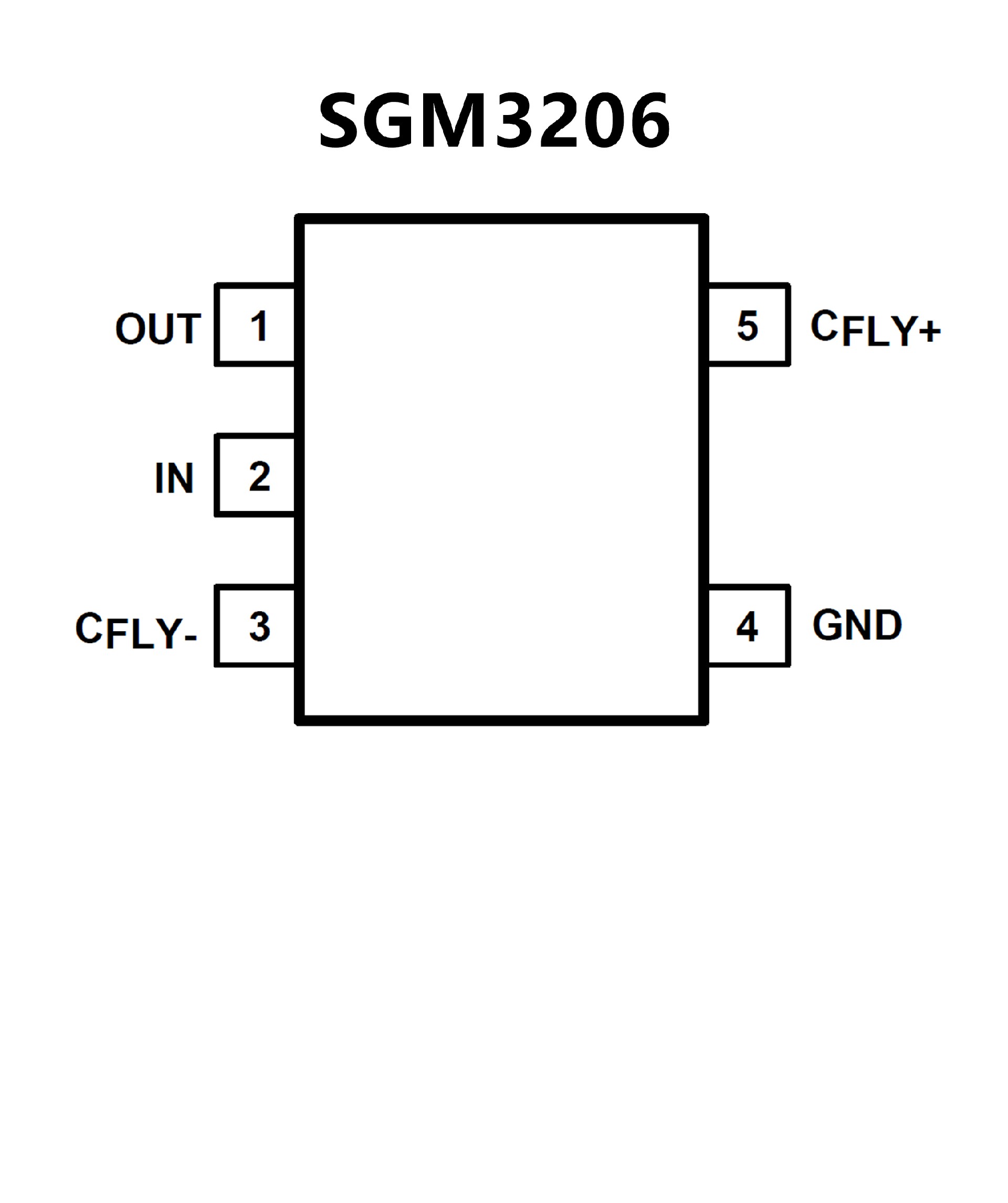

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Inverts Input Supply Voltage
? Up to 60-mA Output Current
? Only Three Small 1-μF Ceramic Capacitors
Needed
? Input Voltage Range From 1.6 V to 5.5 V
? PowerSave-Mode for Improved Efficiency at Low-
Output Currents (TPS60400)
? Device Quiescent Current Typical 65 μA
? Integrated Active Schottky-Diode for Start-up Into
Load
? Small 5-Pin SOT-23 Package
? Evaluation Module Available TPS60400EVM-178

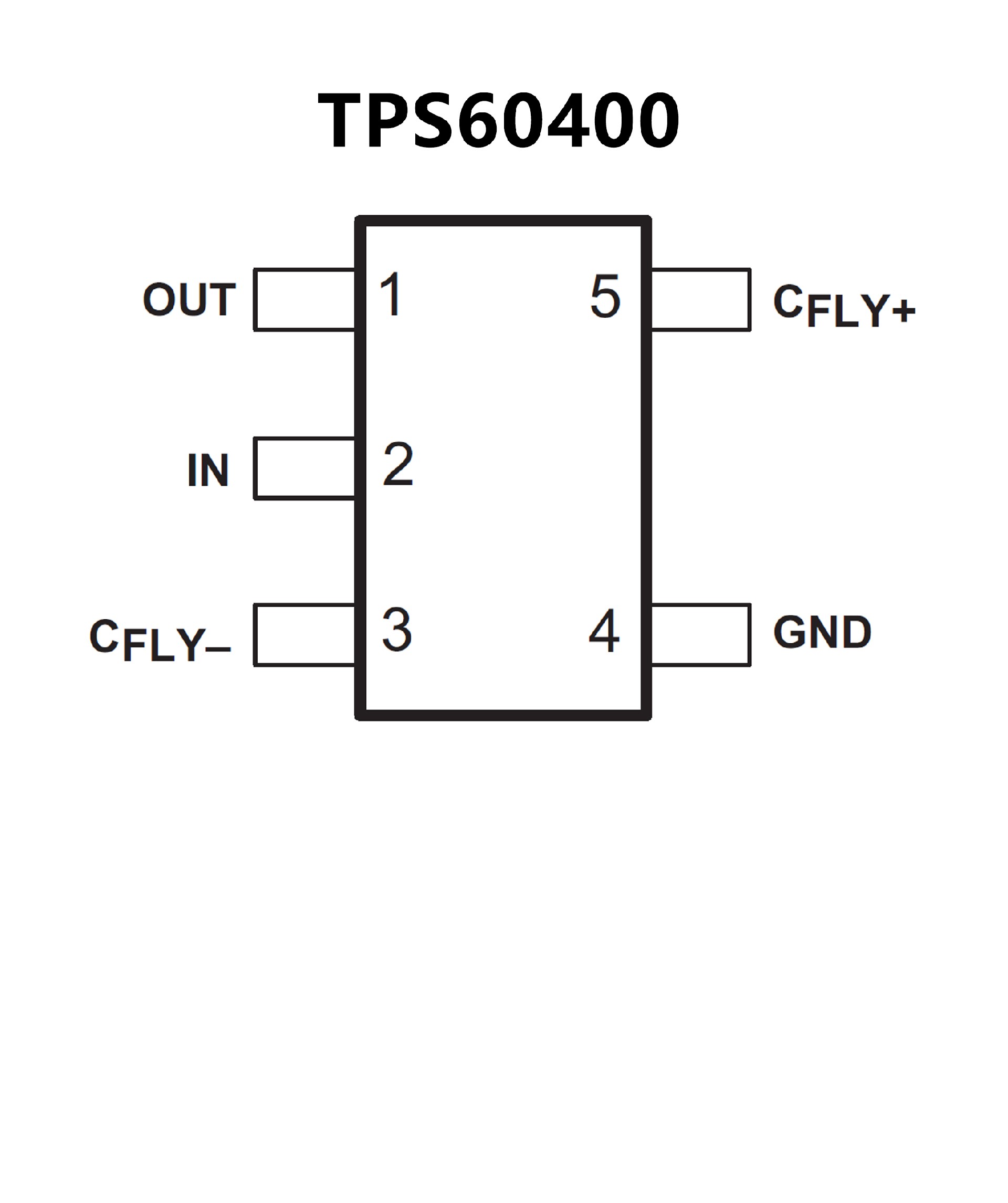

PIN CONFIGUTION
