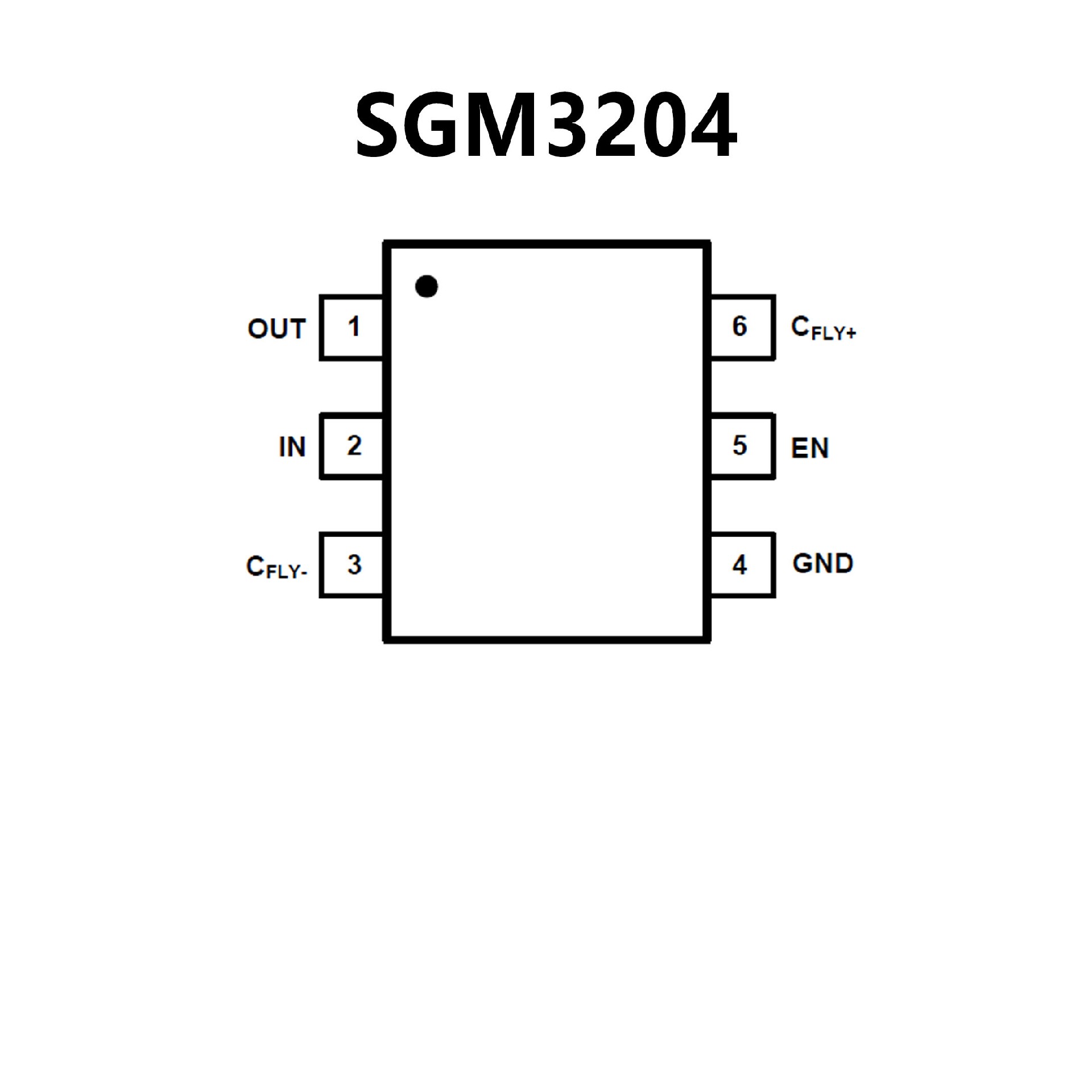

SGM3204.pdf? Inverts Input Supply Voltage
? Up to 200mA Output Current
? Input Voltage Range from 1.4V to 5.5V
? Quiescent Current: 1.5mA (TYP)
? 950kHz Switching Frequency
? Integrated Active Schottky Diode
for Start-Up intoLoad
? -40℃ to +85℃ Operating
Temperature Range
? Available in Green SOT-23-6 Package
? Operating Voltage Range of 1.5 V to 5.5 V
? Output Current Capability in Excess of 50 mA
? Low Current Consumption of 122 μA
? Power Saving Shutdown Input for a
Reduced Current of 0.4 μA
? Operation at 35 kHz
? Low Output Resistance of 26 Ω
? Space Saving TSOP?6 Package

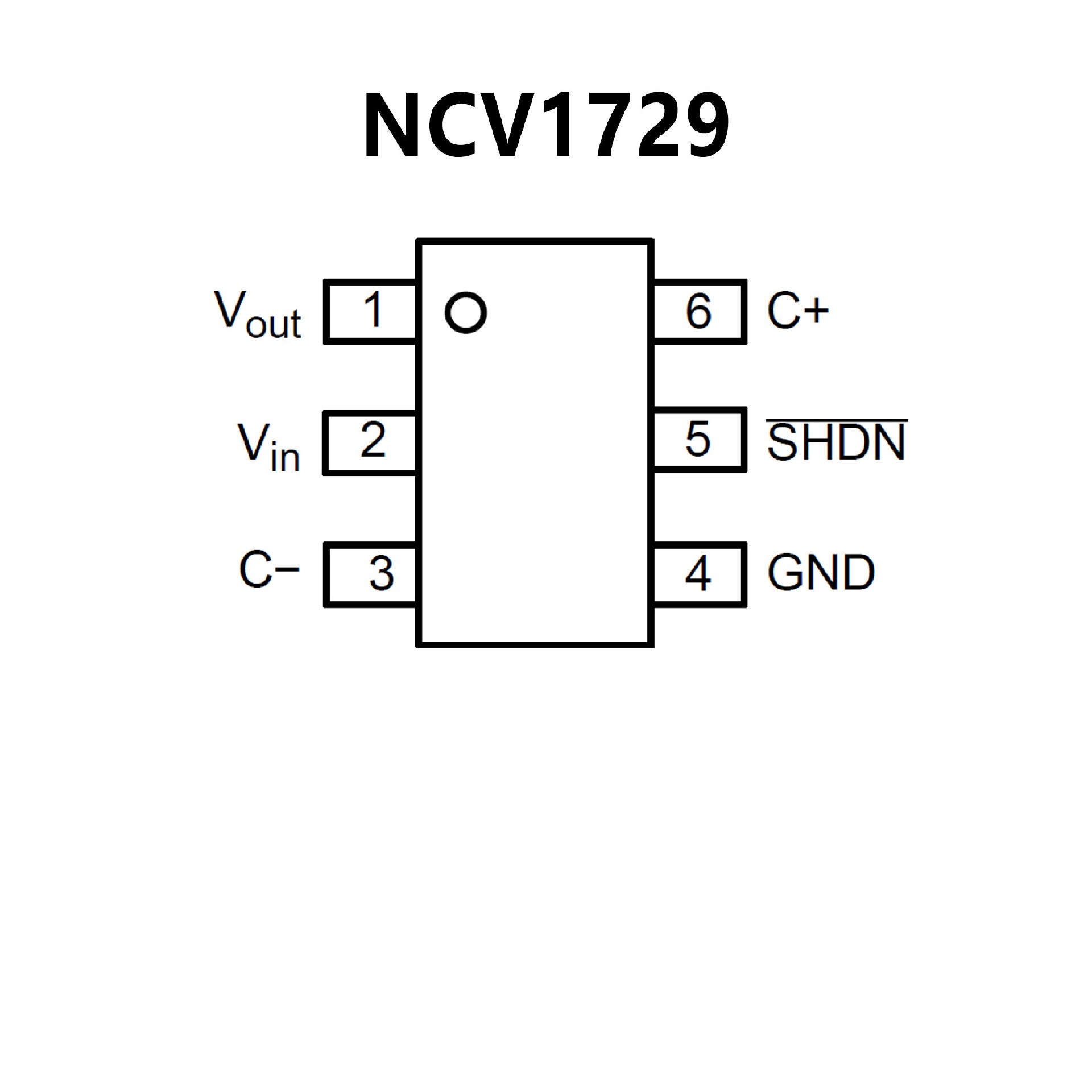

? NCV Prefix for Automotive and
Other Applications Requiring
Unique Site and Control Change
Requirements; AEC?Q100
Qualified and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant
