3A Low Loss Power Distribution Switch, SGM2594C Replace SY6288E2.
SGM2594C.pdf優(yōu)勢替代
FEATURES
? Input Voltage: 2.5V to 5.5V
? Extremely Low Power Path Resistance: 45mΩ (typ.)
? 3A Load Current Capability
? Two Enable Polarities:
SY6288E1AAC: Active High
SY6288E2AAC: Active Low
? Over Temperature Shutdown and Automatic Retry
? Reverse Blocking (No Body Diode)
? Fault Flag (OCB) Output for Over Current and Fault
Conditions
? At Shutdown, OUT Can be Forced Higher than IN
? Built-in Soft-start
? Compact Package Minimizes the Board Space:SOT23-5
? RoHS Compliant and Halogen Free
? UL Certification NO. E491480
? CB Certification by IEC 62368-1

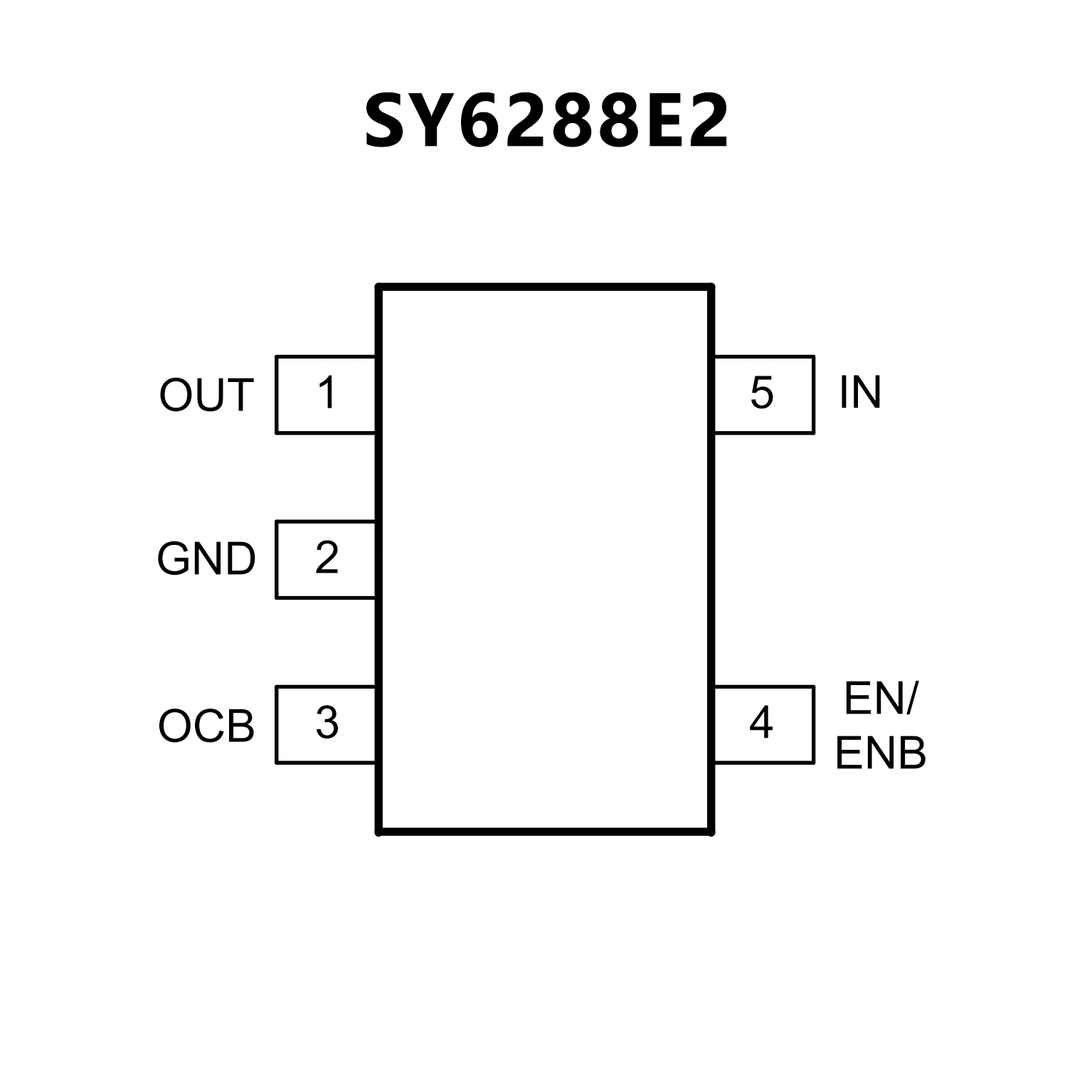

PIN CONFIGUTION
