Low Loss Power Distribution Switch, SGM2594A Replace SY6288AAAC.
SGM2594A.pdf優(yōu)勢替代
FEATURES
? Distribution Voltages: 2.5V to 5.5V
? Over Temperature Shutdown and Automatic Retry
? Reverse Blocking (No Body Diode)
? At Shutdown, OUT can be Forced Higher than IN
? Fault Flag (OCB) Output if Over Current, Thermal
Shut Down or Reverse Blocking Happens
? Automatic Output Discharge at Shutdown
o SY6288A1: No Output Discharge Function
o Others: Auto Output Discharge Function
? Built-in Soft-start
? 0.4ms Rise Time
? RoHS Compliant and Halogen Free
? Two Enable Polarities and Three Current Levels
o SY6288A: Active High/0.6A
o SY6288A1: Active High/0.6A
o SY6288B: Active Low/0.6A
o SY6288C: Active High/2A
o SY6288C1: Active High/1.5A
o SY6288C30: Active High/2A
o SY6288C4: Active High/2A
o SY6288C5: Active High/2.5A
o SY6288D: Active Low/2A
o SY6288D1: Active Low/1.5A
o SY6288D5: Active Low/2.5A
o SY6288D30:Active Low/2A
? Compact Packages Minimize the Board Space:
SOT23-5, SO8, MSOP8
? TUV Certification NO. R 50188769
? UL Certification NO. E491480
? CB Certification by IEC 62368-1

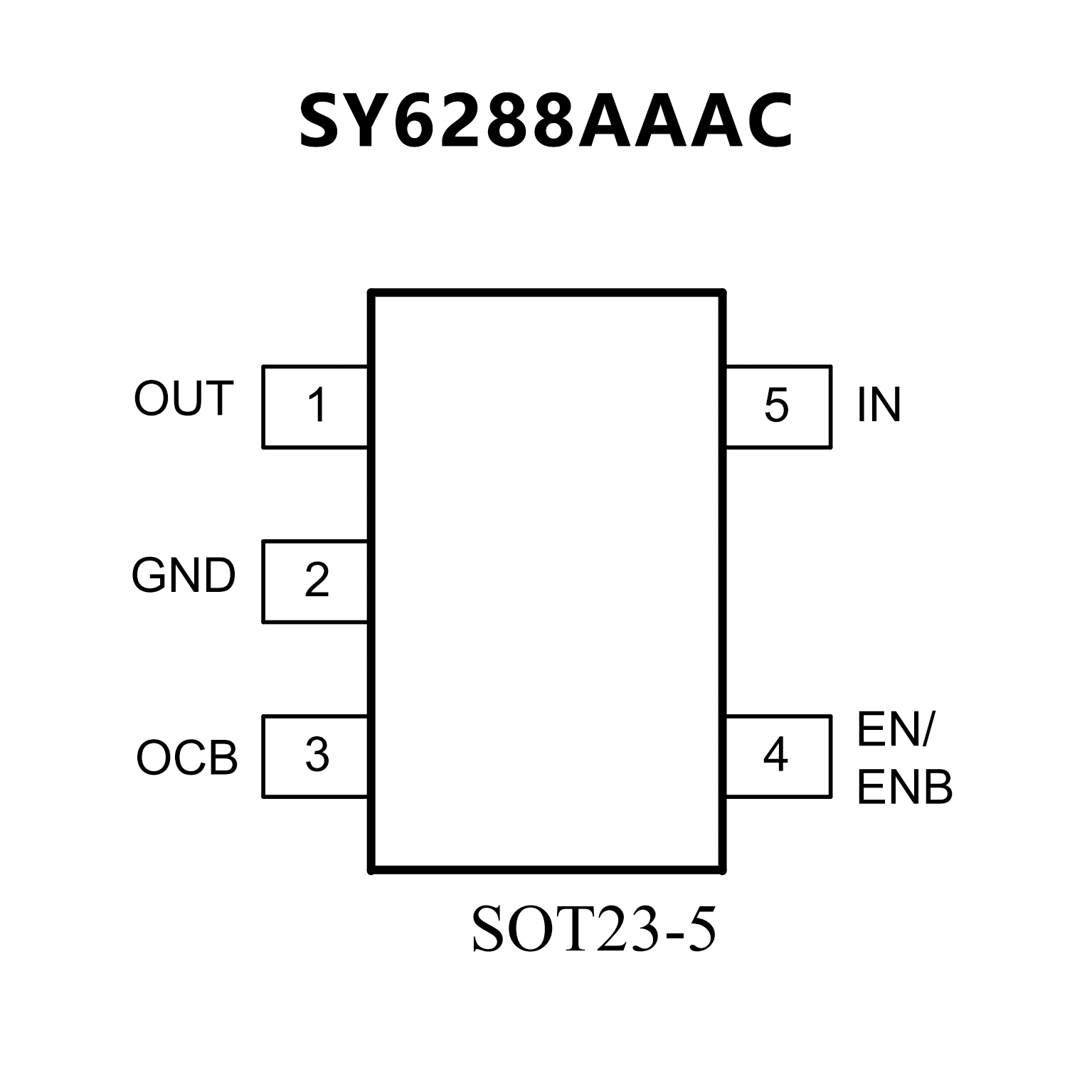

PIN CONFIGUTION
