5.5V, 4A, 16mΩ RON Load Switch with Reverse Current Protection,SGM2564 Replace WS4623.
SGM2564
SGM2564.pdf
SGM2564.pdfFEATURES
? Input Voltage Range: 1V to 5.5V
? Maximum Continuous Current: 4A
? Low On-Resistance
RON = 16mΩ at VIN = 3.3V
RON = 16mΩ at VIN = 1.8V
? Low Shutdown Current: 180nA (TYP)
? Reverse Current Protection When Disabled
? Low Threshold 1.2V GPIO Control Input
? Bidirectional Power Supply for Power Zone Application
? Controlled Slew Rate to Avoid Inrush Current
? Quick Output Discharge
? Available in a Green WLCSP-1.45×0.95-6B Package

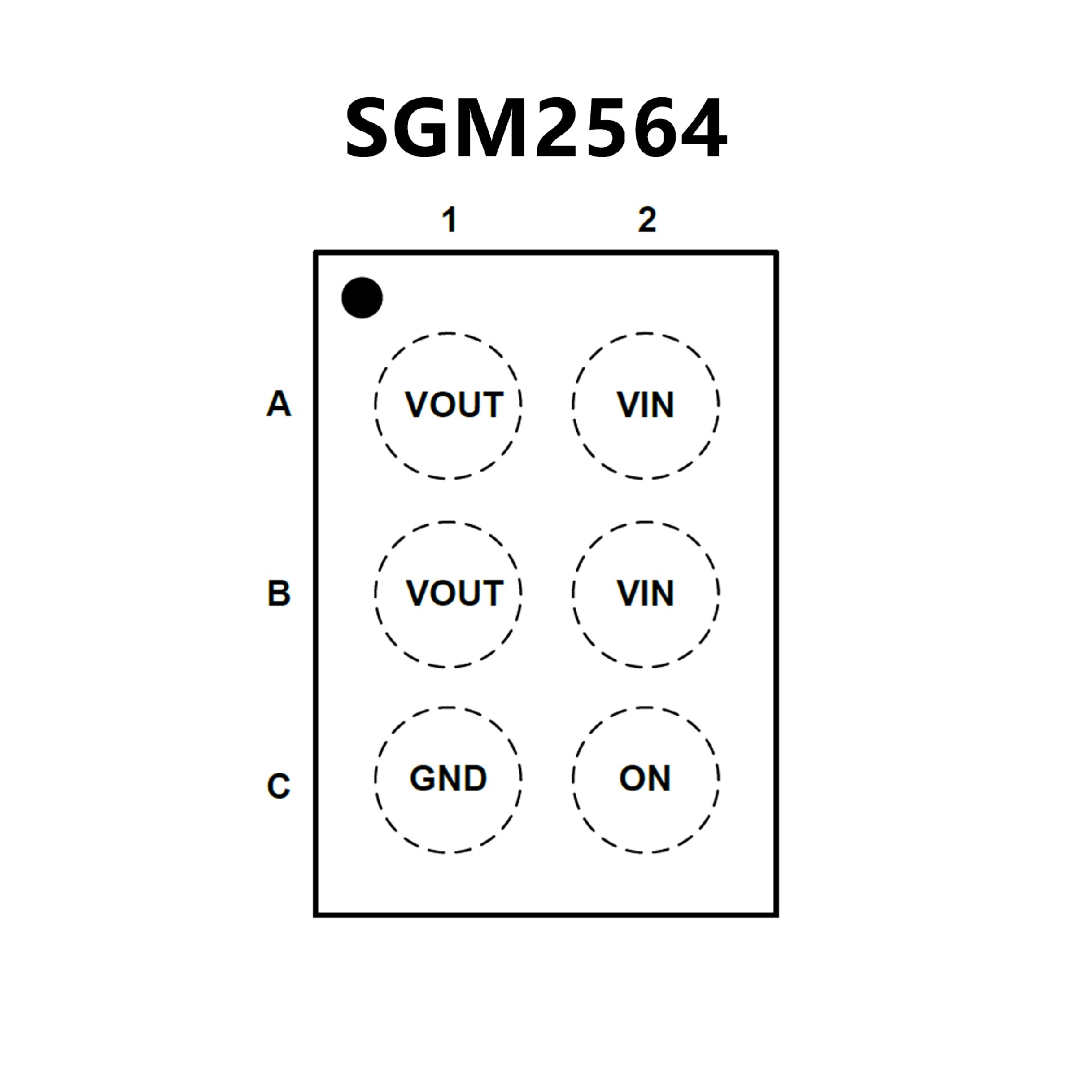

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Input Voltage Range :1.2V~5.5V
? Main switch Ron : 19mΩ @ 4.5V
? Maximum Output current : 3A.
? Quiescent current : 300nA @ Typ
? Standby current : 100nA @ Typ
? Recommend capacitor : 1μF
? Active High EN Pin
? CSP-6L 1 x 1.5 mm

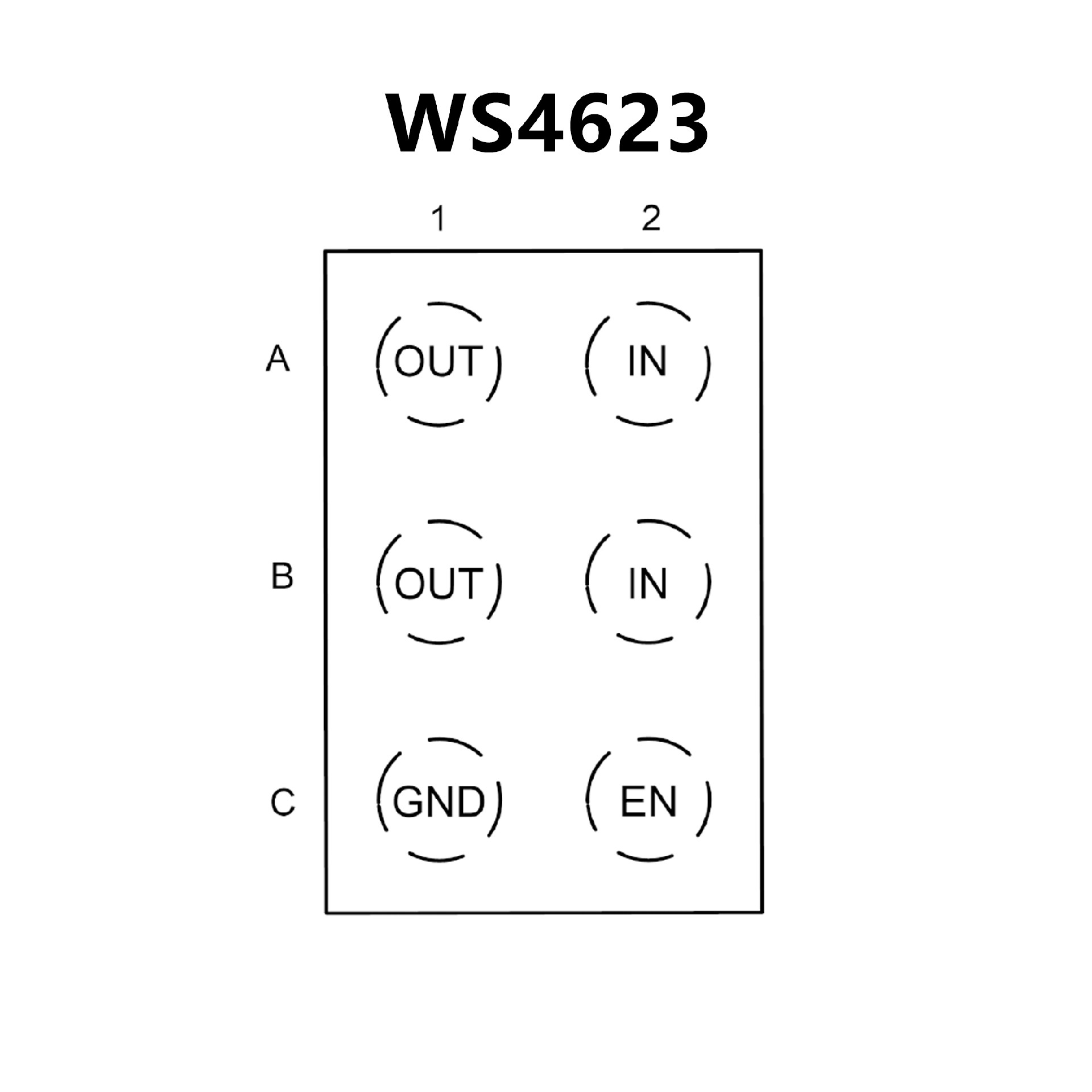

PIN CONFIGUTION
