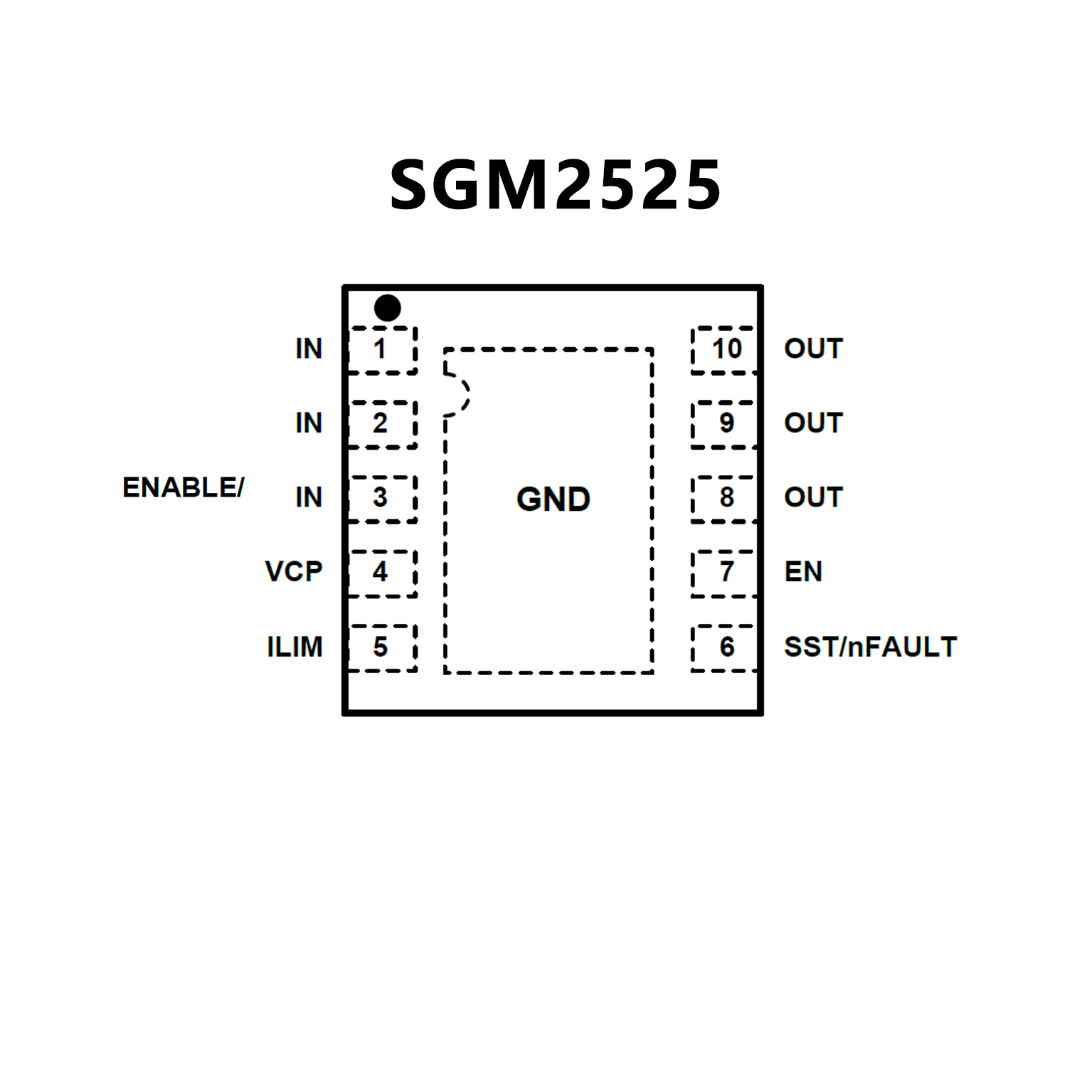

SGM2525.pdf? Wide Input Voltage Range from 4.5V to
24V with Surge up to 30V
? Extremely Low RDS(ON) for the Integrated
Protection Switch: 23mΩ
? Programmable Soft-Start Time
? Programmable Current Limit 5A MAX
? Thermal Shutdown Protection
SGM2525: Latched-Off SGM2526: Auto-Recovery
? Selectable Input Range and Clamping Output
Voltage Threshold
? Enable Interface Pin
? -40℃ to +85℃ Operating Temperature Range
? Available in the Green TDFN-3×3-10L Package

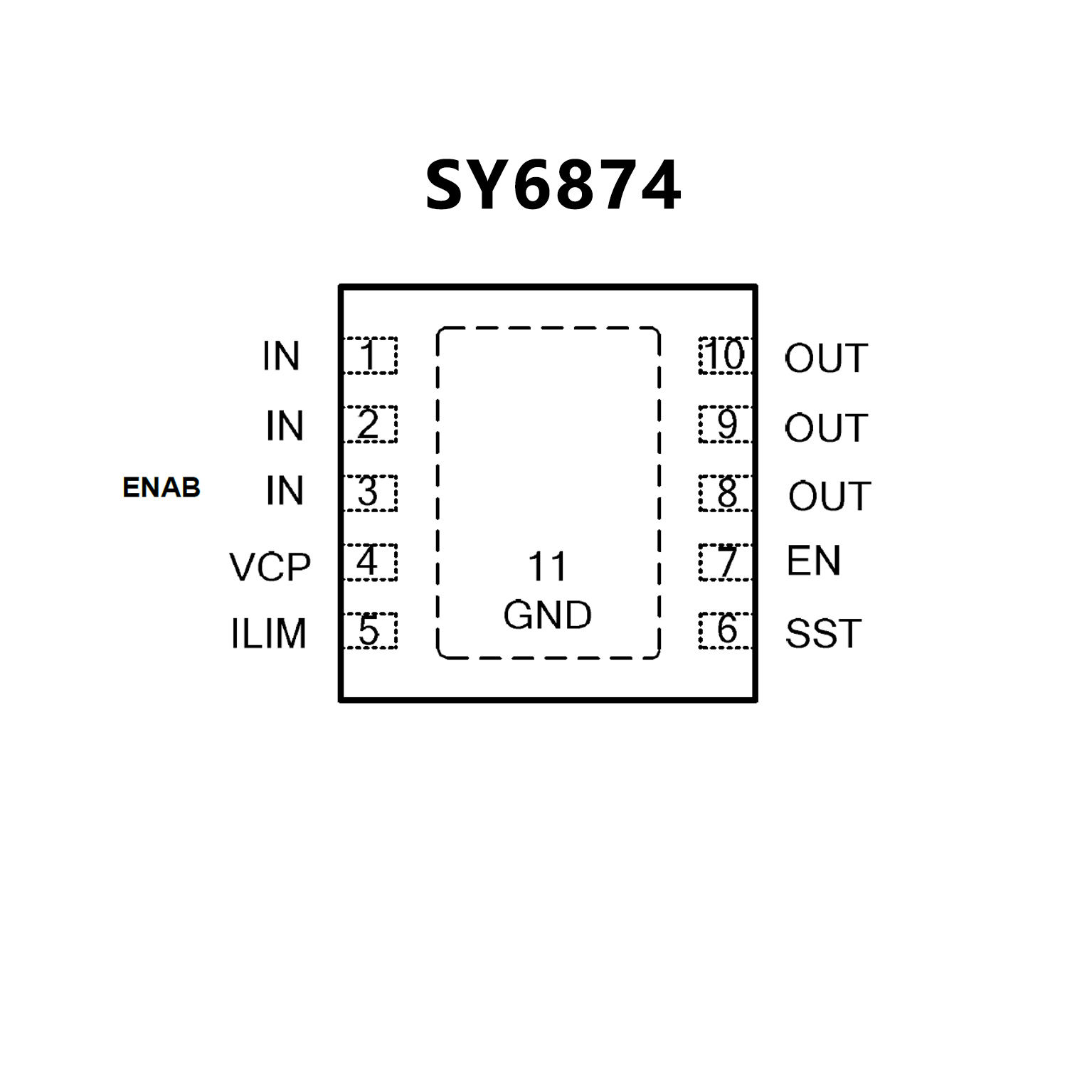

? Wide Input Voltage Range from 2.5V to
15V with surge up to 30V
? Extremely Low RDS(ON) for the Integrated
Protection Switch: 50 m?
? Programmable Soft-Start Time
? Programmable Current Limit up to 4A
? Short-circuit Protection
? Selectable Input Range and Clamping
Output Voltage Threshold.
? Enable Interface Pin
? Thermal Shutdown Protection & Auto Recovery
? RoHS Compliant and Halogen Free
? Compact package: DFN3X3-10
