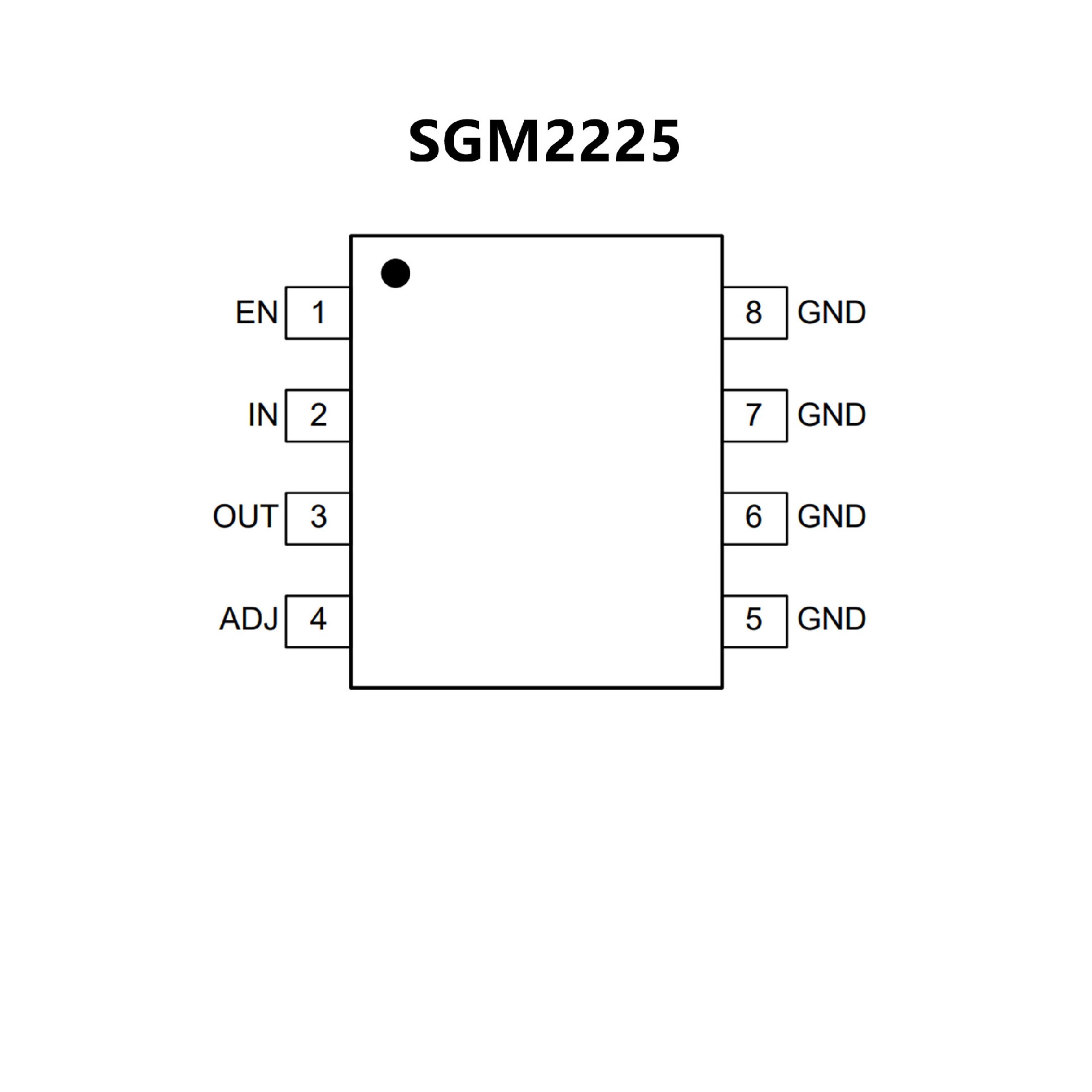

SGM2225.pdf? Wide Operating Input Voltage Range: 3.6V to 36V
? Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
? Adjustable Output from 1.8V to 15V
? Output Voltage Accuracy: ±1.5% at +25℃
? Low Dropout Voltage: 450mV (TYP) at 800mA
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages

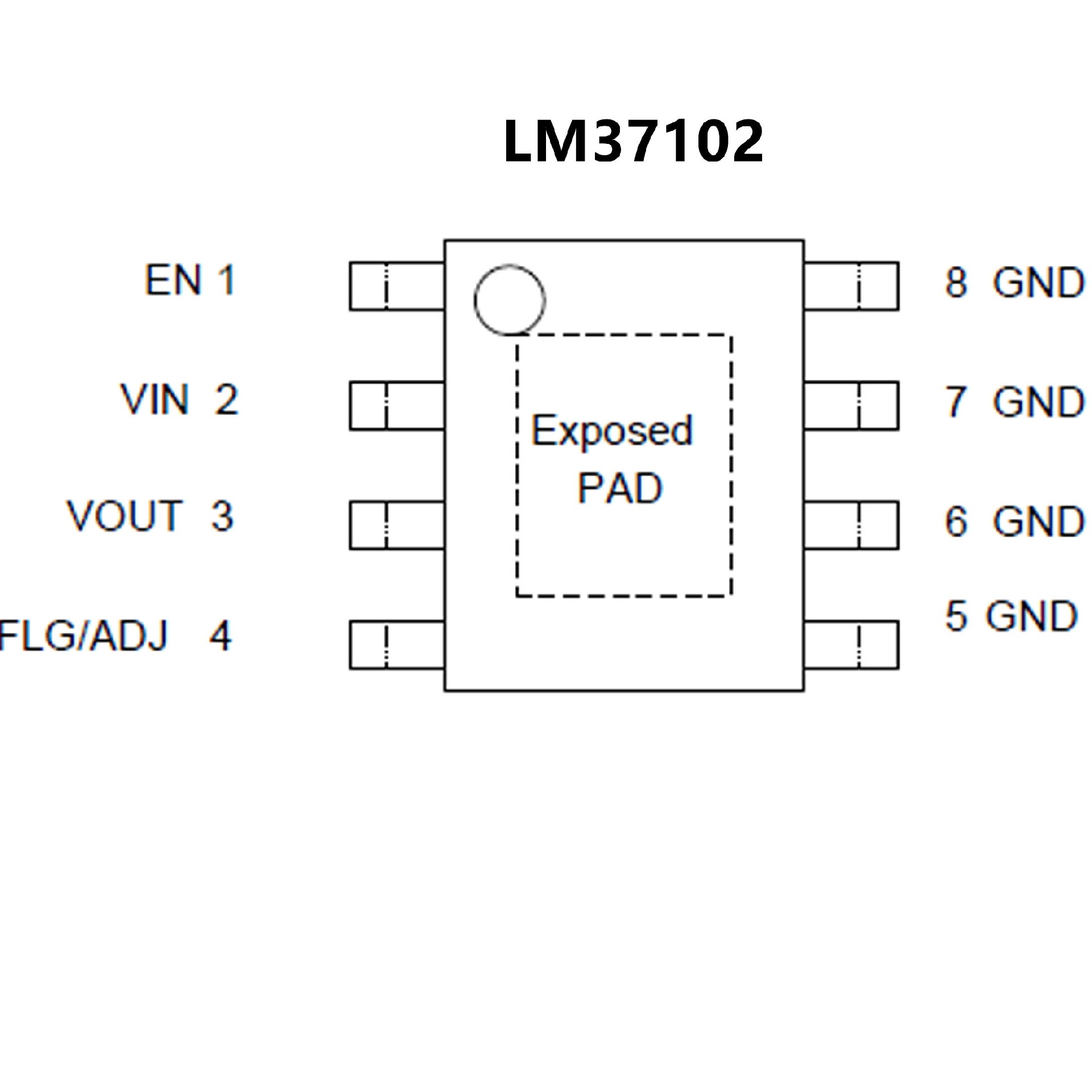

? Fixed and adjustable output voltages to 1.24V
? Stable with MLCC and Ceramic Capacitors
? 500mV typical dropout at 1AIdeal for 3.0V to 2.5V
conversionIdeal for 2.5V to 1.8V or 1.5V conversion
? 1A minimum guaranteed output current
? 1% initial accuracy
? Low ground current
? Current limiting and thermal shutdown
? Reversed-battery protection
? Reversed-leakage protection
? Fast transient response
? Moisture Sensitivity Level 3
