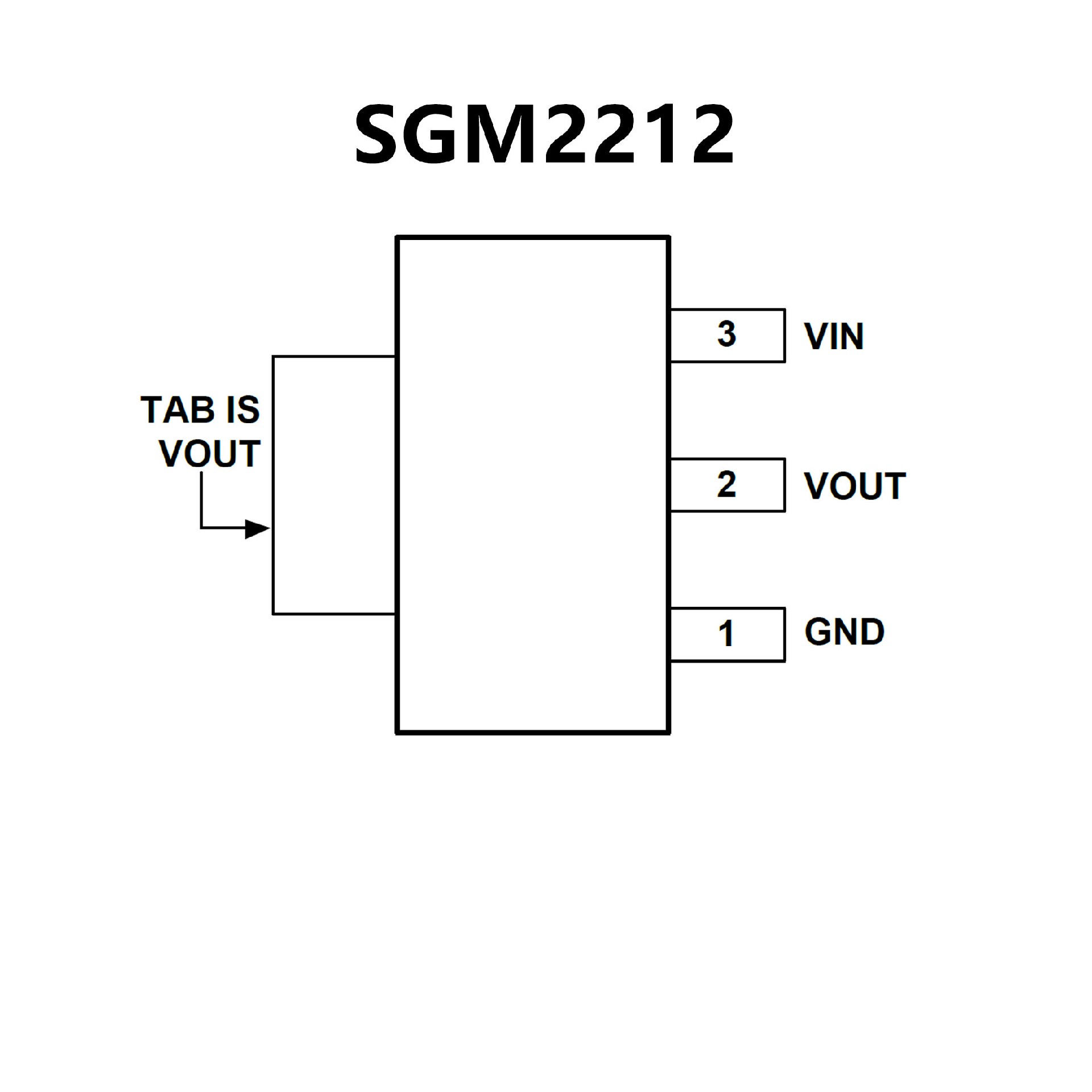

SGM2212.pdf? Input Voltage Range: 2.7V to 20V
? Output Current: 800mA
? Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
? Adjustable Output Voltage Range: 1.25V to 15V
? Output Voltage Accuracy: ±1% at +25℃
? Line Regulation: 0.012% (MAX)
? Load Regulation: 0.4% (MAX)
? Stable with Small Case Size Ceramic Capacitors
? Output Current Limit
? Thermal Shutdown Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TO-252-2, TO-263-3,SOT-223-3
and TDFN-3×3-8L Packages

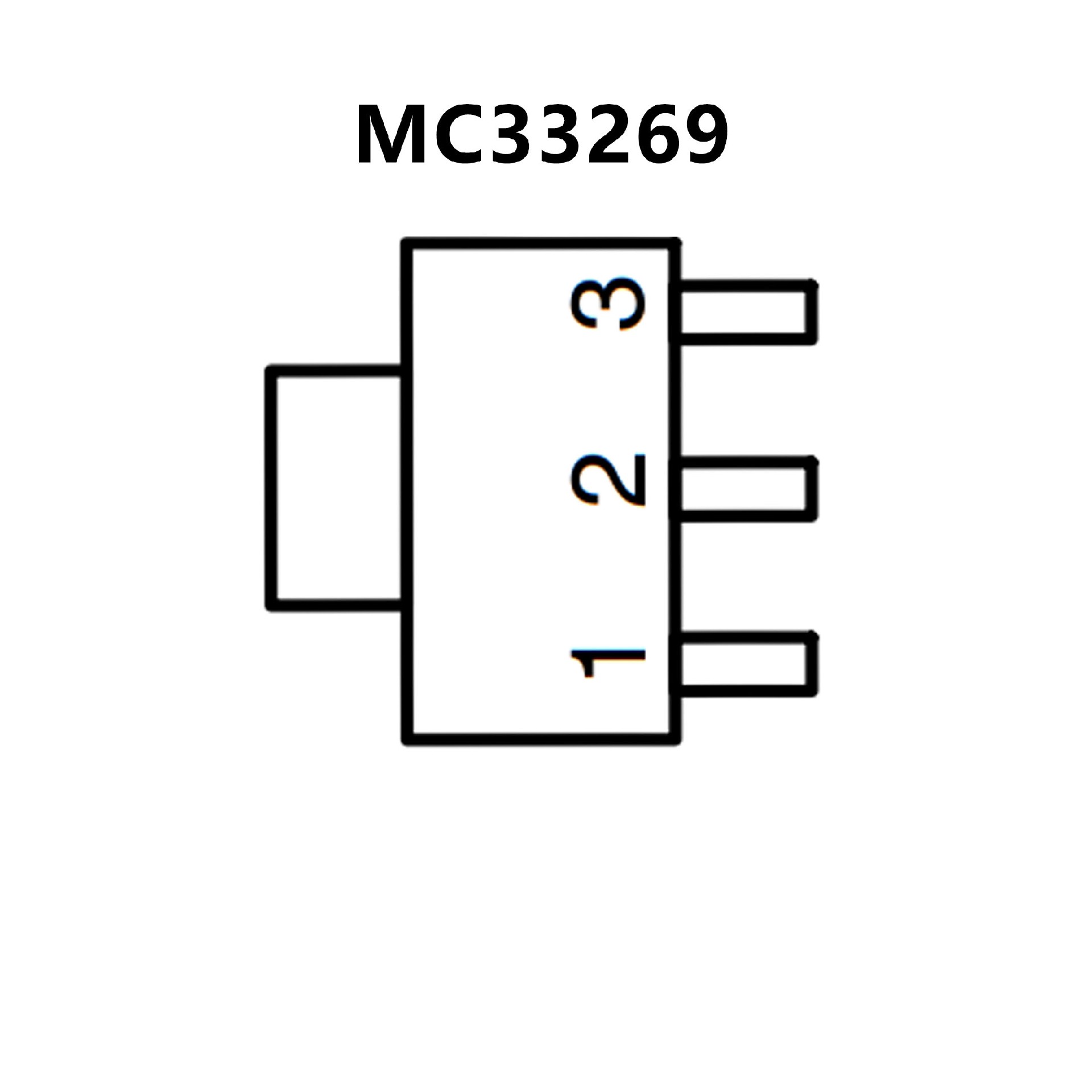

? 3.3 V, 3.5 V, 5.0 V, 12 V and Adjustable Versions
2.85 V version available as MC34268
? Space Saving DPAK, SO?8 and SOT?223 Power Packages
? 1.0 V Dropout
? Output Current in Excess of 800 mA
? Thermal Protection
? Short Circuit Protection
? Output Trimmed to 1.0% Tolerance
? NCV Prefix for Automotive and Other
Applications Requiring
Unique Site and Control Change
Requirements; AEC?Q100
Qualified and PPAP Capable
? These are Pb?Free Devices
