800mA, High Voltage, Low Noise LDO Regulator in TO263, SGM2205 Replace SPX29300.
SGM2205
SGM2205.pdf
SGM2205.pdfFEATURES
? 2.5V to 20V Wide Input Voltage Range
? Output Voltage Range: 1.8V to 15V
? Guaranteed 800mA Output over the Full Operating
Temperature Range
? Low 480mV (TYP) Dropout Voltage at Full Load
? Extremely Tight Load and Line Regulation
? Fast Load Transient
? Low Temperature Coefficient
? Output Shorted to GND Protection
? Current and Thermal Limiting
? No-Load Stability
? Ultra Low Noise Capability

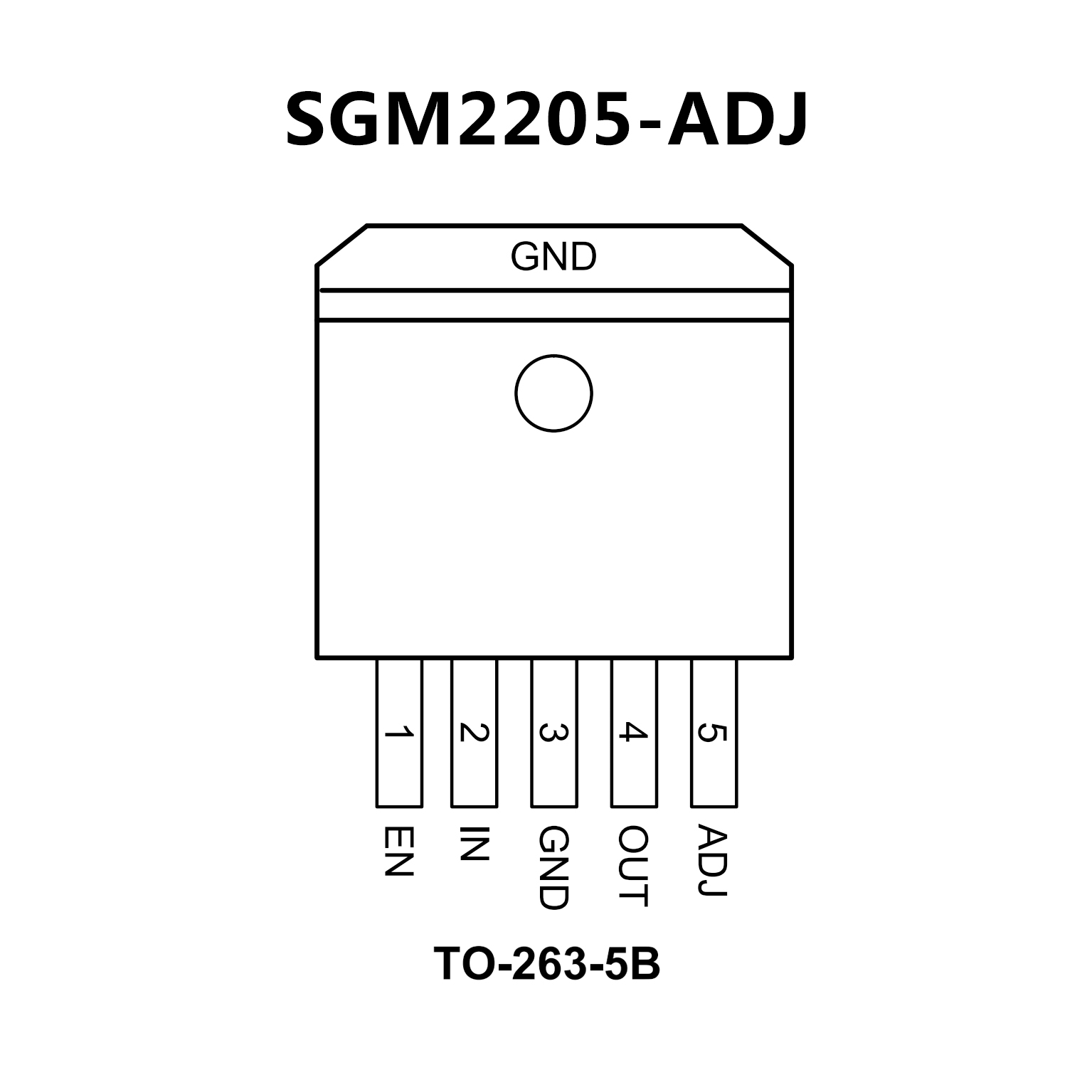

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 3A Guaranteed Output Current
? Low Dropout Voltage of 600mV @ 3A
? Adjustable Output down to 1.25V
? 1% Output Accuracy
? Tight Load and Line Regulation
? Fast Transient Response
? Reverse Battery Protection
? Zero Current Shutdown (SPX29301/02)
? Power Good Flag (SPX29301)
? Lead Free 3-Pin TO-263 and 5-pin TO-
263 Packages

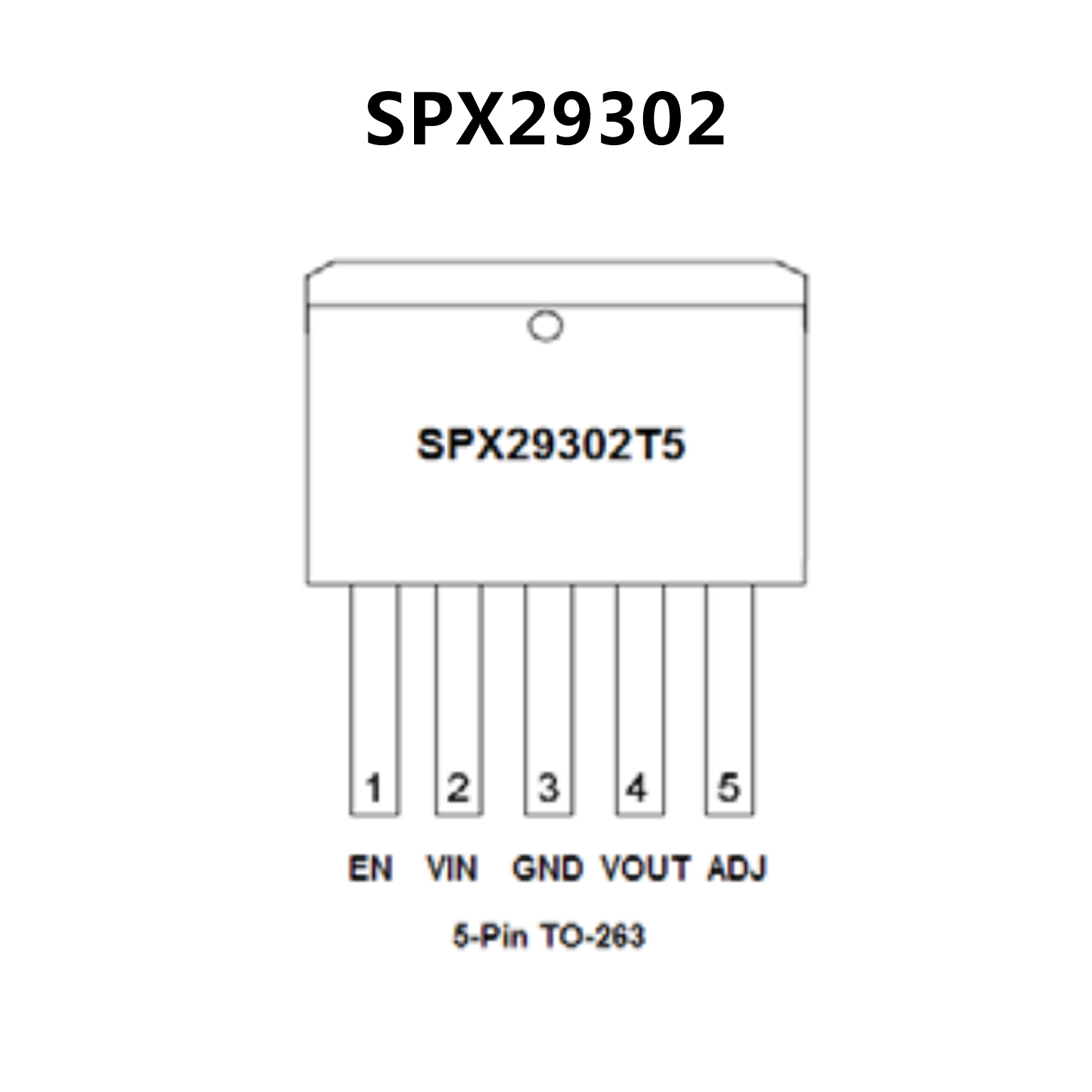

PIN CONFIGUTION
