16V LDO，50mA，SOT23-5,SGM2202 Replace TPS76050DBVR.
SGM2202
SGM2202.pdf
SGM2202.pdfFEATURES
? Low Power Consumption
? 150mA Nominal Output Current
? Low Dropout Voltage
? High PSRR
? Low Temperature Coefficient
? High Input Voltage (up to 36V)
? Output Voltage Accuracy: ±1%
? Fixed Outputs of 3.0V, 3.3V and 5.0V
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 Package

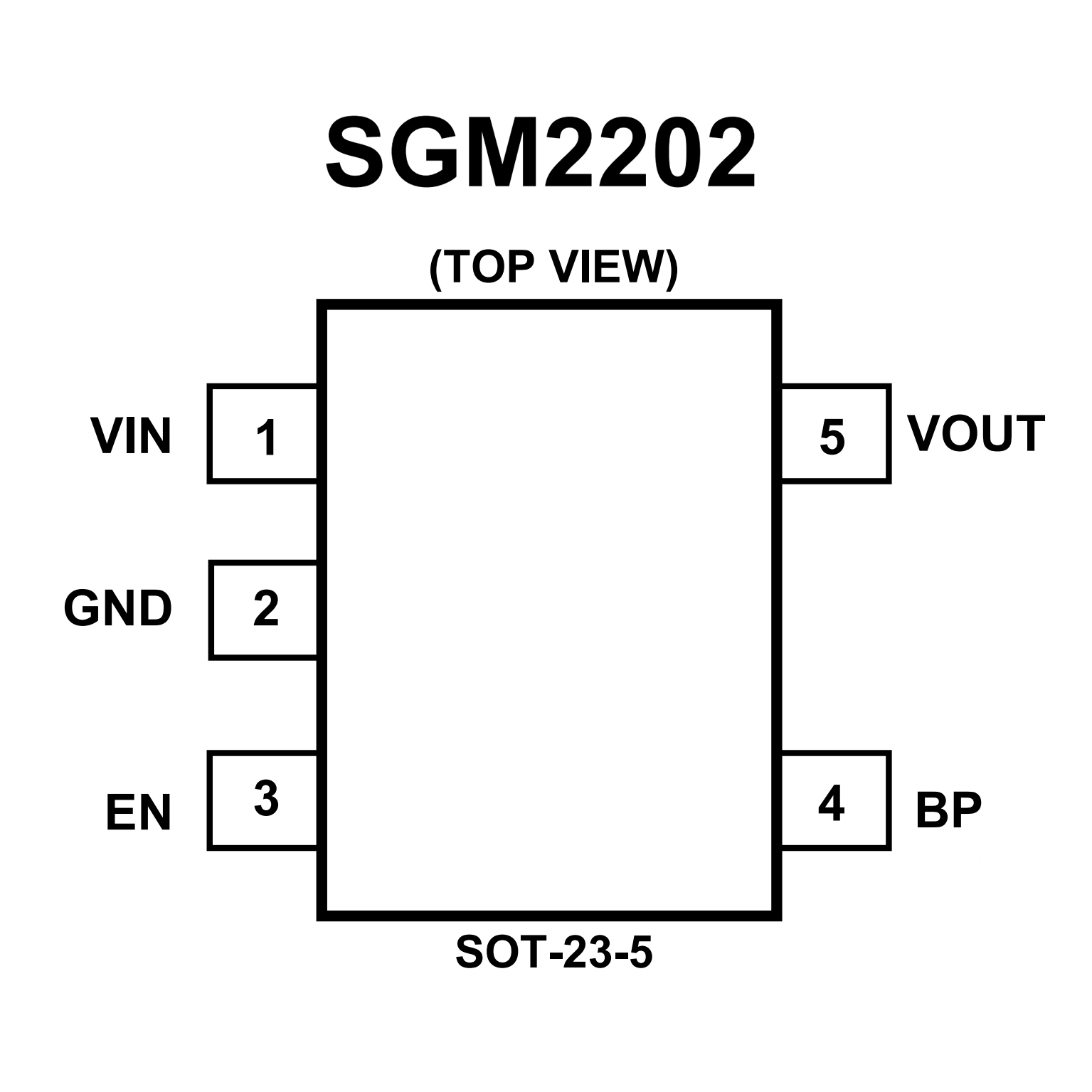

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 50-mA Low-Dropout Regulator
? Fixed Output Voltage Options: 5 V, 3.8 V,3.3 V,3.2 V, and 3 v
? Dropout Typically 120 mV at 50 mA
? Thermal Protection
?Less Than 1-uA Quiescent Current in Shutdown
? -40C to 125°C Operating JunctionTemperature Range
? 5-Pin SOT-23 Package
? ESD Protection Verified to 1.5 kV HumanBody Model
(HBM) per MIL-STD-883C

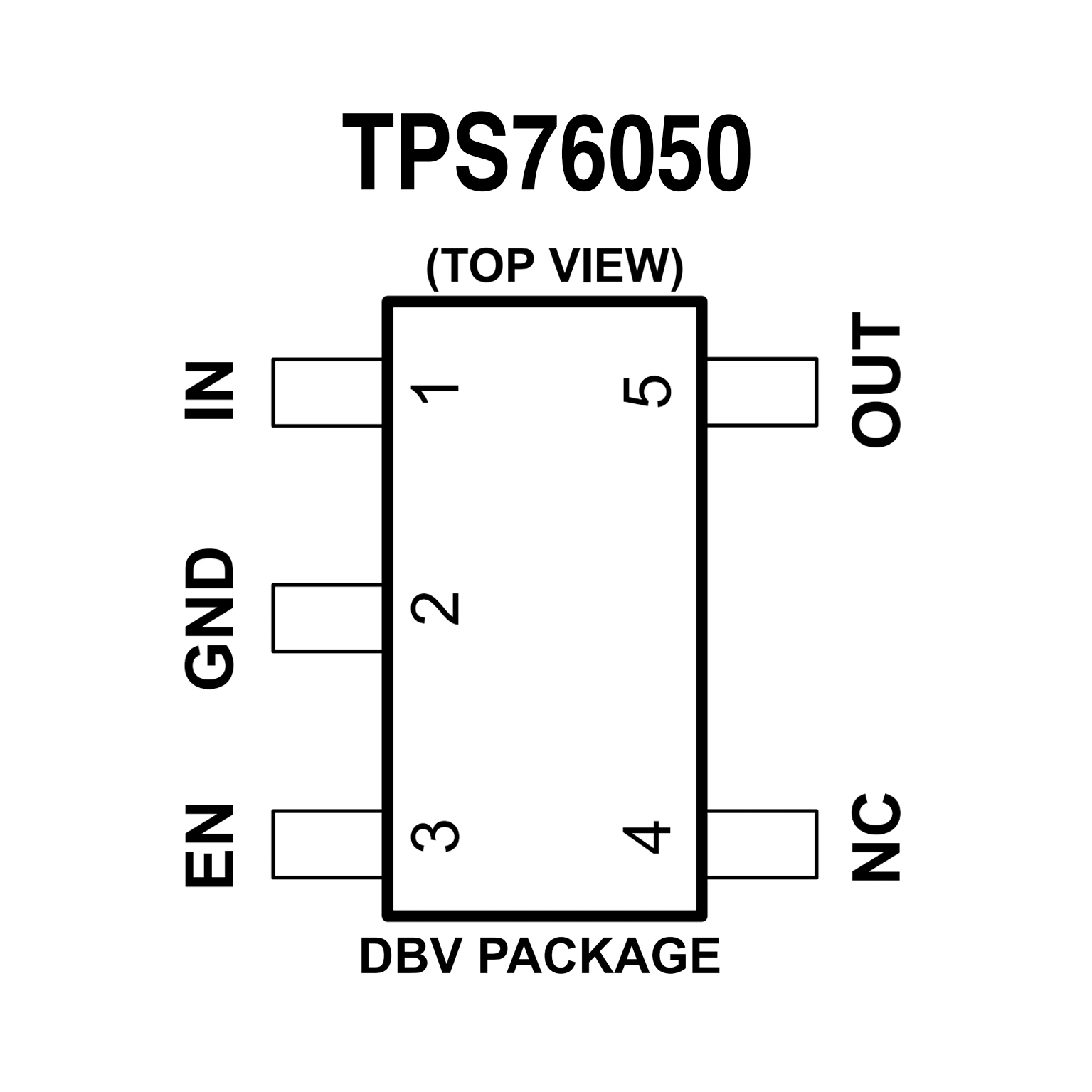

PIN CONFIGUTION
