SGM2086Q.pdf? Input Voltage Range (Maximum Rating) 1.4V to 5.25V (6.0V)
? Operating Temperature ?40°C to 105°C
? Supply Current Typ. 80 μA
? Standby Current Typ. 0.1 μA
? Dropout Voltage Typ. 0.23V (IOUT = 500 mA、VSET = 2.5V)
? Ripple Rejection Typ. 75 dB (f = 1 kHz)
Typ. 70 dB (f = 10 kHz)
? Output Voltage Accuracy ±0.8% (VSET ≥ 1.8 V)
? Output Voltage Temperature Coefficient Typ. ±30 ppm/°C (VSET ≥ 1.8 V)
? Feedback Voltage Accuracy 0.7±18 mV
? Feedback Voltage Temperature Coefficient Typ. ±100 ppm/°C
? Line Regulation Typ. 0.02%/V
? VIN ≥ 1.4 V, IOUT = 30 mA)

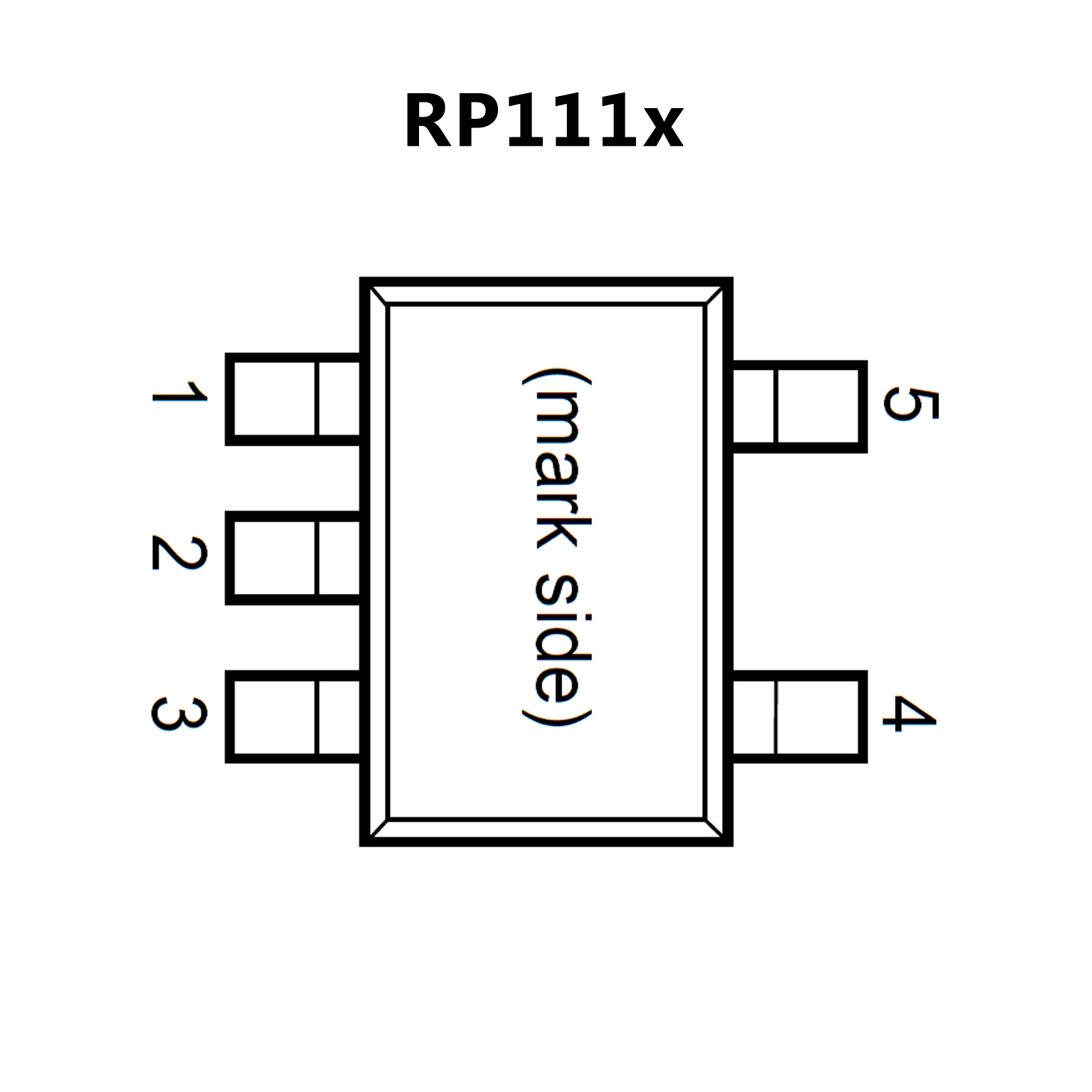

? Packages SOT-23-5, SOT-89-5, HSOP-6J
? Output Voltage Range 0.7 V, 1.1 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 2.85 V, 2.9 V, 3.0 V,3.3 V, 3.4 V
? Built-in Fold-back Protection Circuit Typ. 50 mA
? Thermal Shutdown Temperature 165°C
? Inrush Current Limit Typ. 400 mA (for 180 ?s after start-up)
? Ceramic capacitors are recommended to be used with this IC 1.0 ?F or more (Internally Fixed Output Voltage)
? Output Noise 20 x VSErms (BW = 10 Hz to 100 kHz, VSET ≥ 1.8 V)
? Input Transient Response
