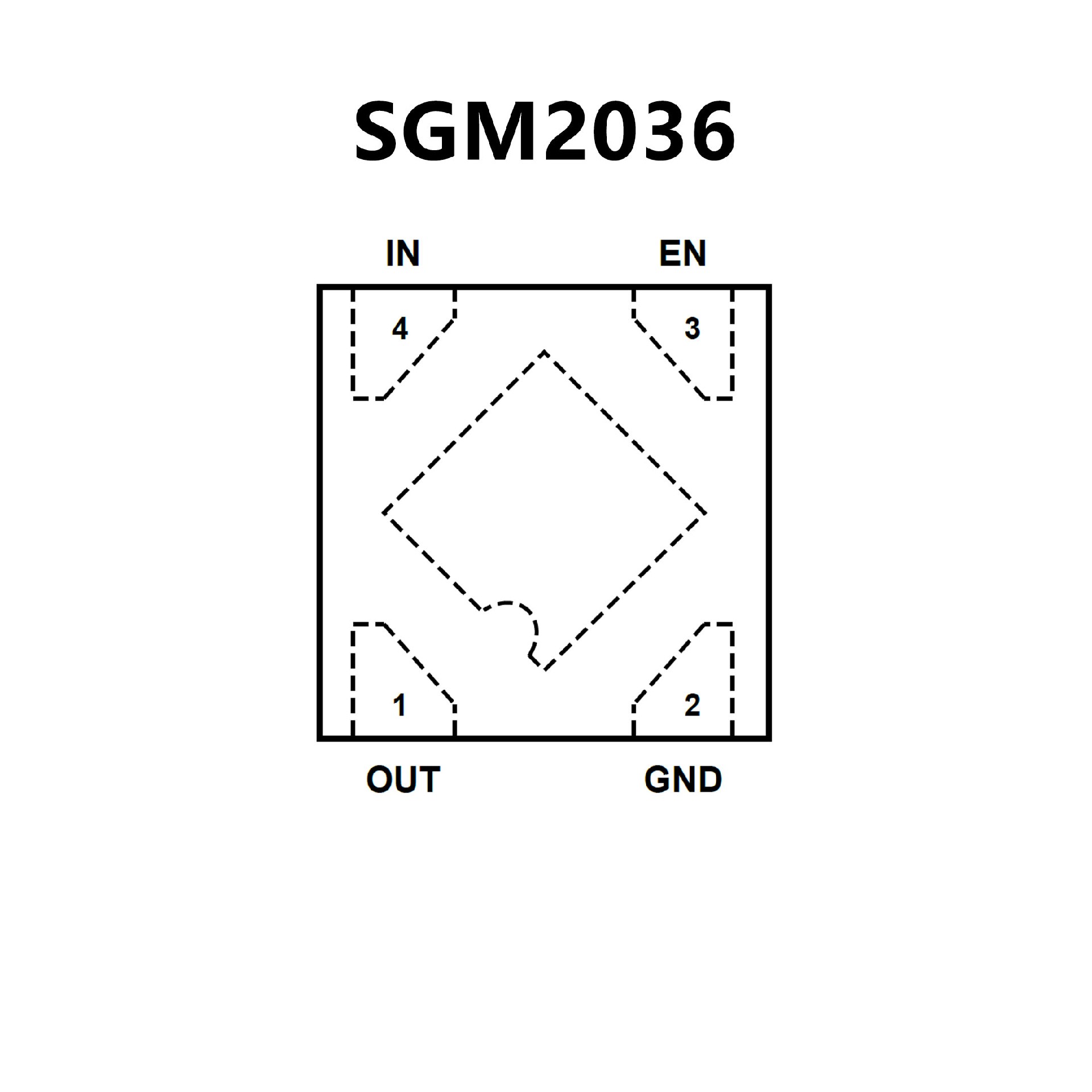

SGM2036.pdf? Low Dropout Voltage
? Thermal Overload Protection
? Built-In Fold Back Protection Circuit
? 20μA Low Supply Current
? 10nA Logic-Controlled Shutdown
? 1.6V to 5.5V Input Voltage Range
? Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V,
1.1V,1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V,
2.1V, 2.2V,2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V,
2.9V, 3.0V, 3.1V,3.3V, 3.6V, 4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? Short Auto-Discharge Function
? 300mA Output Current
? High Output Voltage Accuracy
? Short Start-Up Time
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTDFN-1×1-4L,
SOT-23-5 andSC70-5 Packages

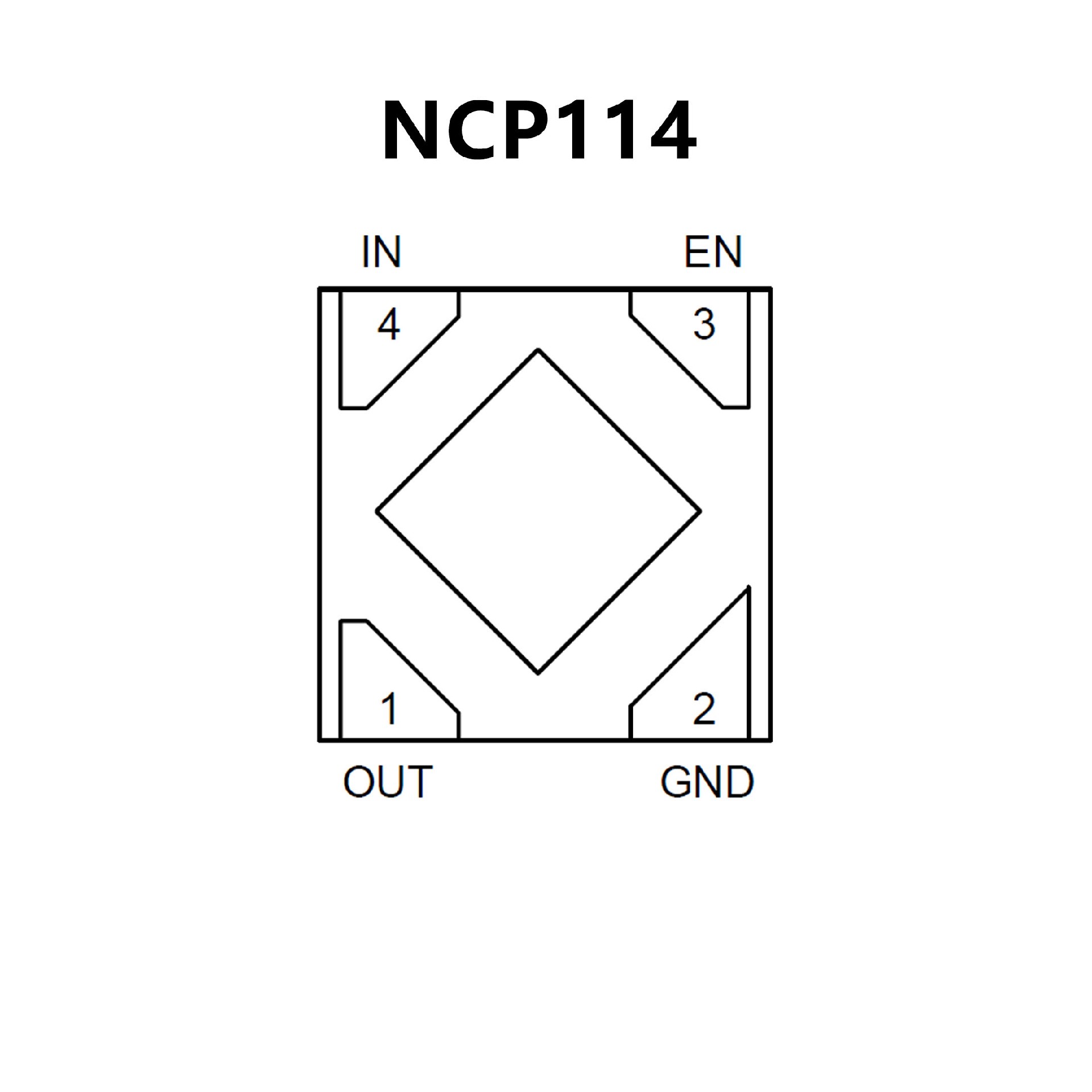

? Operating Input Voltage Range: 1.7 V to 5.5 V
? Available in Fixed Voltage Options: 0.75 V
to 3.6 V Contact Factory for Other Voltage Options
? Very Low Quiescent Current of Typ. 50μA
? Standby Current Consumption: Typ. 0.1μA
? Low Dropout: 135 mV Typical at 300 mA
? ±1% Accuracy at Room Temperature
? High Power Supply Ripple Rejection: 75 dB at 1 kHz
? Thermal Shutdown and Current Limit Protections
? Stable with a 1μF Ceramic Output Capacitor
? Available in UDFN and TSOP Packages
? These are Pb?Free Devices
