300mA, Low Power, Low Dropout, RF Linear Regulator,SGM2036-Replace-BL9198-33BAP.
SGM2036
SGM2036.pdf
SGM2036.pdfFEATURES
? Low Dropout Voltage
? Thermal Overload Protection
? Built-In Fold Back Protection Circuit
? 20μA Low Supply Current
? 10nA Logic-Controlled Shutdown
? 1.6V to 5.5V Input Voltage Range
? Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V, 1.1V,
1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V, 2.2V,
2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V,
3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? Short Auto-Discharge Function
? 300mA Output Current
? High Output Voltage Accuracy
? Short Start-Up Time
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTDFN-1×1-4L, SOT-23-5 and
SC70-5 Packages

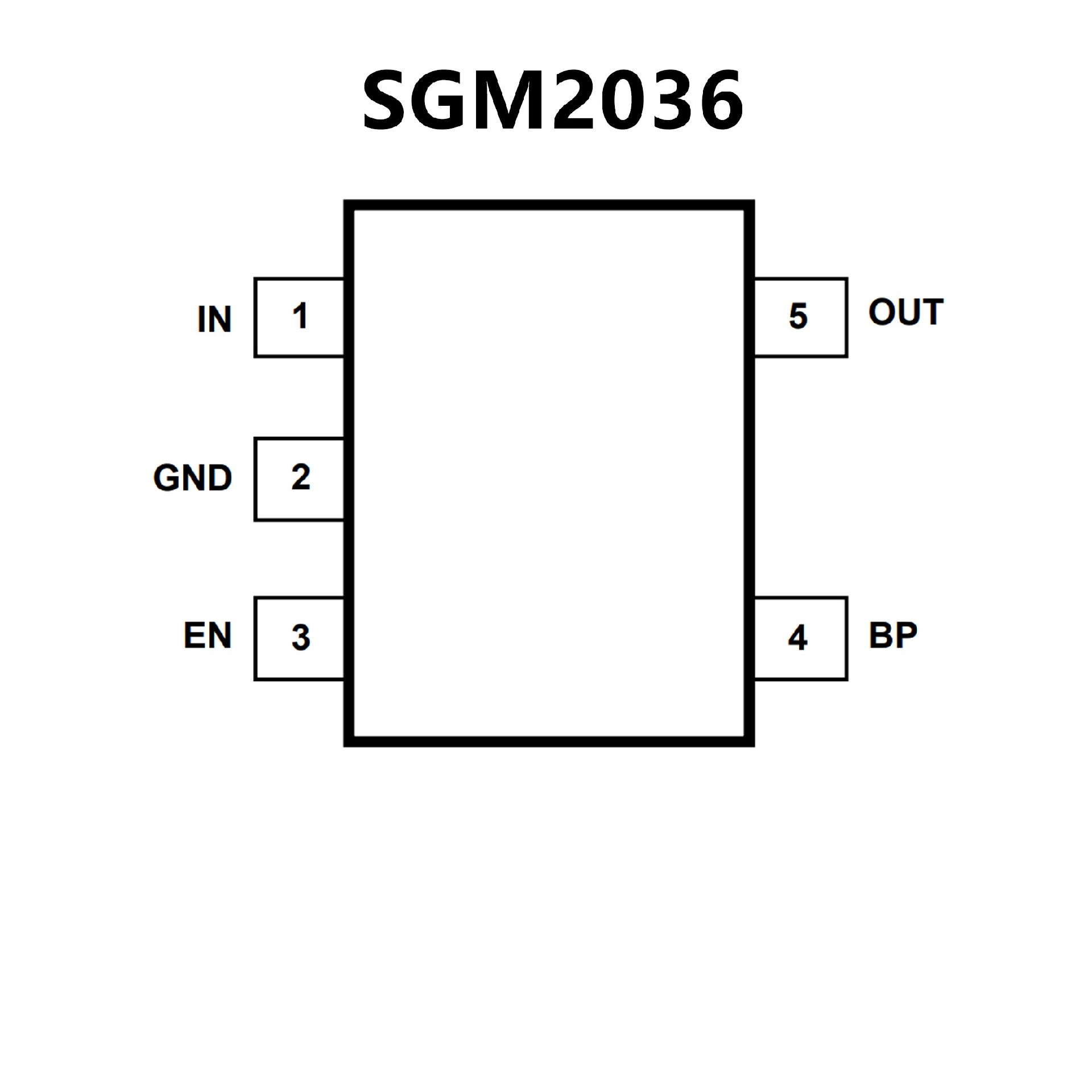

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Ultra-low Noise for RF Application
? Ultra-Fast Response in Line/Load Transient
? <0.01μA Standby Current When Shutdown.
? Low Dropout:210mV@300mA
? Wide Operating Voltage Ranges:2V to 6V
? TTL-logic-Controlled Shutdown Input
? Low Temperature Coefficient
? Current Limiting Protection
? Thermal Shutdown Protection
? Only 1μF Output Capacitor Required for Stability
? High Power Supply Rejection Ratio
? Custom Voltage Available
? Fast output discharge
? Available in 5-Lead SOT-23 and SC-70 Package
? Hand-Held Instruments
? PCMCIA Cards
? MP3/MP4/MP5 Players
? Portable Information Appliances

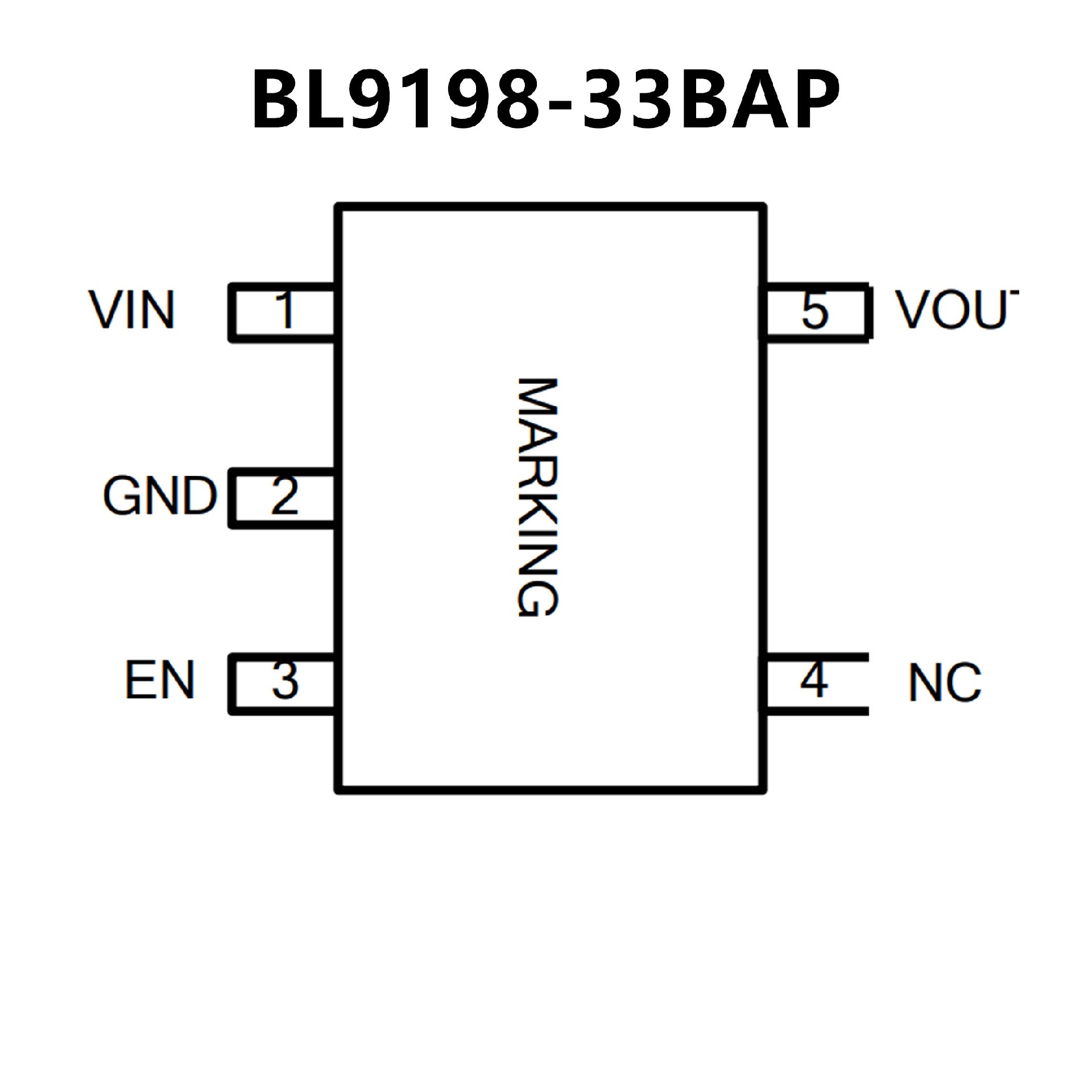

PIN CONFIGUTION
