250mA, Ultra-Low Noise and High PSRRLDO Regulators for RF and Analog Circuits,SGM2033 Replace RP130N331.
SGM2033-3.3XN5G
SGM2033-3.3XN5G.pdf
SGM2033-3.3XN5G.pdfFEATURES
? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when
VOUT = 1.8V(SOT-23-5)
145mV (TYP) at 250mA when
VOUT = 1.8V(UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size CeramicCapacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and
UTDFN-1×1-4ALPackages

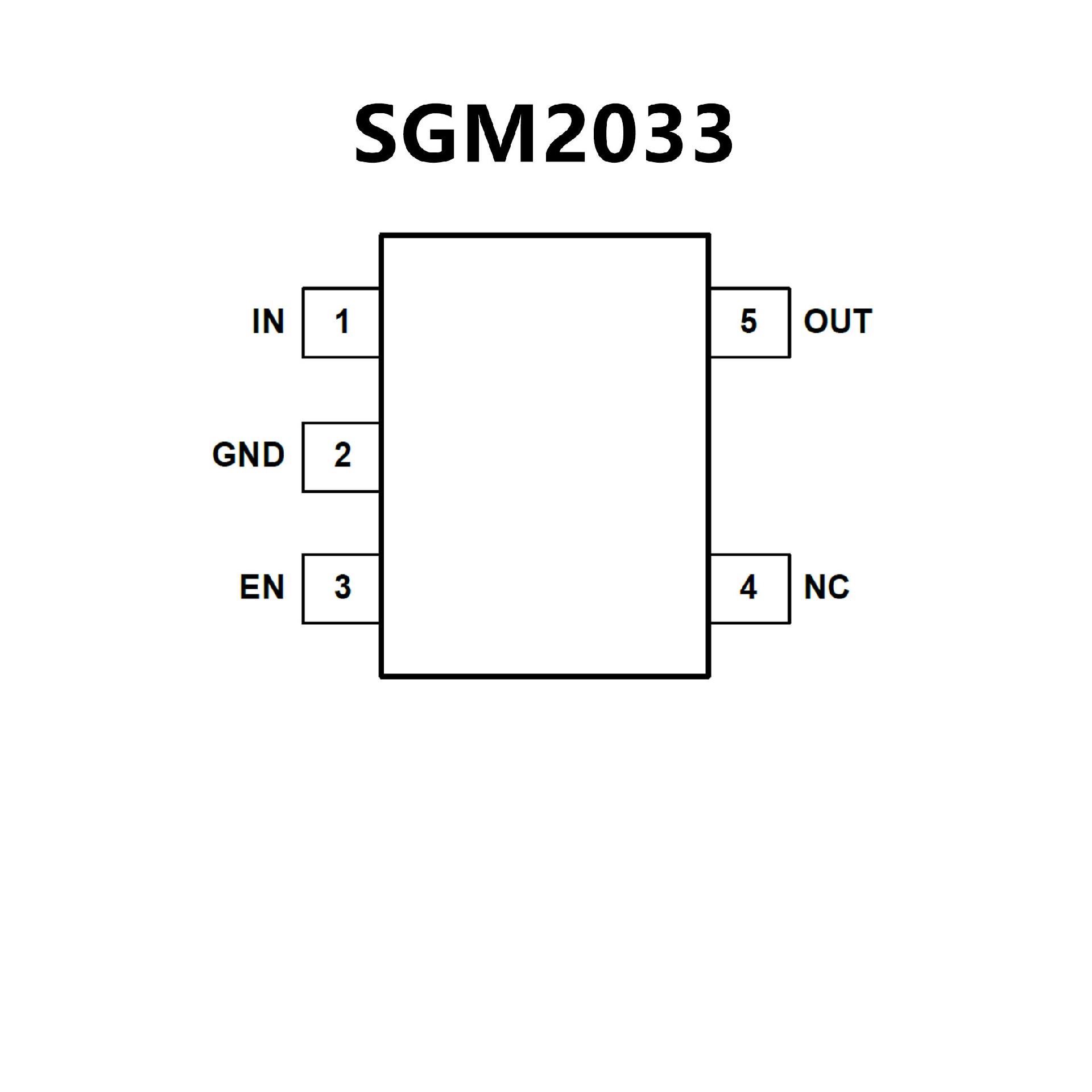

PIN CONFIGUTION
優(yōu)勢(shì)替代
