Low Noise Amplifier for GNSS, SGM13001C Replace MXDLN16G.
SGM13001C
SGM13001C.pdf
SGM13001C.pdfFEATURES
? High Gain: 19.1dB at 1575.42MHz
? Low Noise Figure: 0.83dB at 1575.42MHz
? Low Operation Current: 6.4mA
? Current Less than 1μA in Power Down Mode
? Operating Frequency Range:1550MHz to 1615MHz
? Single Supply Voltage Range: 1.6V to 3.1V
? Low Cost BOM
? Lead-Free and RoHS Compliant
? Available in a Green UTDFN-1.5×1.0-6AL Package
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? High Gain: 19dB
? Low noise figure 0.6dB @ 1575.42MHz
? Low operation current 6mA & PD current
less than 1uA
? 3.5mA current under 1.2V power supply
? Single supply voltage range 1.1V to 2.85V
? Small package 1mm×1.5mm×0.75mm
? Low cost BOM
? Lead-Free and RoHS-Compliant

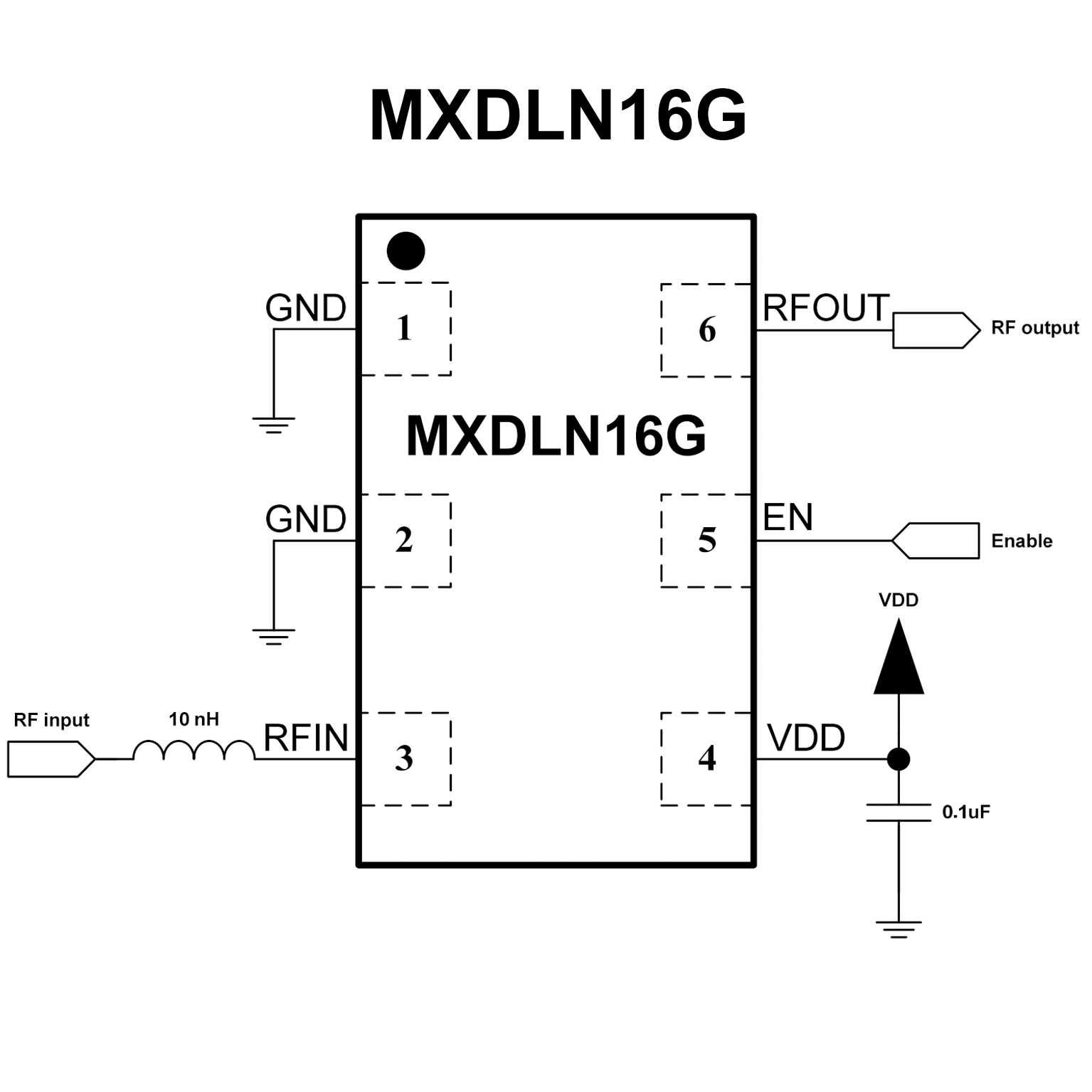

PIN CONFIGUTION
