698 - 6000 MHz High Power RFFE GSM SP4T Switch,SGM12214A Replace QM12114.
SGM12214A
SGM12214A.pdf
SGM12214A.pdfFEATURES
? Operating Frequency Range: 0.4GHz to 5.8GHz
? Low Insertion Loss
? High Isolation
? MIPI RFFE V2.1 Interface Compatible
? Input 0.1dB Compression Point: 40dBm
? Capable of 1.8V Operation
? No External DC Blocking Capacitors Required
? Available in a Green ULGA-1.1×1.1-9L Package

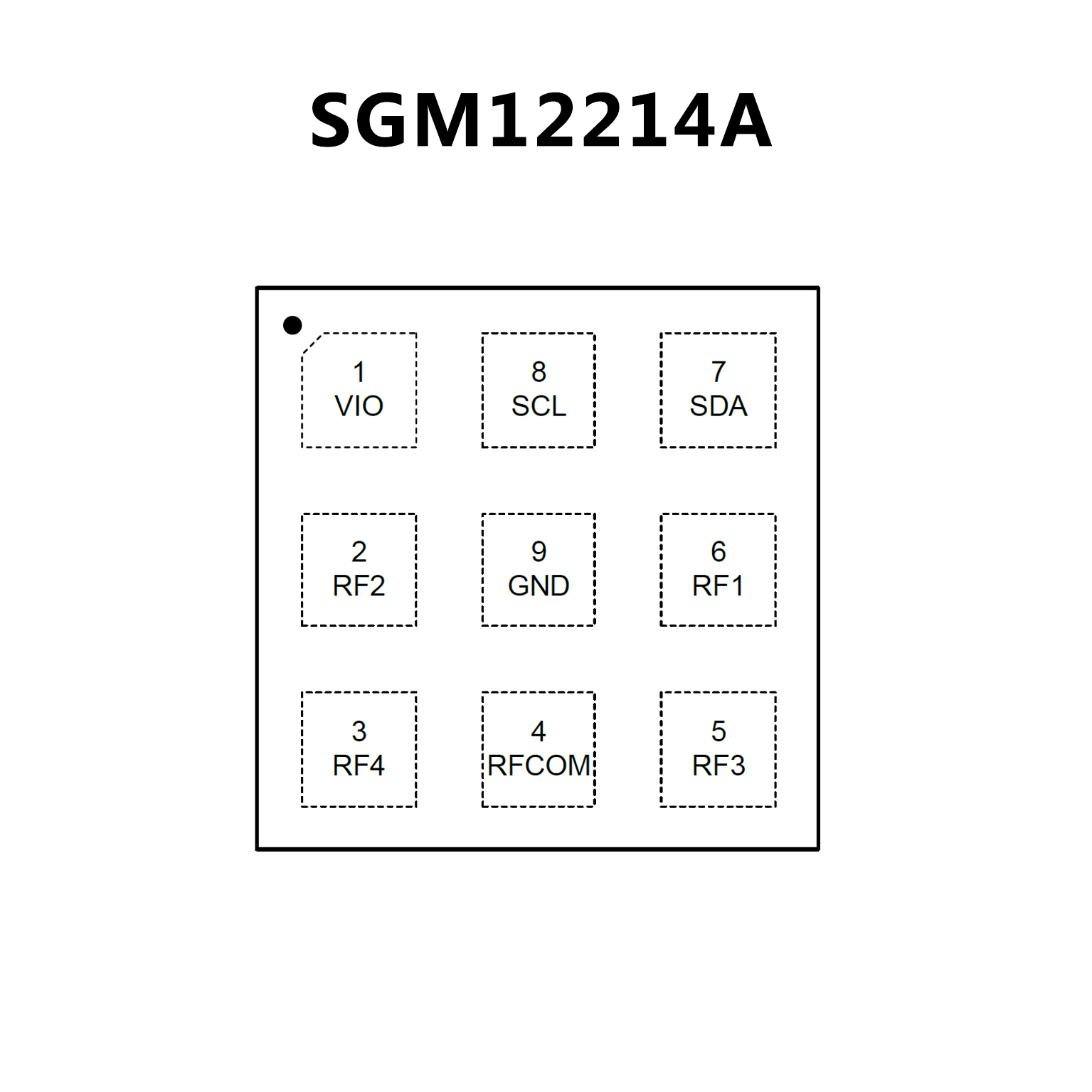

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Low Insertion Loss
? High Port-to-Port Isolation
? RFFE 2.0 compatible (52MHz Write Speed)
? Capable of 1.8V operation
? HBM Rating > 1kV on all ports
? Compact size: 1.1mm x 1.1mm x 0.44mm
? DC blocking capacitors are not required in
typical applications

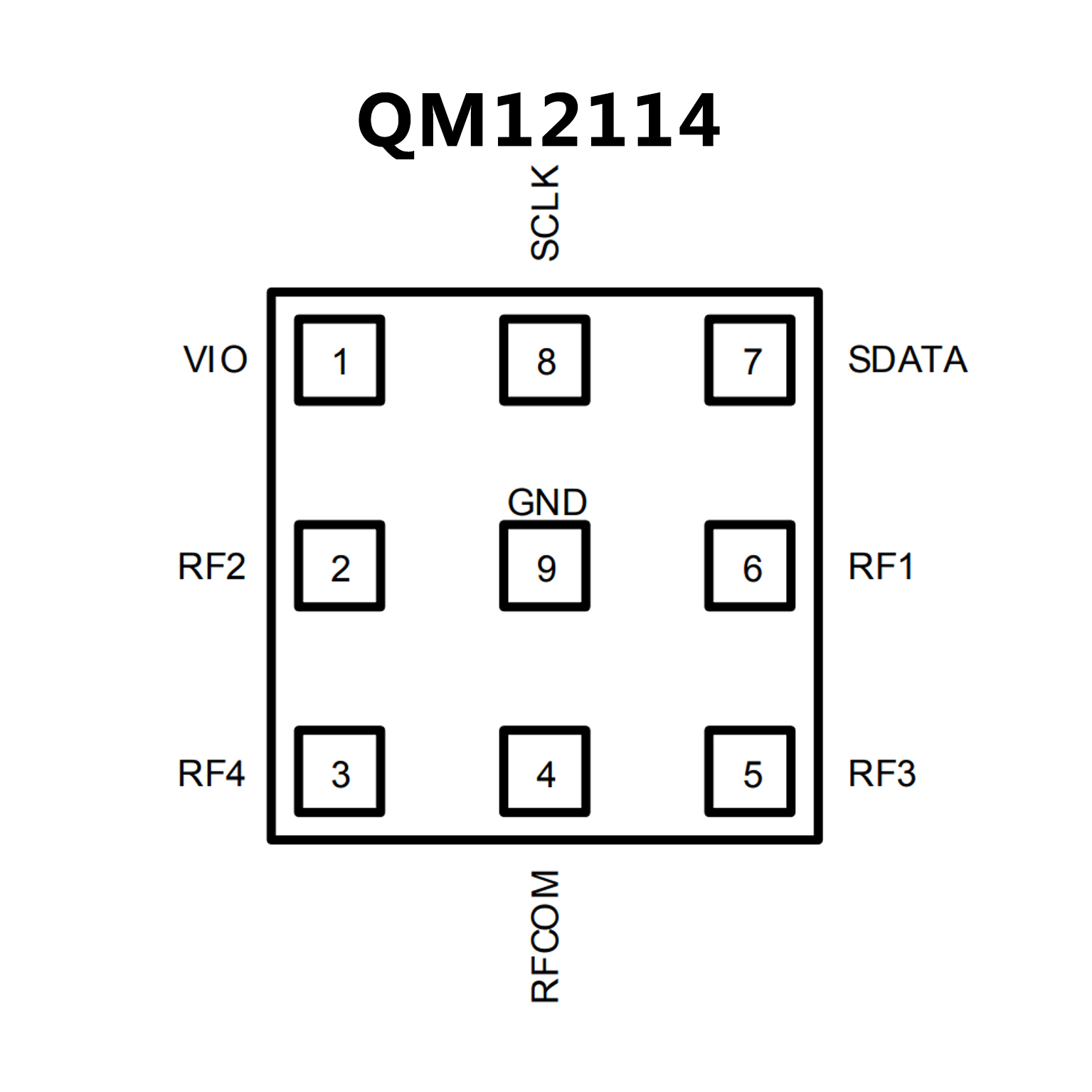

PIN CONFIGUTION
