Three Pole Three Throw Antenna Routing Switch,SGM12033A Replace QM11033.
SGM12033A
SGM12033A.pdf
SGM12033A.pdfFEATURES
? Operating Frequency Range: 0.4GHz to 5.8GHz
? Low Insertion Loss
? Input 0.1dB Compression Point: 38dBm
? High Isolation
? MIPI RFFE V2.1 Interface Compatible
? No External DC Blocking Capacitors Required
? Available in a Green ULGA-2×2-16AL Package

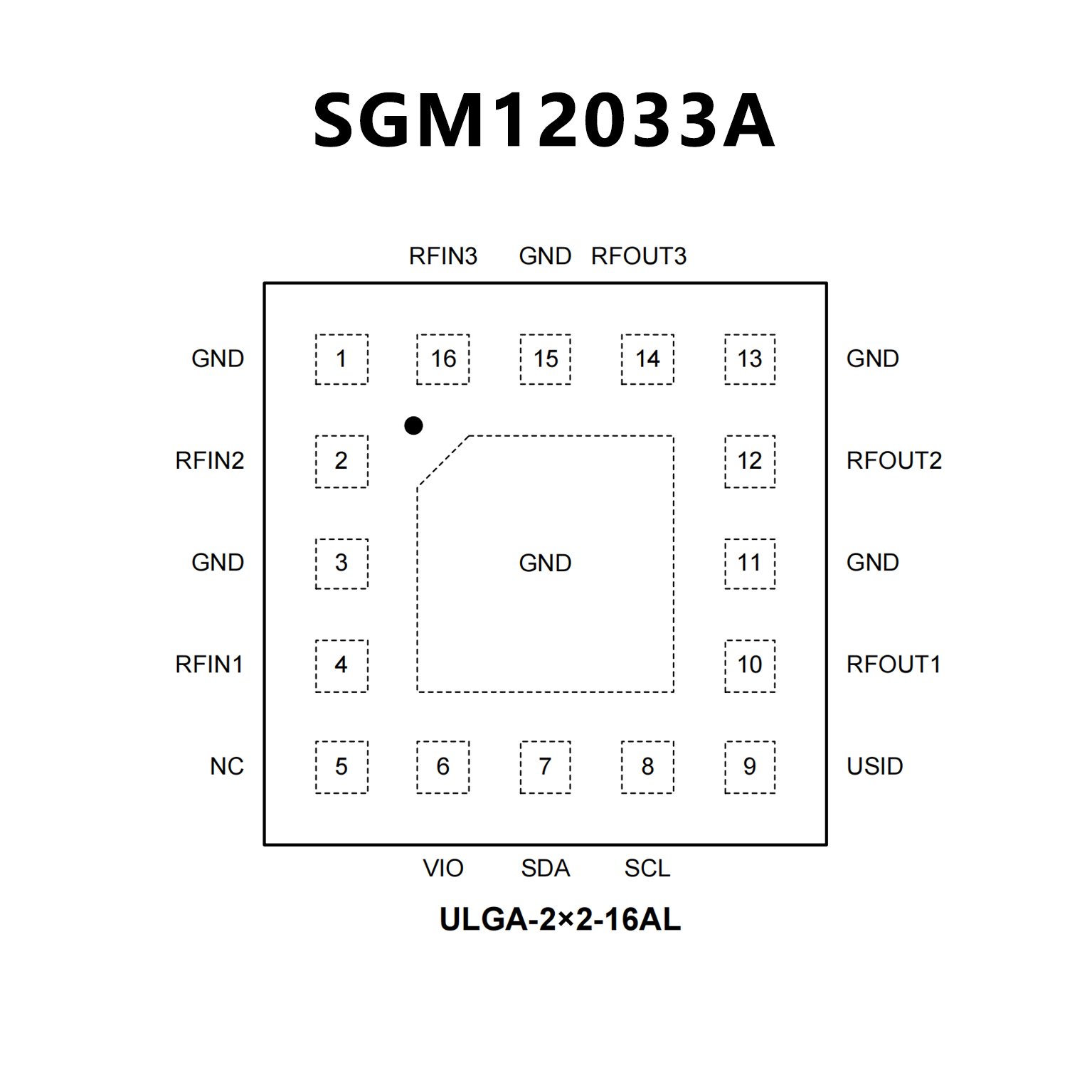

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? All Paths <2.5us Switching Speed for optimized SRS
applications
? Excellent Insertion Loss and Isolation performance
? High Linearity
? RFFE 2.1 Control Interface with HW Masked Writes
? Broadband Performance Suitable for Multiple Air
Interfaces including 5G applications, 100MHz to 6GHz
? Slave ID for Multiple Placements on the Same Board
? Very Low Current Consumption
? DC blocking capacitors are not required
? Single VIO supply

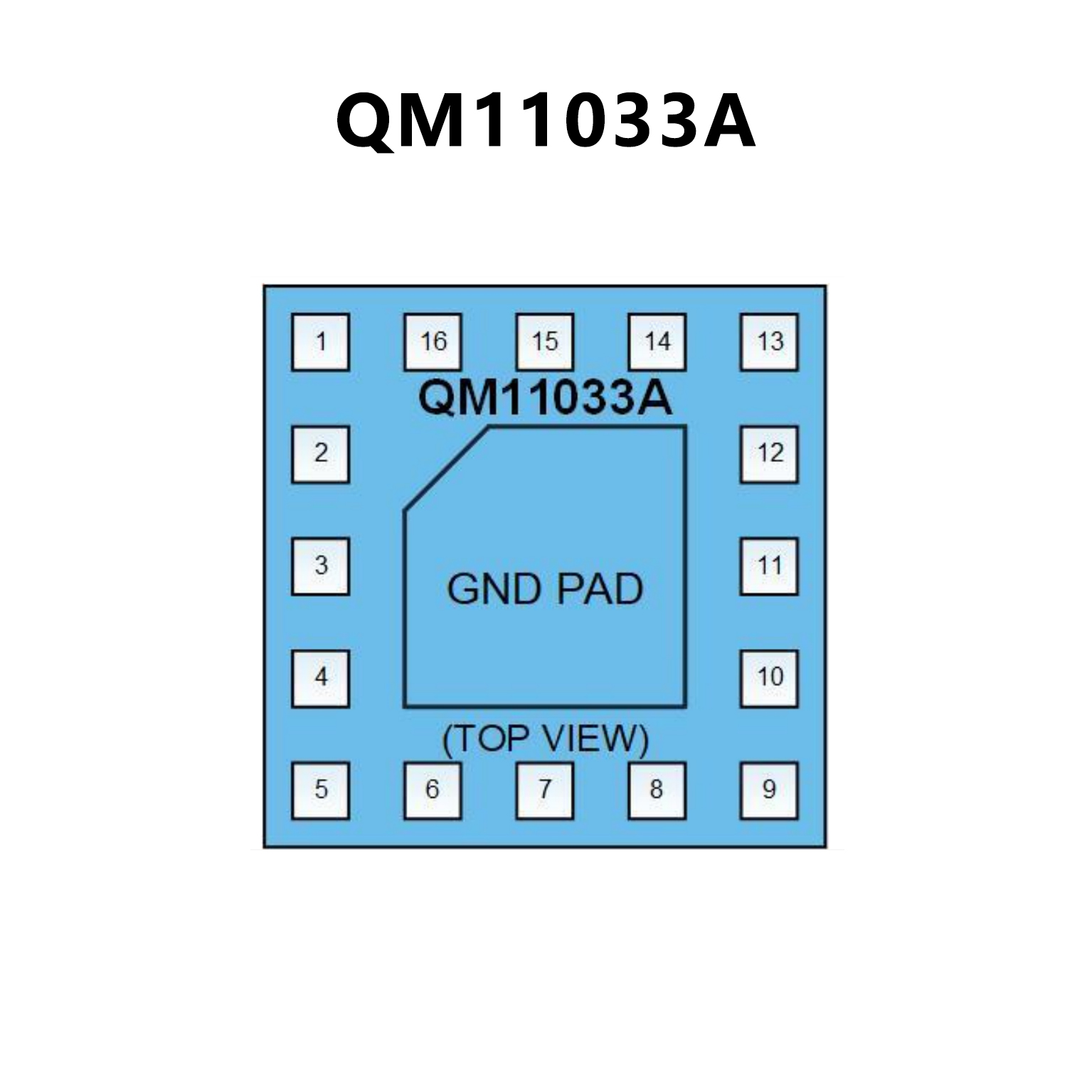

PIN CONFIGUTION
