Low Capacitance 1-Channel ESD Protection, SGM05CB1A8 P2P PESD5V0F1BRLD.
SGM05CB1A8
SGM05CB1A8.pdf
SGM05CB1A8.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
? Rated Peak Pulse Current: 8.5A
? 9.6pF (TYP) Channel Input Capacitance
? Low Profile Package: UTDFN-1×0.6-2L
? Working Voltage: 5.0V and below

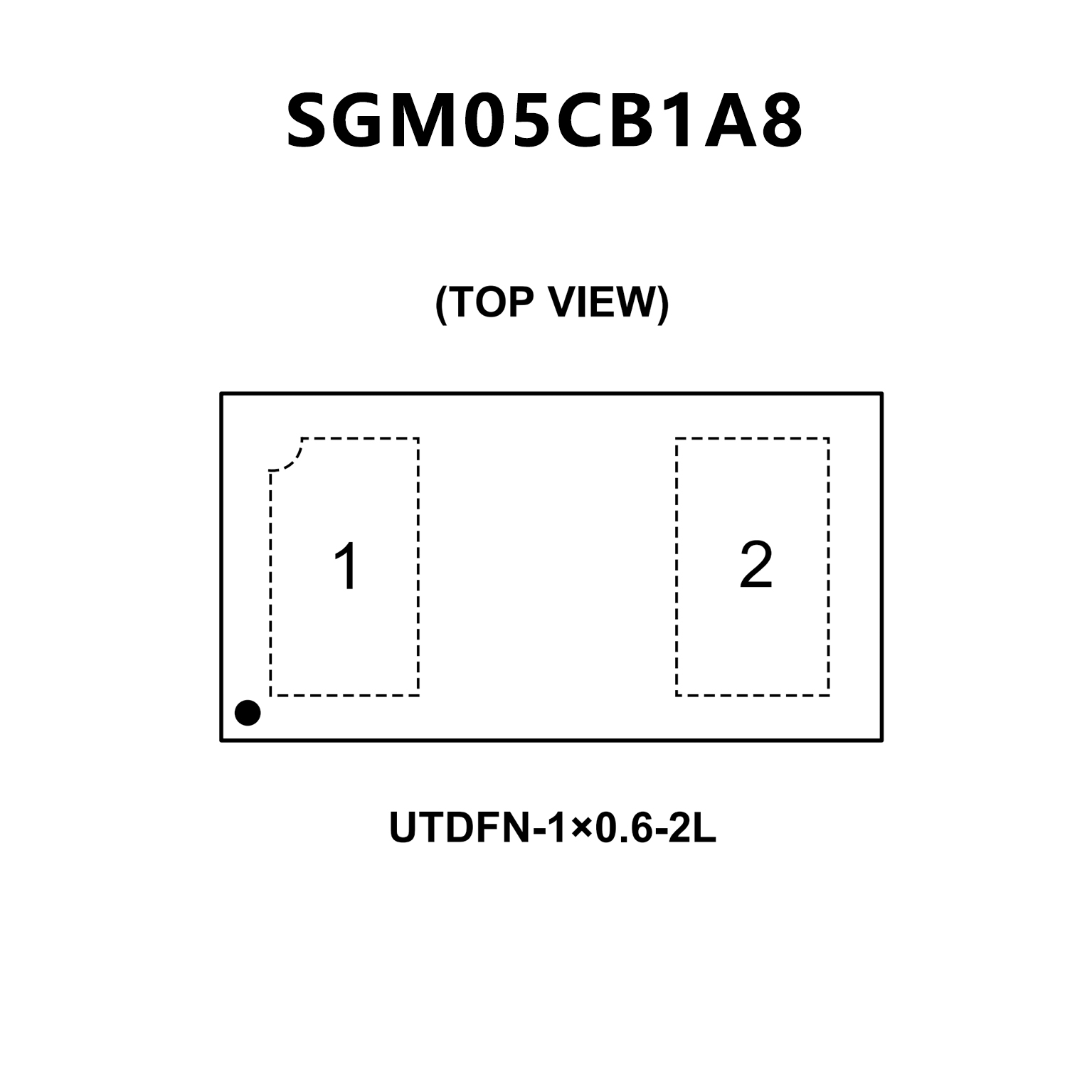

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Bidirectional ESD protection of one line
? ESD protection up to 10 kV (contact) and 15 kV (air)
? Femtofarad capacitance: Cd = 400 fF
? IEC 61000-4-2; level 4 (ESD)
? Low ESD clamping voltage: 30 V at 30 ns and ?8 kV
? Package height typ. 0.37 mm
? Very low leakage current: IRM < 1 nA
? AEC-Q101 qualified

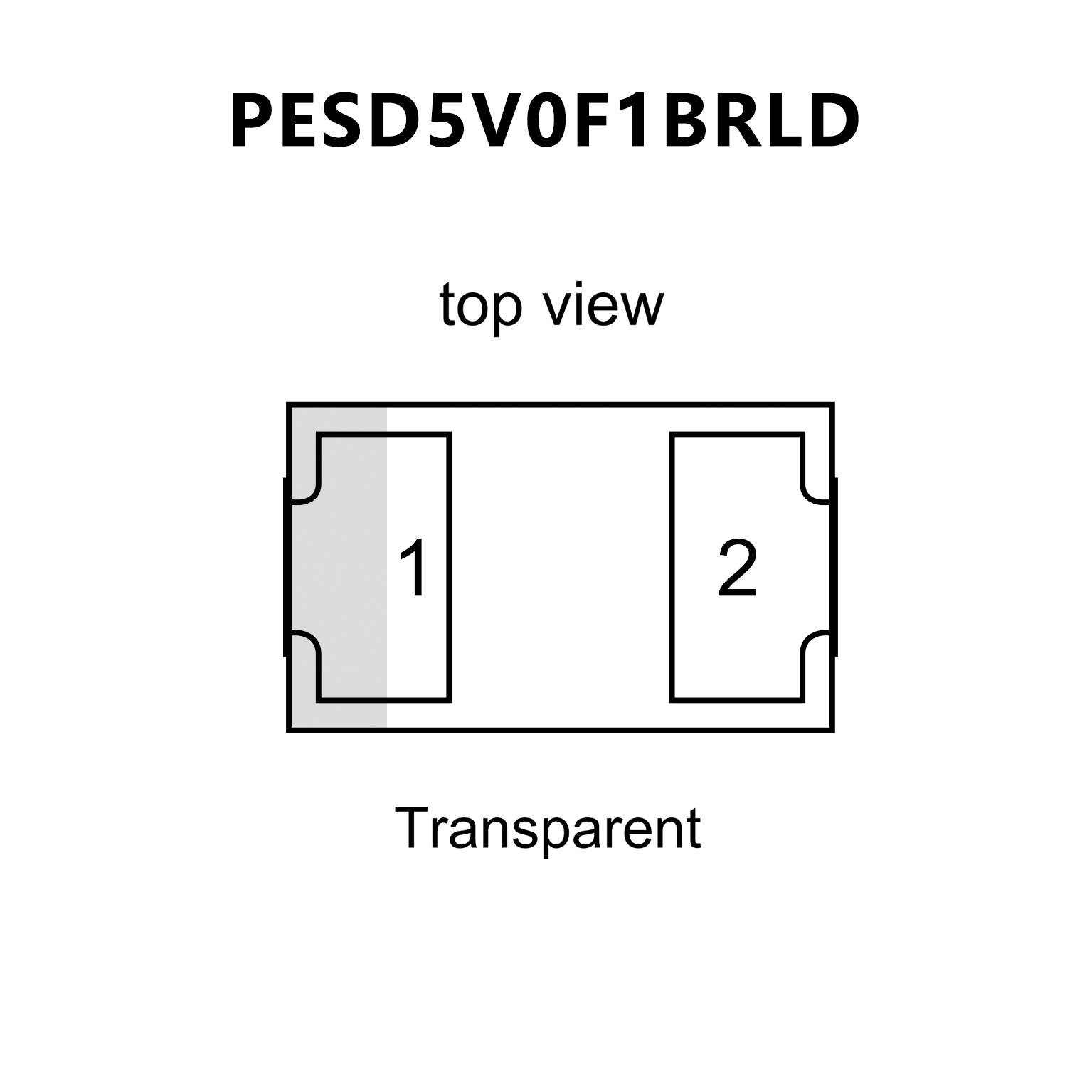

PIN CONFIGUTION
