Low-power single CMOS timer, SE555 Replace TS555.
SE555
SE555.pdf
SE555.pdfFEATURES
? Timing from Microseconds to Hours
? Astable or Monostable Operation
? Adjustable Duty Cycle
? TTL Compatible Output Can Source or Sink up to 200mA

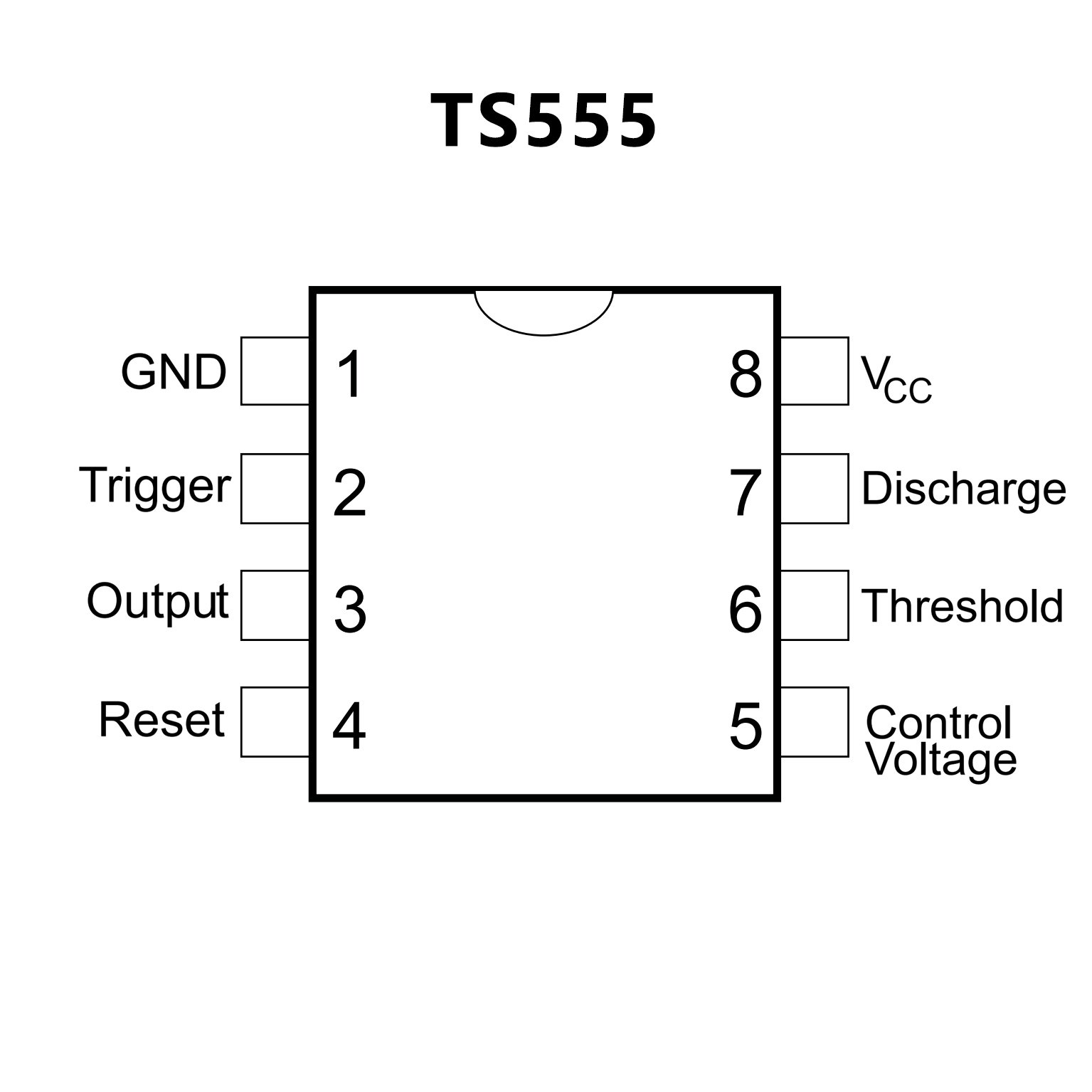

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Very low power consumption:
– 110 μA typ at VCC = 5 V
– 90 μa typ at VCC = 3 V
? High maximum astable frequency of 2.7 MHz
? Pin-to-pin functionally-compatible with bipolar NE555(a)
? Wide voltage range: +2 V to +16 V
? Supply current spikes reduced during output transitions
? High input impedance: 1012 Ω
? Output compatible with TTL, CMOS and logic MOS

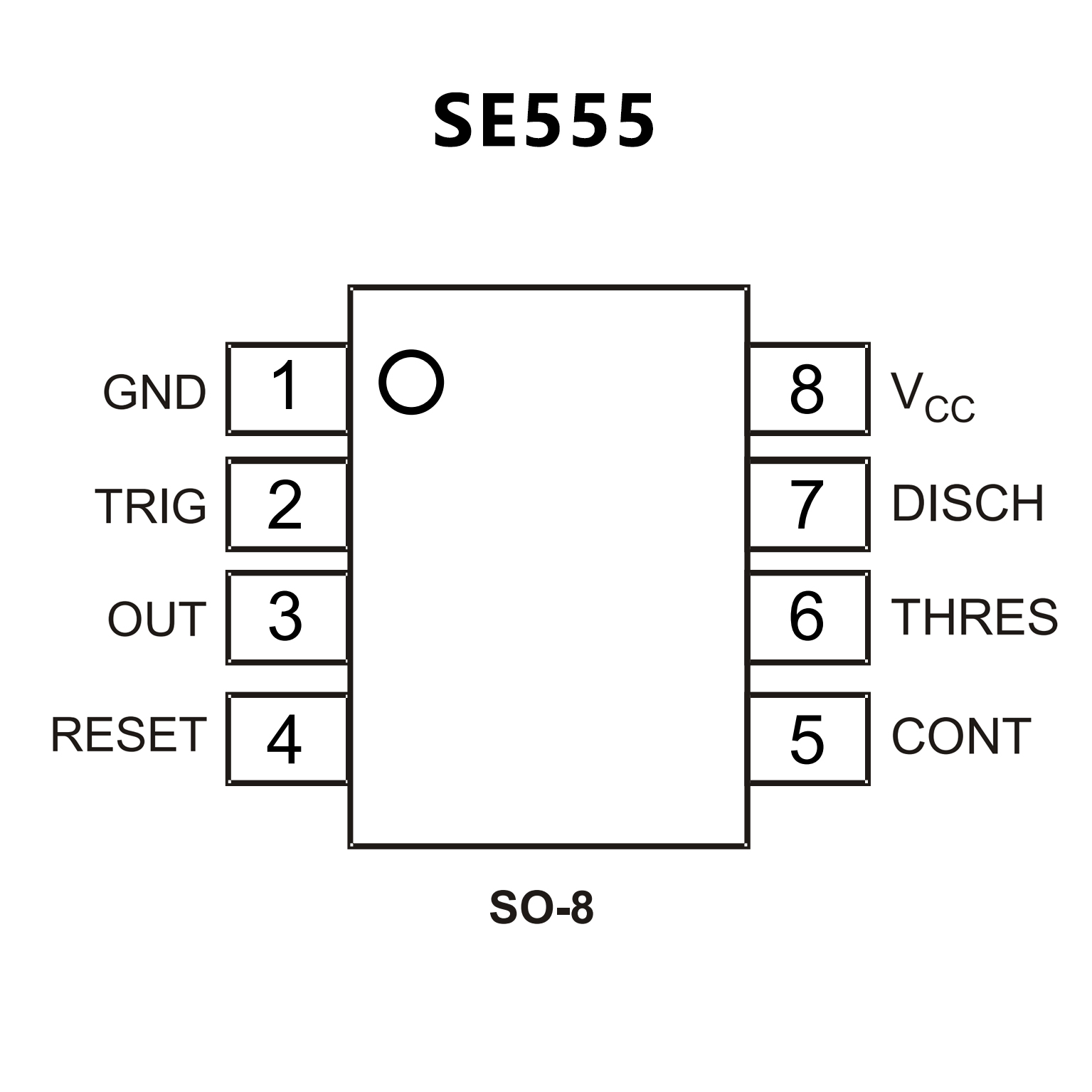

PIN CONFIGUTION
