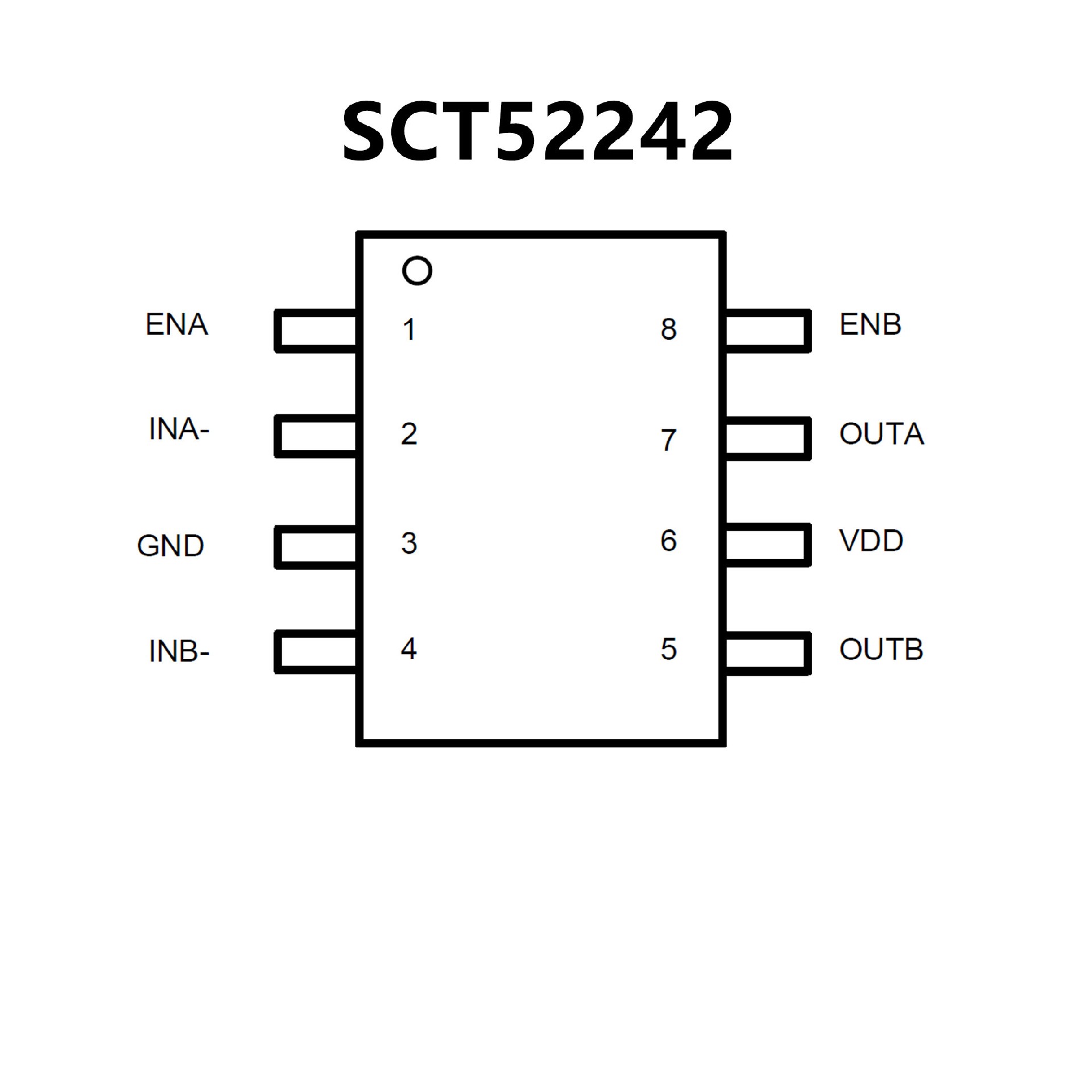

SCT52242.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak SinkCurrent
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

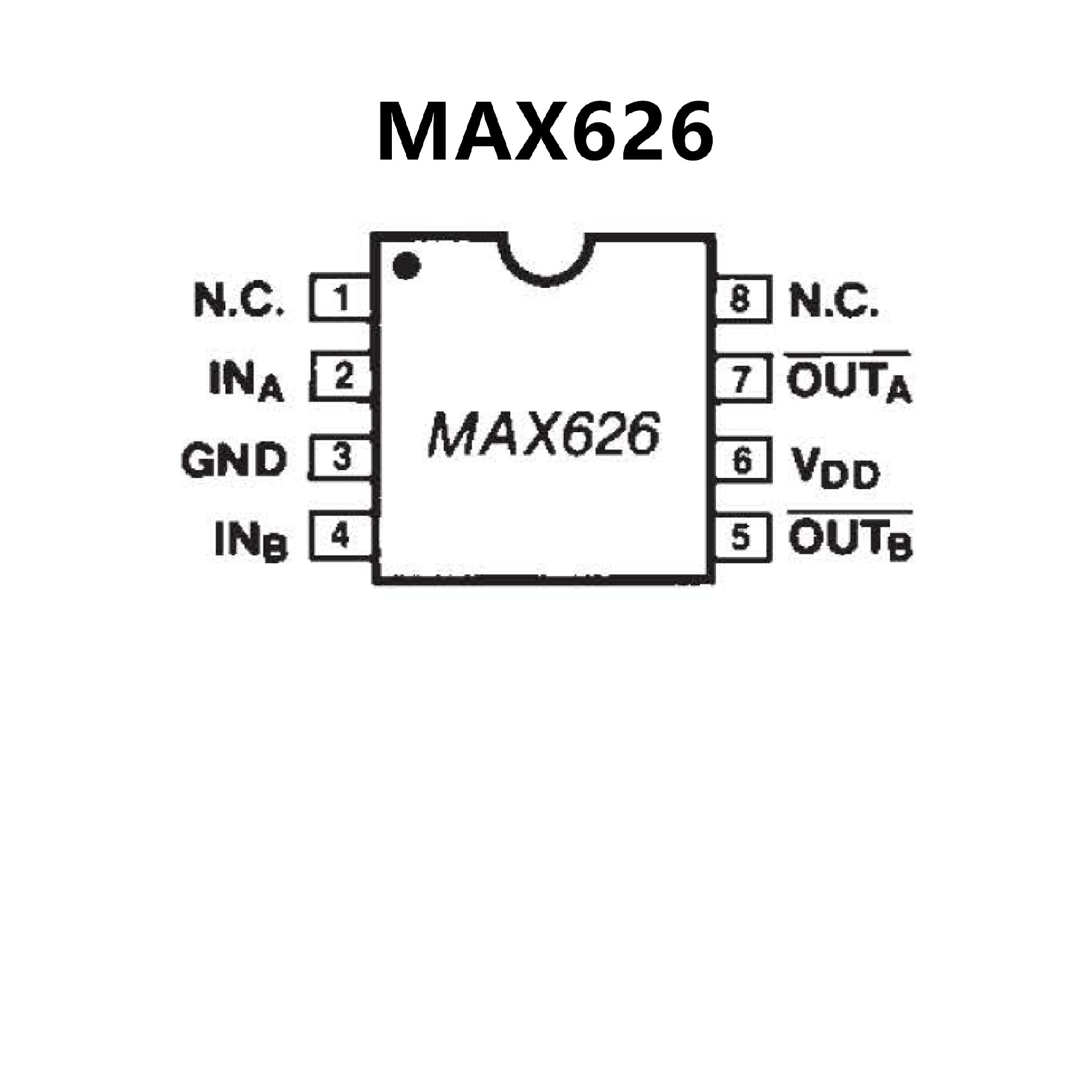

? lmproved Second Source For TSC426/7/8
? Fast Rise and Fall Times: Typically 20ns with1000pF Load
? wide Supply Range: VoD = 4.5 to 18 Volts
? Low Power Consumption:7mW with
? Inputs Low150mW with Inputs High
? TTL/CMOS Input Compatible
? Low RouT: Typically 4Ω
? MAX626 is Pin Equlvalent to TSC426,DS0026/DS0056
