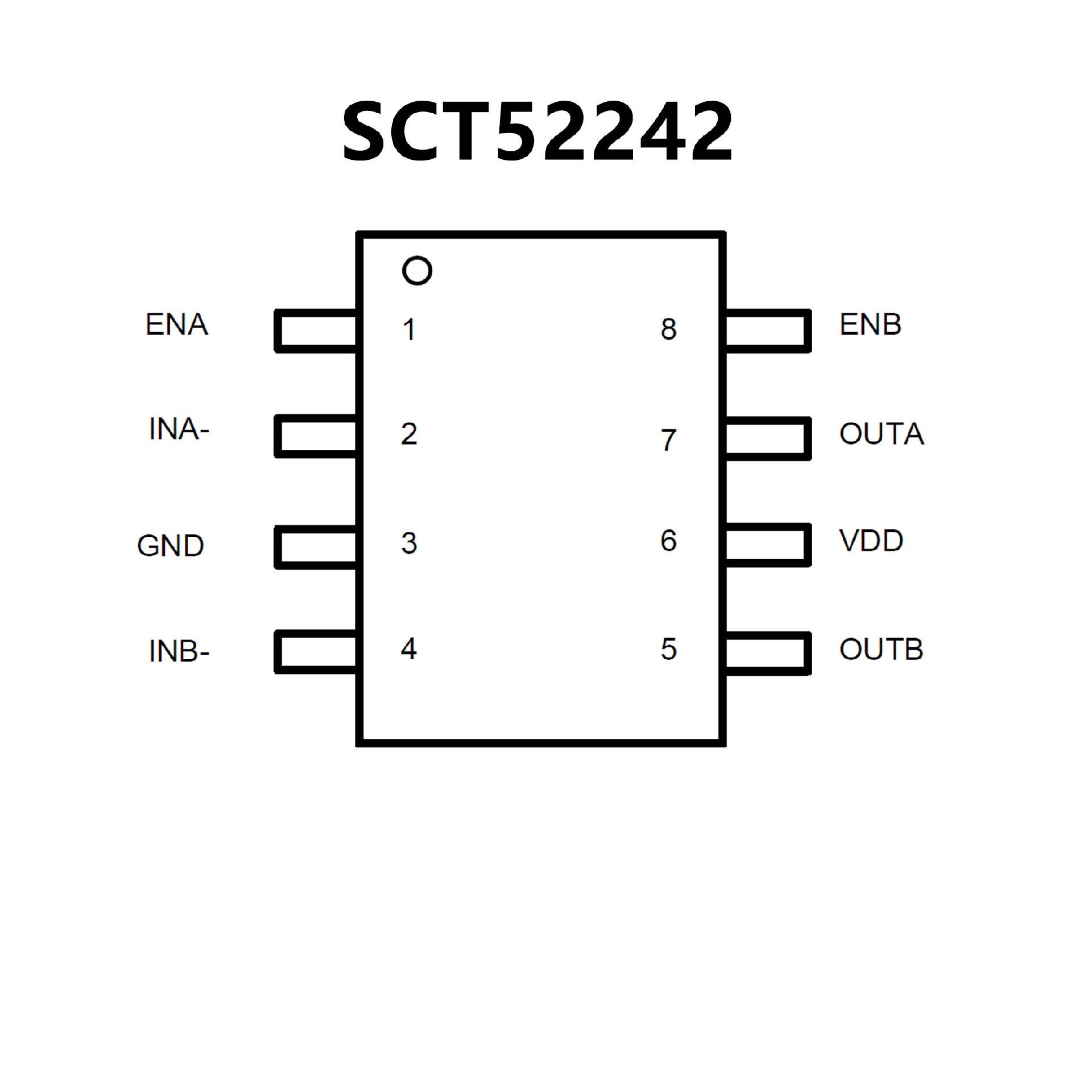

SCT52242.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak SinkCurrent
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

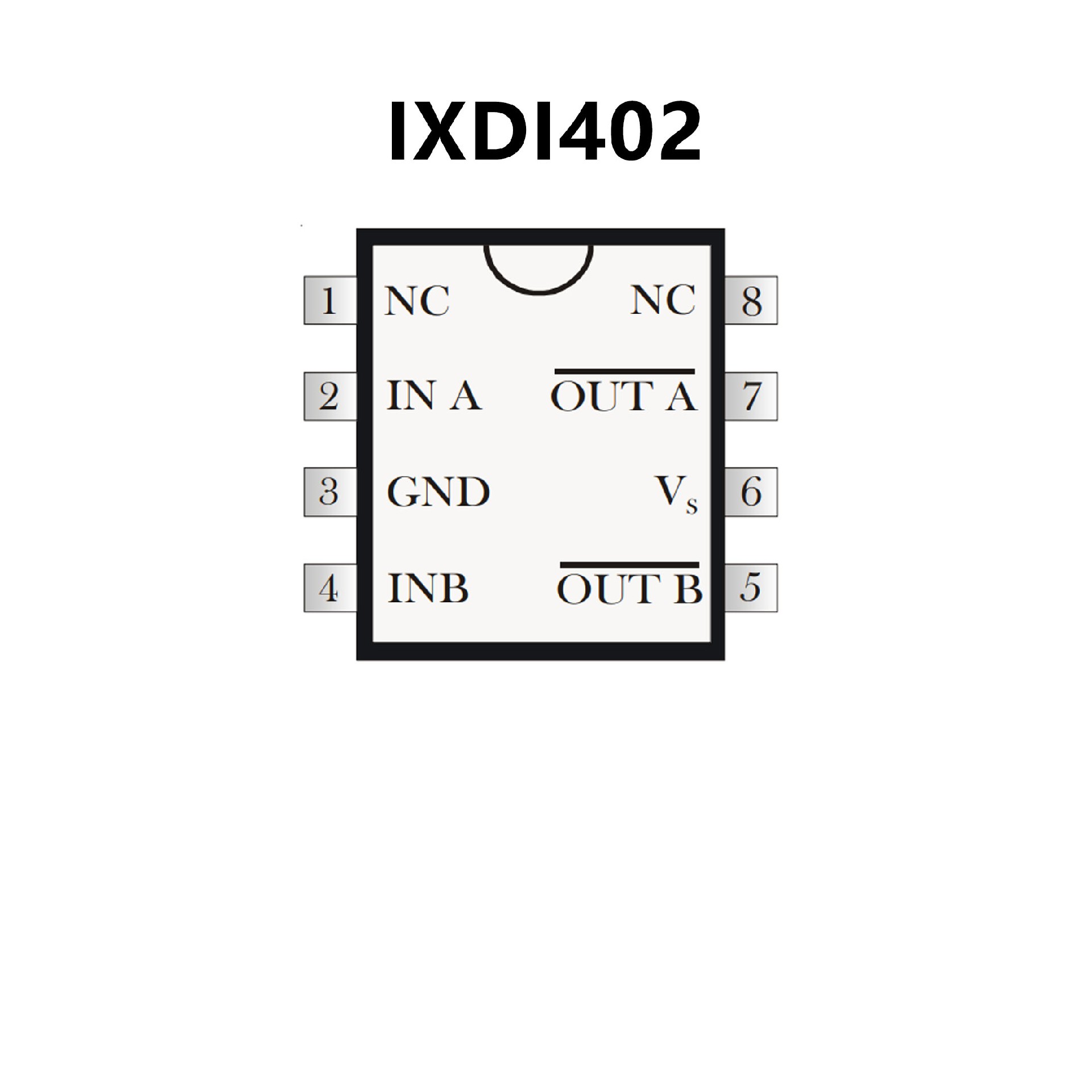

? Built using the advantages and compatibility
of CMOS and IXYS HDMOSTM processes
? Latch-Up Protected up to 0.5A
? High Peak Output Current: 2A Peak
? Wide Operating Range: 4.5V to 35V
? -55°C to +125°C Extended Operating
Temperature Standard
? High Capacitive LoadDrive
Capability: 1000pF in <10ns
? Matched Rise And Fall Times
? Low Propagation Delay Time
? Low Output Impedance
? Low Supply Current
? Two Drivers in Single Chip
