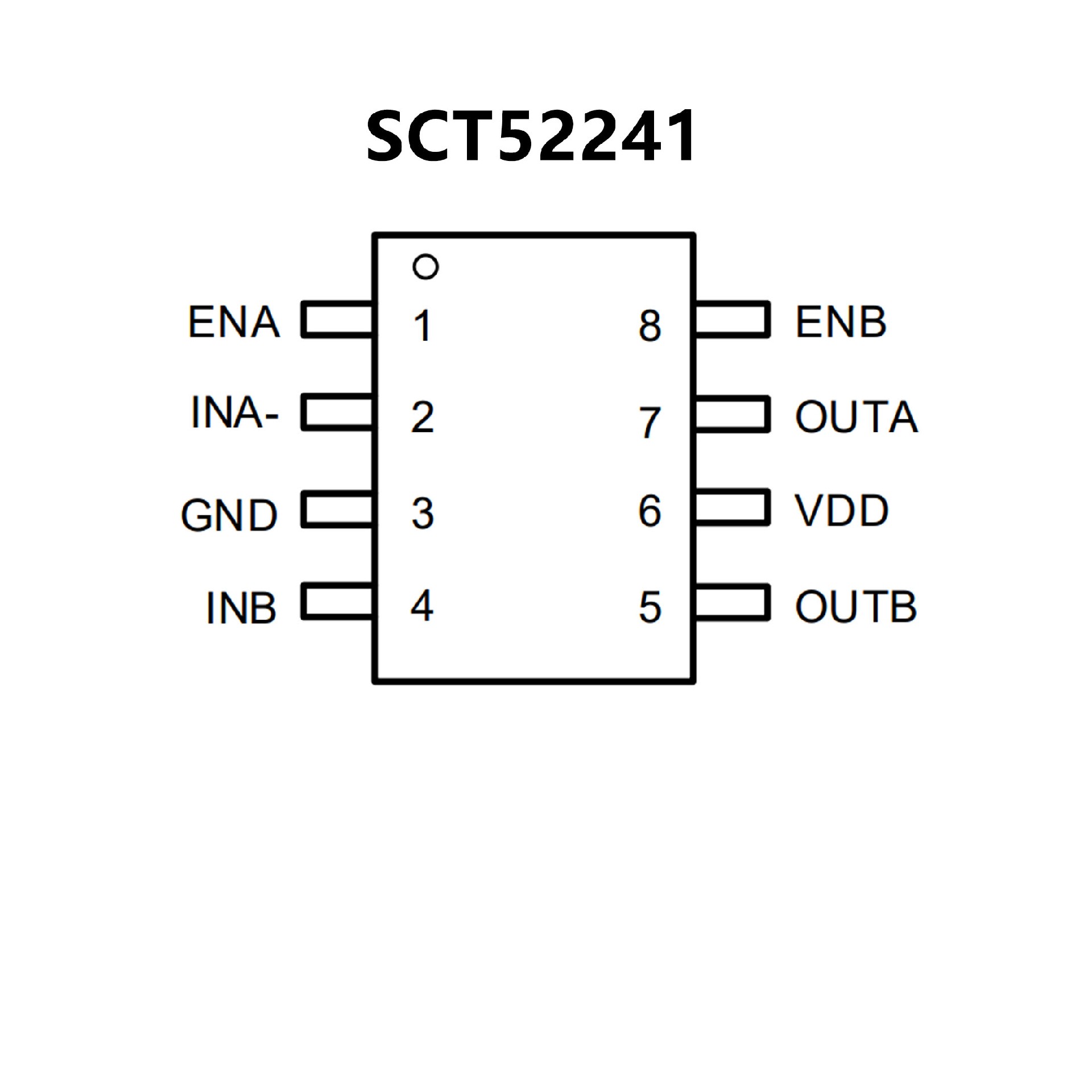

SCT52241.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink Current
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

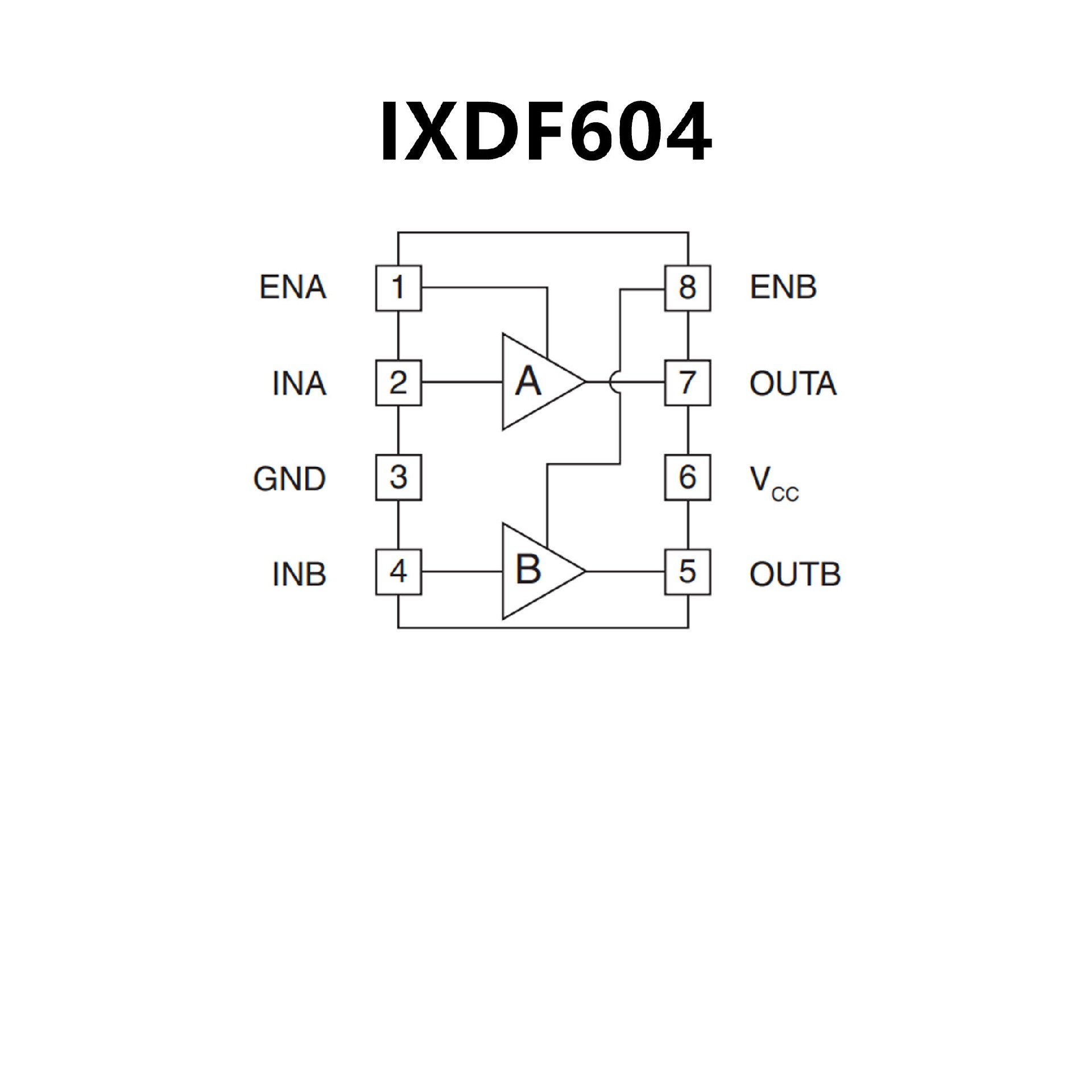

? 4A Peak Source/Sink Drive Current
? Wide Operating Voltage Range: 4.5V to 35V
? -40°C to +125°C Extended Operating
TemperatureRange
? Logic Input Withstands Negative
Swing of up to 5V
? Outputs May be Connected in Parallel for
HigherDrive Current
? Matched Rise and Fall Times
? Low Propagation Delay Time
? Low, 10μA Supply Current
? Low Output Impedance
