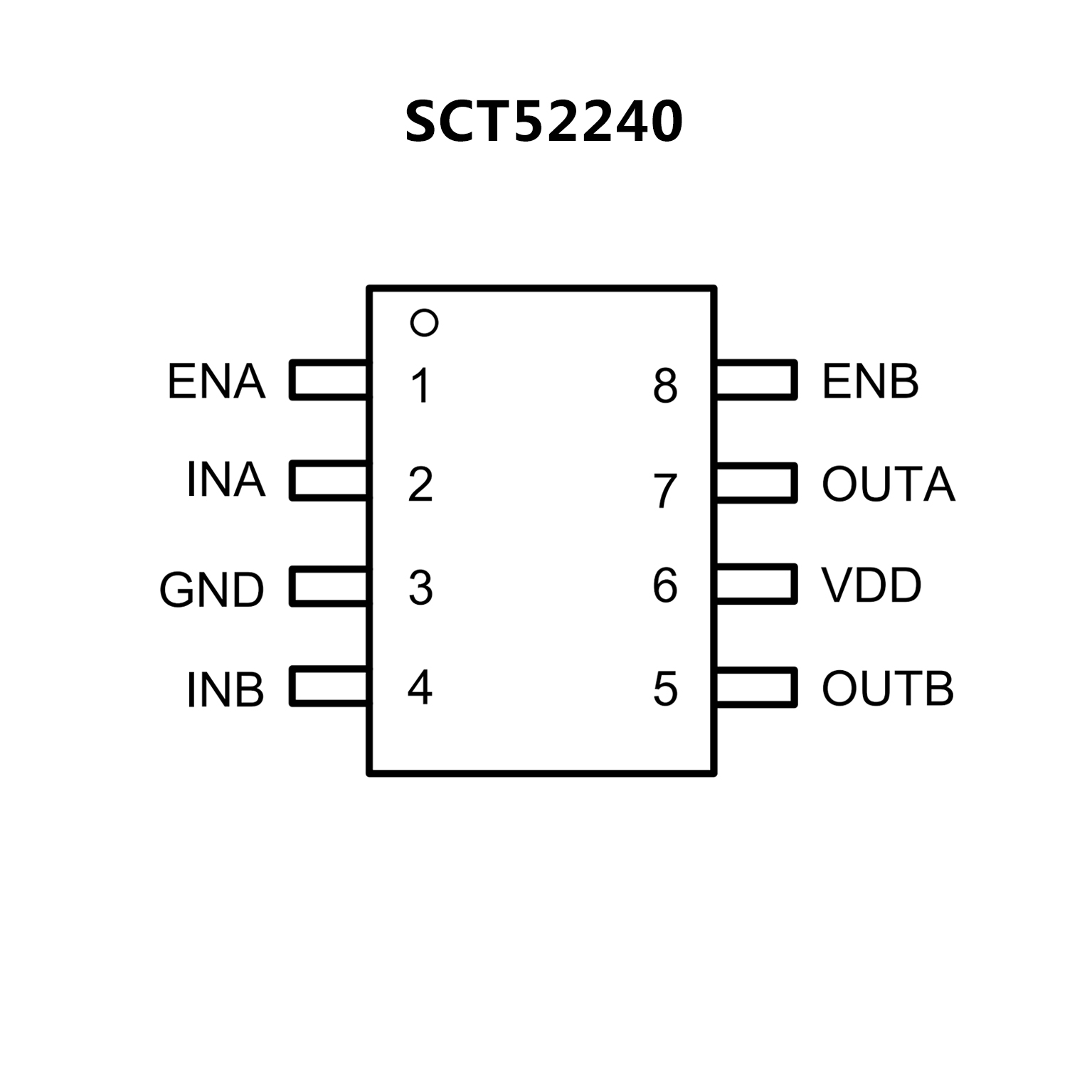

SCT52240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 and eMSOP-8 Package
? Gate drive supply range from 6 to 20V
? CMOS Schmitt-triggered inputs
? Matched propagation delay for both channels

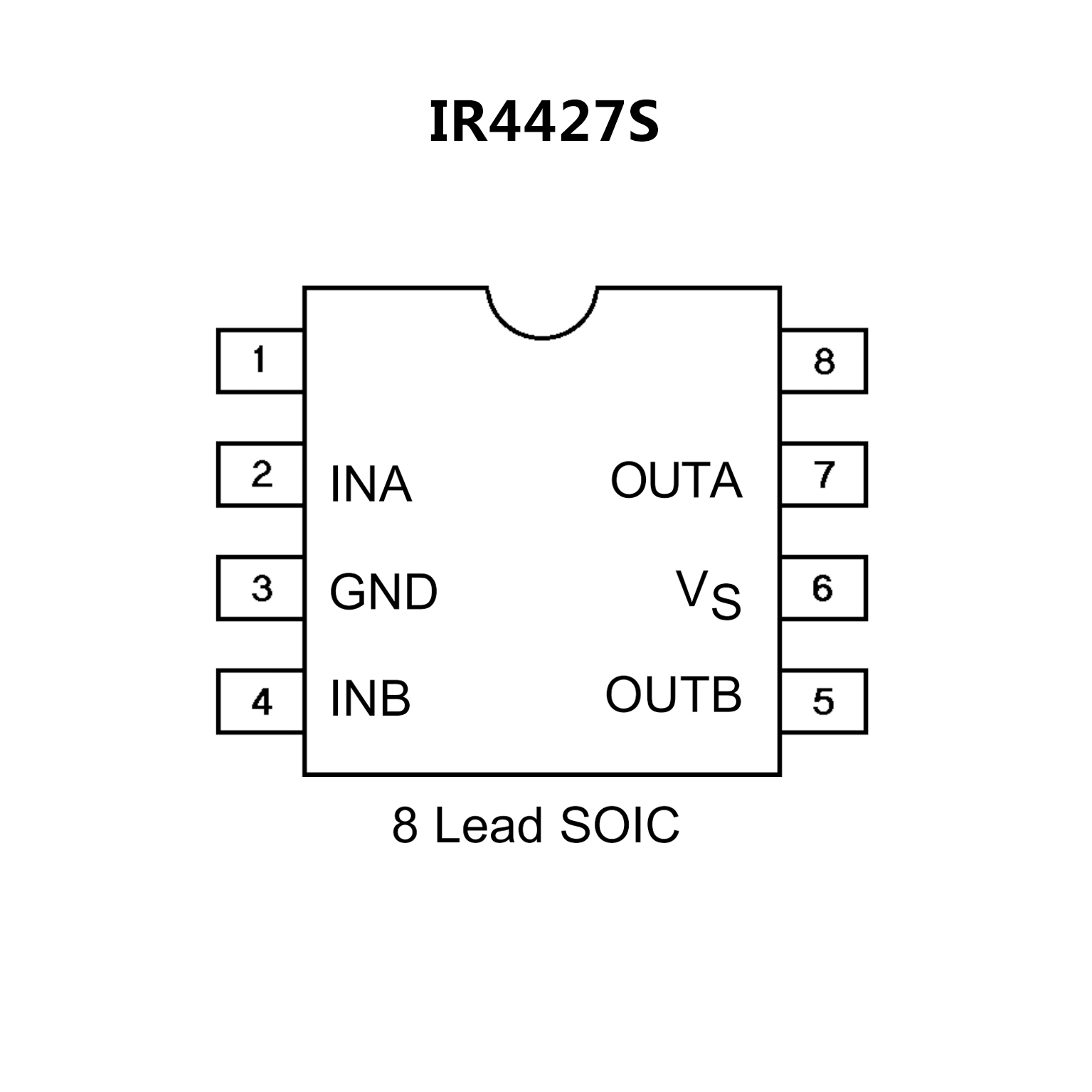

? Outputs out of phase with inputs (IR4426)
? Outputs in phase with inputs (IR4427)
? OutputA out of phase with inputA and
OutputB in phase with inputB (IR4428)
? Also available LEAD-FREE
