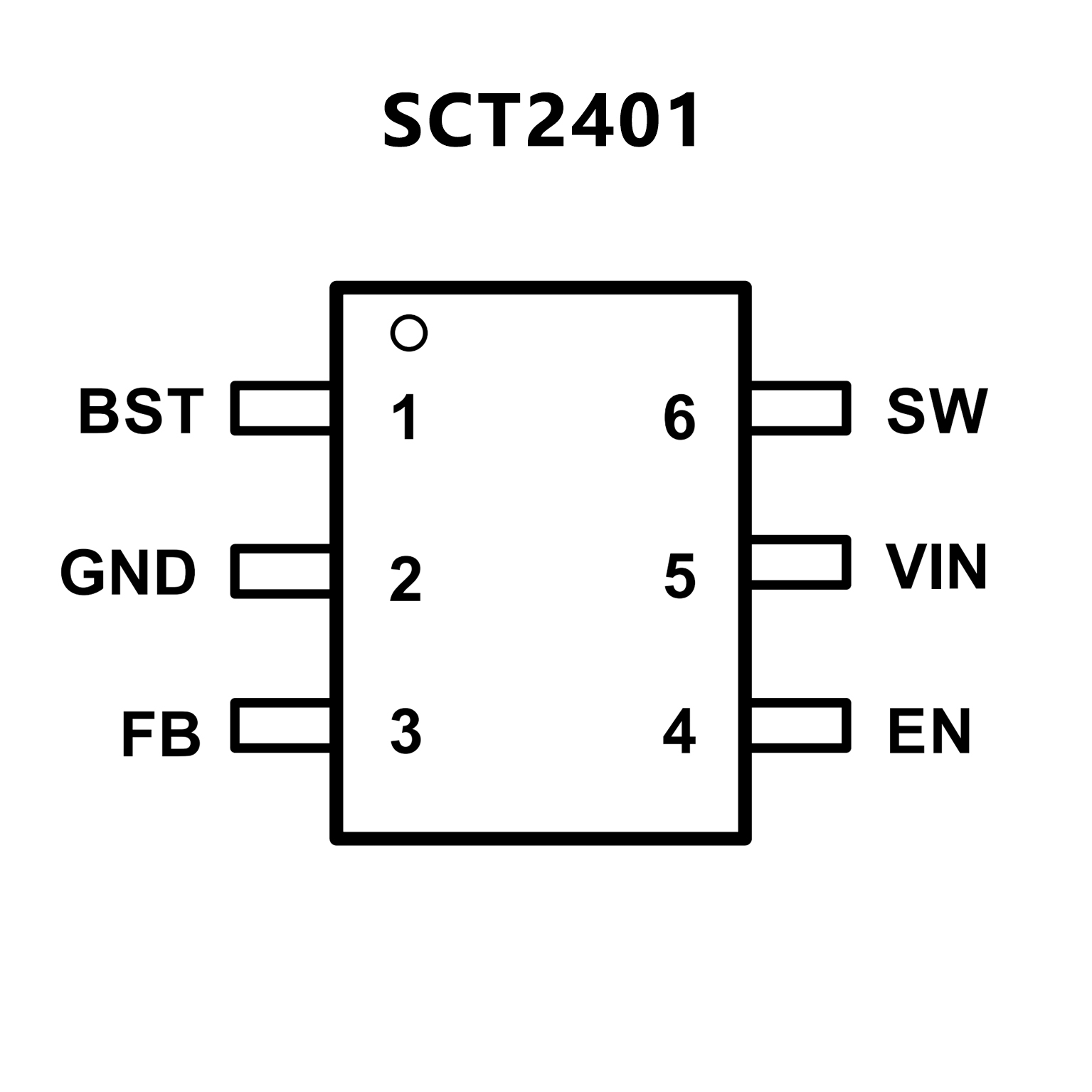

SCT2401.pdf? Wide Input Range: 4.5V-40V
? Up to 600mA Continuous Output Current
? 0.81V ± 2.5% Feedback Reference Voltage
? Integrated 600m? High-Side and 300mΩ
Low-Side Power MOSFETs
? Fixed Frequency 1.2MHz
? Pulse Skipping Mode (PSM) at Light Load
? 90uA Quiescent Current in Sleep Mode
? 80ns Minimum On-time
? 1ms Internal Soft-start Time
? Over-Temperature Protection
? Available in an TSOT23-6L Package
? Ultra Low 28 μA Standby Current in Sleep Mode
? Input Voltage Range 4 V to 40 V
? 1 μA Shutdown Current
? High Duty Cycle Operation Supported
? Output Current up to 600 mA
? 1.1 MHz and 2.1 MHz Switching Frequency
? Internal Compensation
? High Voltage Enable Input
? Internal Soft Start
? Over Current Protection
? Over Temperature Protection
? Small Overall Solution Size (TSOT-6L Package)
