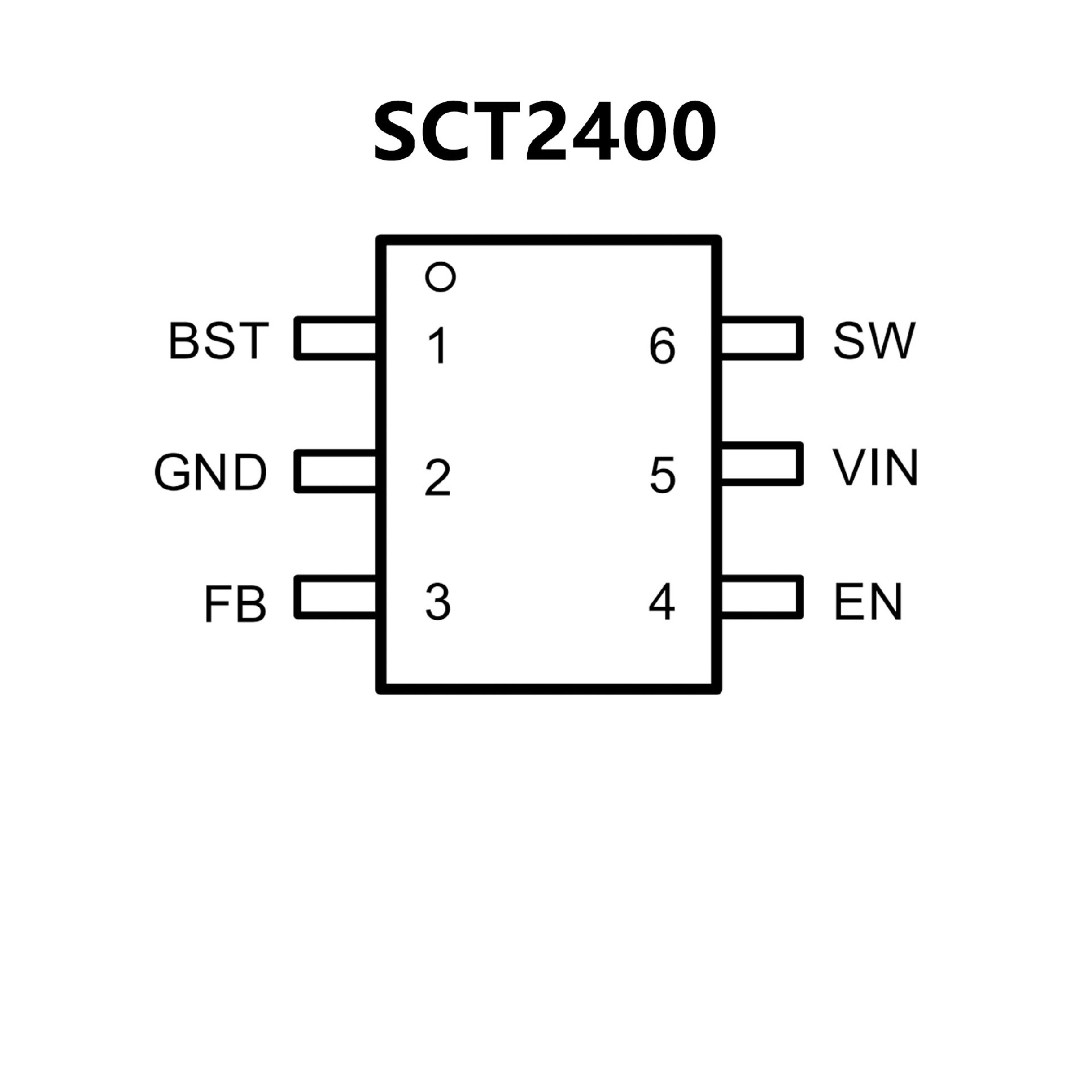

SCT2400.pdf? Wide Input Range: 4.5V-40V
? Up to 600mA Continuous Output Current
? Less than 0.1% Output Ripple at 12V Output
? 0.81V ± 2.5% Feedback Reference Voltage
? Integrated 600m? High-Side and 300mΩ Low
? Side Power MOSFETs
? Fixed Frequency 2MHz
? Pulse Skipping Mode (PSM) at Light Load
? 90uA Quiescent Current in Sleep Mode
? 80ns Minimum On-time
? 1ms Internal Soft-start Time
? Over-Temperature Protection
? Available in an TSOT23-6L Package

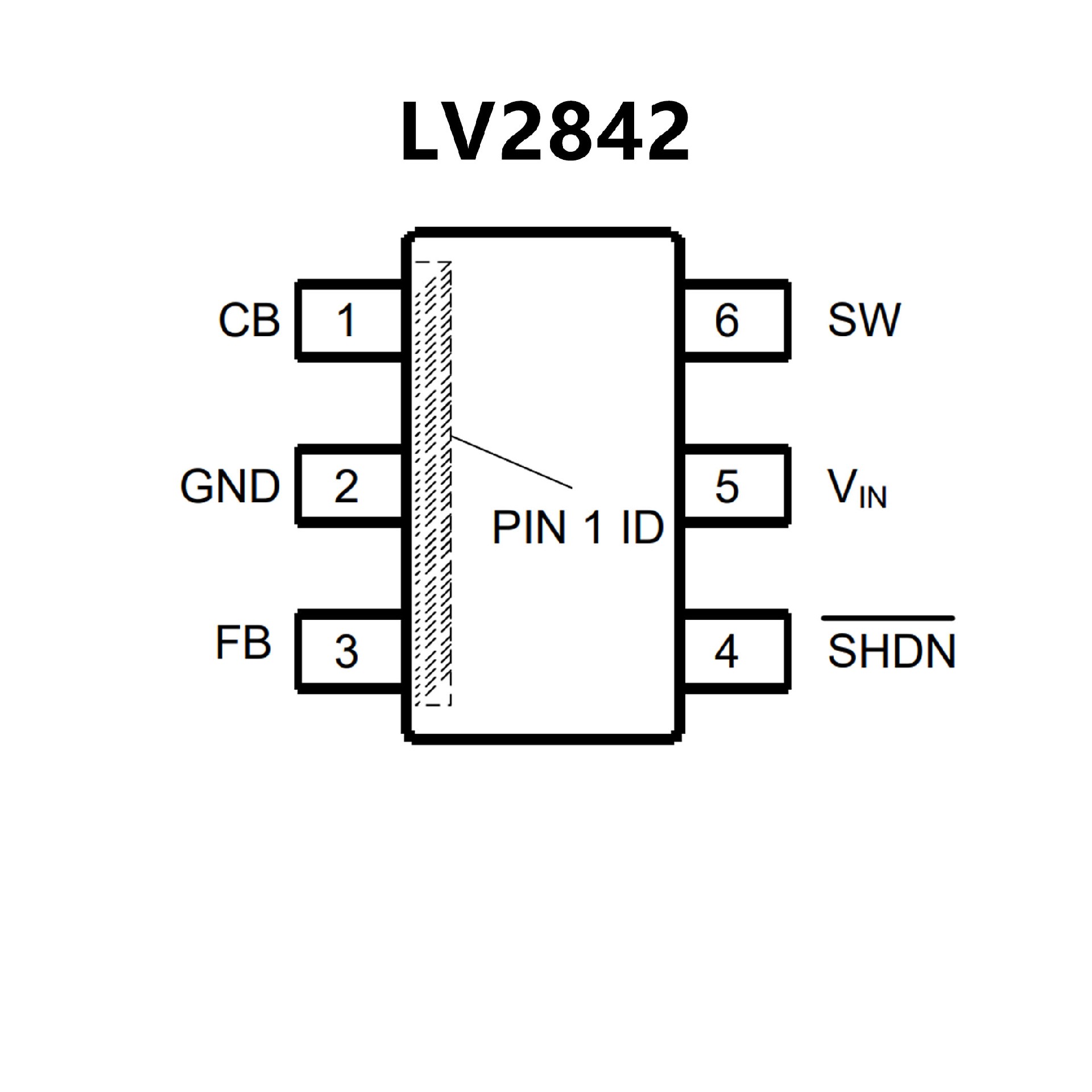

? Input Range 4V to 40V with 45V Transients
? 1.1MHz(X) or 2.1MHz(Y) Switching Frequency
? Ultra High Efficiency for Light Load with Eco Mode
? Low Dropout Operation
? Output Current Options of 300mA and 600mA
? High Voltage Precision Enable Input
? Over Current Protection
? Over Temperature Protection
? Internal Compensation
? Small Overall Solution Size (TSOT-6L Package)
