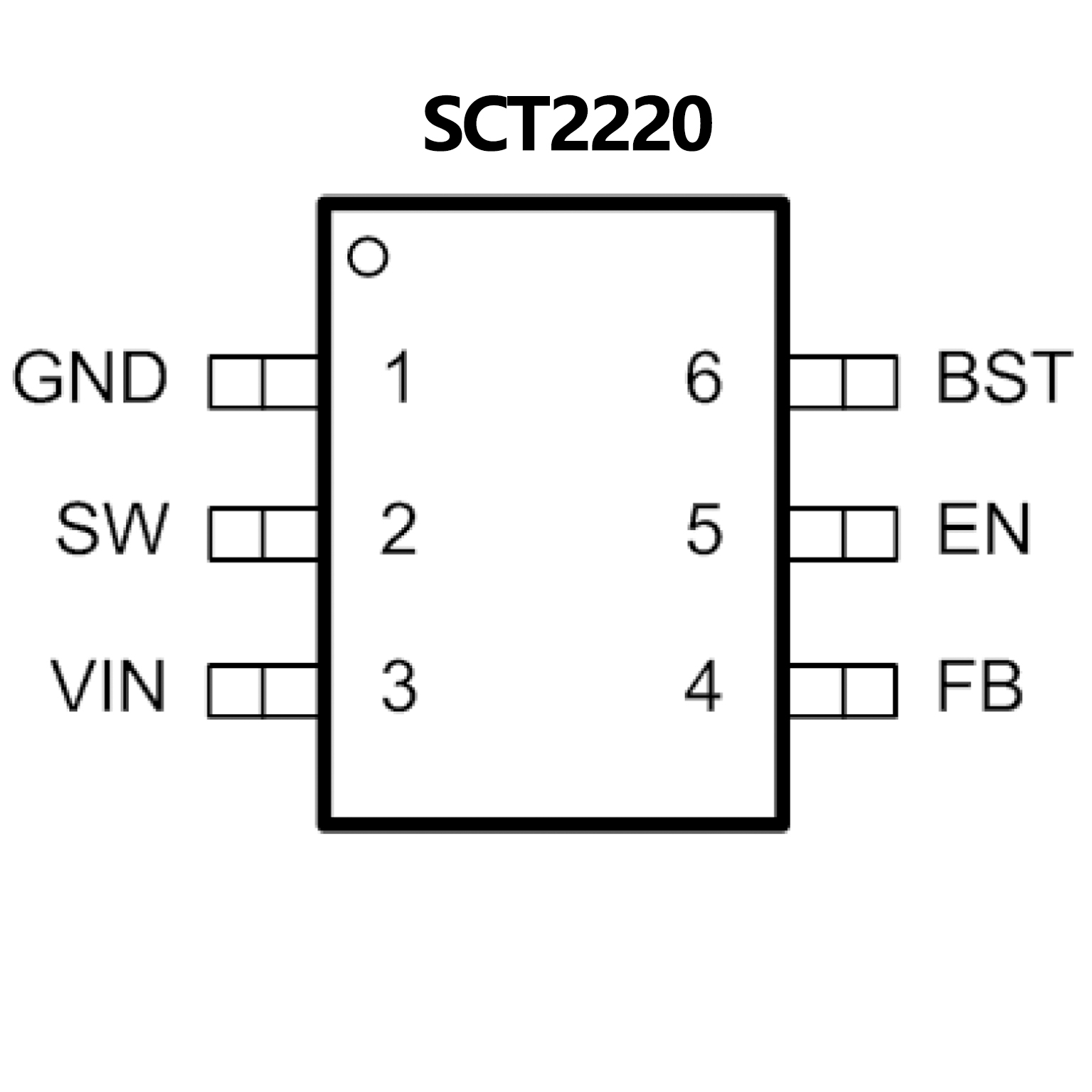

SCT2220.pdf? Wide Input Voltage: 4.2-17V
? 2A Continuous Output Current with
Integrated 90mΩ/65mΩFETs
? Wide Output Voltage Range:0.8V-7V
? Quiescent Current 135μA
? Cycle-by-Cycle Current Limiting
? Internal 2.5ms Soft-Start
Limits the inrush current
? Fixed 750kHz Switching Frequency
? Input Under-Voltage Lockout
? Power save mode at light load
? Over-Temperature Protection
? Available in a SOT563 and TSOT23 Package

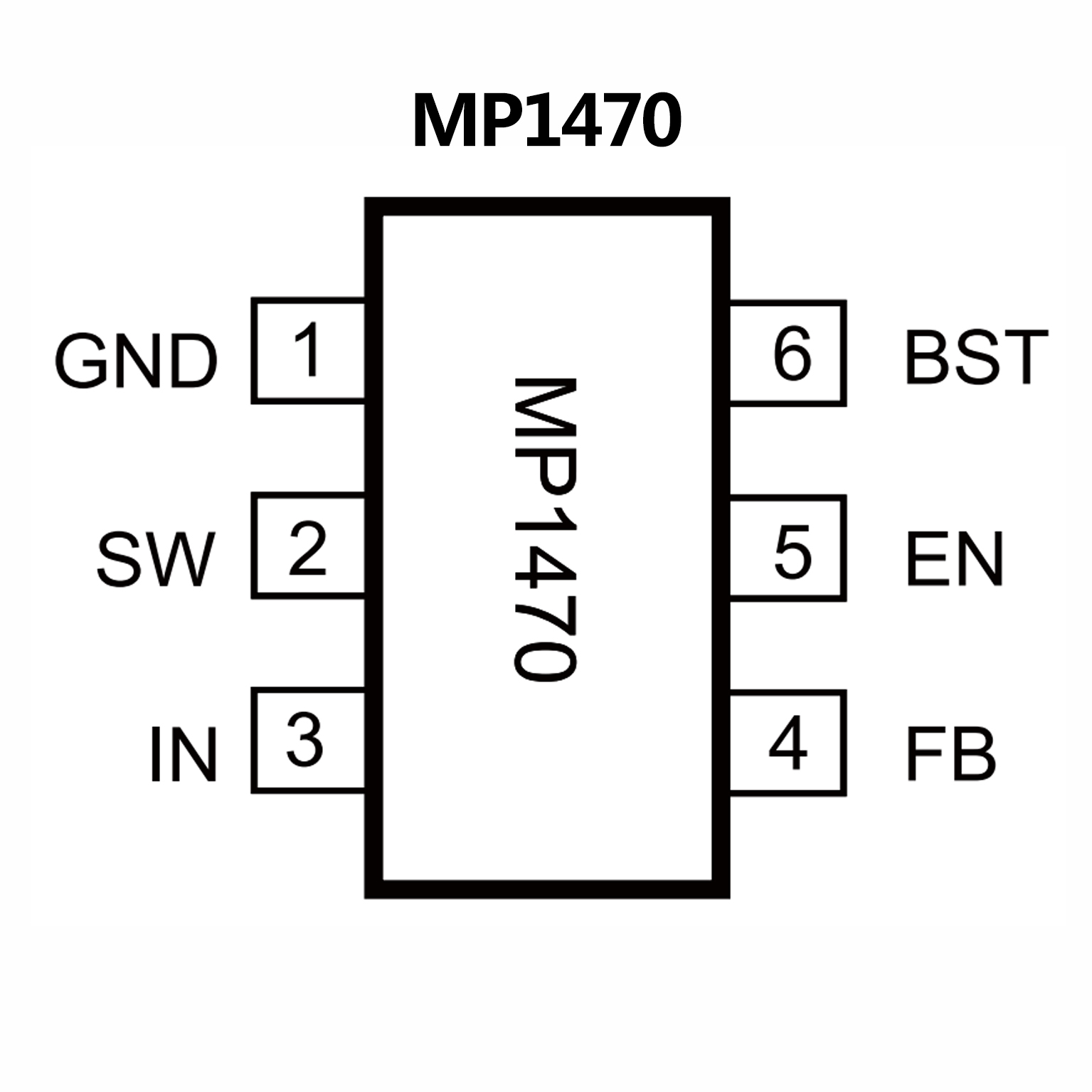

? Wide 4.7V-to-16V Operating Input Range
? 163mΩ/86mΩ Low-RDS(ON) Internal Power
MOSFETs
? Proprietary Switching-Loss–Reduction
Technique
? High-Efficiency Synchronous-Mode
Operation
? Fixed 500kHz Switching Frequency
? AAM Power-Save Mode for High Efficiency
at Light Load
? Internal Soft-Start
? Over-Current Protection and Hiccup
? Thermal Shutdown
? Output Adjustable from 0.8V
? Available in a 6-pin TSOT-23 package
? GameStations
? Digital Set-Top Boxes
? Flat-Panel Television and Monitors
? General Purposes
