Low Voltage SPST 0.8Ω Analog Switch, PI5A3166 Replace TS5A3166.
PI5A3166
PI5A3166.pdf
PI5A3166.pdfFEATURES
? CMOS Technology for Bus and Analog Applications
? Low On-Resistance: 0.802 at 3.0V
? Wide Vcc Range: 1.65V to 5.5V
? Rail-to-Rail Signal Range
? Control Input Overvoltage Tolerance: 5.5V
? Fast Transition Speed: 2ns at 5.0V
? High Bandwidth: 20oMHz
? Extended Industrial Temperature Range:
-40°C to 85°C
? I/O pins Has Power-off Protection Function
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Packaging (Pb-free & Green):
5-pin SOT23
5-pin SC70

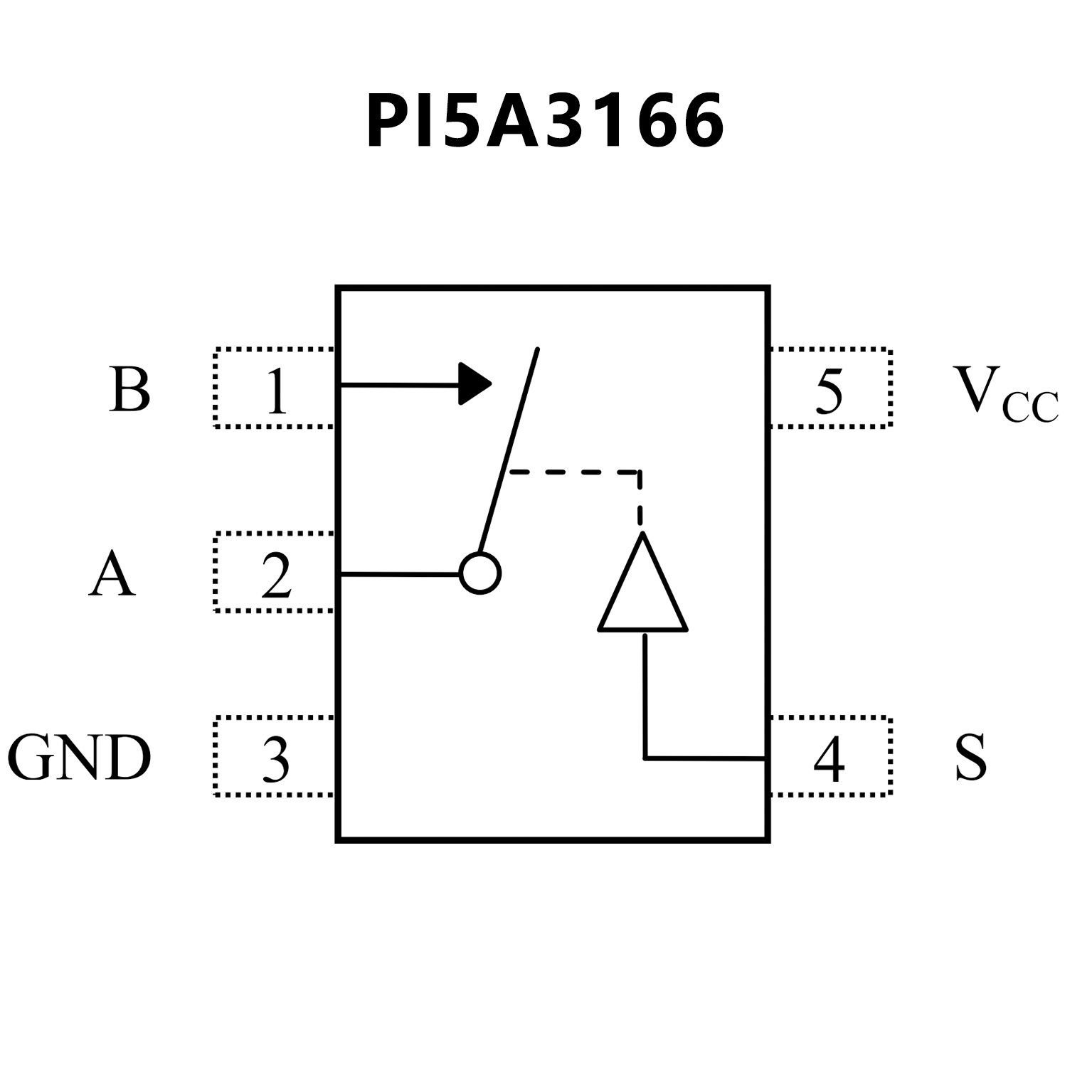

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low ON-State Resistance (0.9 Ω)
? Control Inputs Are 5.5-V Tolerant
? Low Charge Injection
? Low Total Harmonic Distortion (THD)
? 1.65-V to 5.5-V Single-Supply Operation
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)

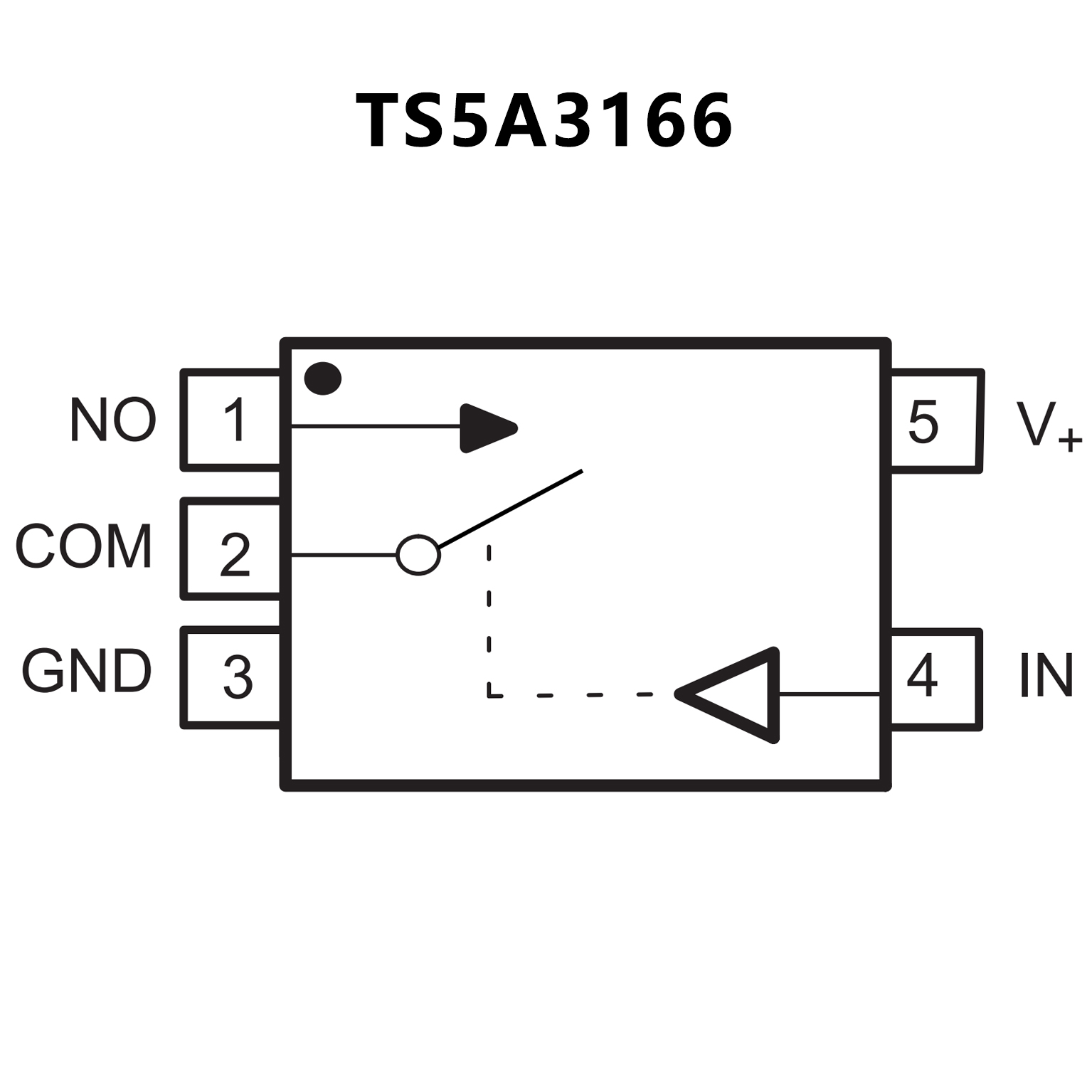

PIN CONFIGUTION
