16-bit I2C-bus and SMBus I/O port with interrupt, PI4IOE5V9535 Replace PCA9535PW.
PI4IOE5V9535
PI4IOE5V9535.pdf
PI4IOE5V9535.pdfFEATURES
? Operation power supply voltage from 2.3V to 5.5V
? 16-bit I/O pins which can be programmed as Input or
Output
? 5V tolerant I/Os
? Polarity inversion register
? Active LOW interrupt output
? Low current consumption
? 0Hz to 400KHz clock frequency
? Noise filter on SCL/SDA inputs
? Power-on reset
? ESD protection (4KV HBM and 1KV CDM)
? Latch-up tested (exceeds 100mA)
? Offered in two different packages: TSSOP-24 and
TQFN 4x4-24

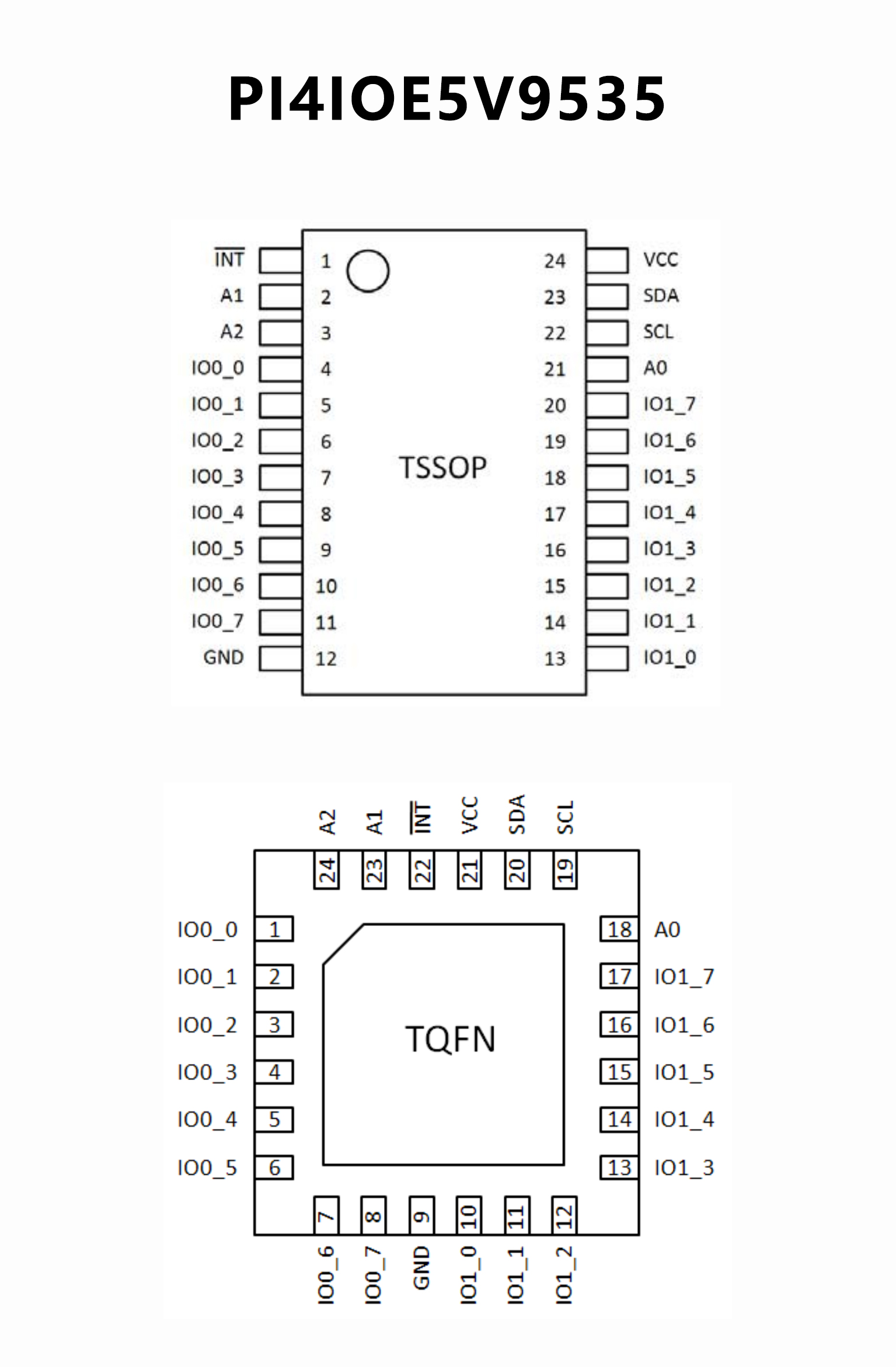

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Operating power supply voltage range of 2.3 V to 5.5 V
? 5 V tolerant I/Os
? Polarity Inversion register
? Active LOW interrupt output
? Low standby current
? Noise filter on SCL/SDA inputs
? No glitch on power-up
? Internal power-on reset
? 16 I/O pins which default to 16 inputs
? 0 Hz to 400 kHz clock frequency
? ESD protection exceeds 2000 V HBM per JESD22-A114,
200 V MM per JESD22-A115, and 1000 V CDM per
JESD22-C101
? Latch-up testing is done to JEDEC Standard JESD78
which exceeds 100 mA
? Offered in four different packages: SO24, TSSOP24,
HVQFN24 and HWQFN24

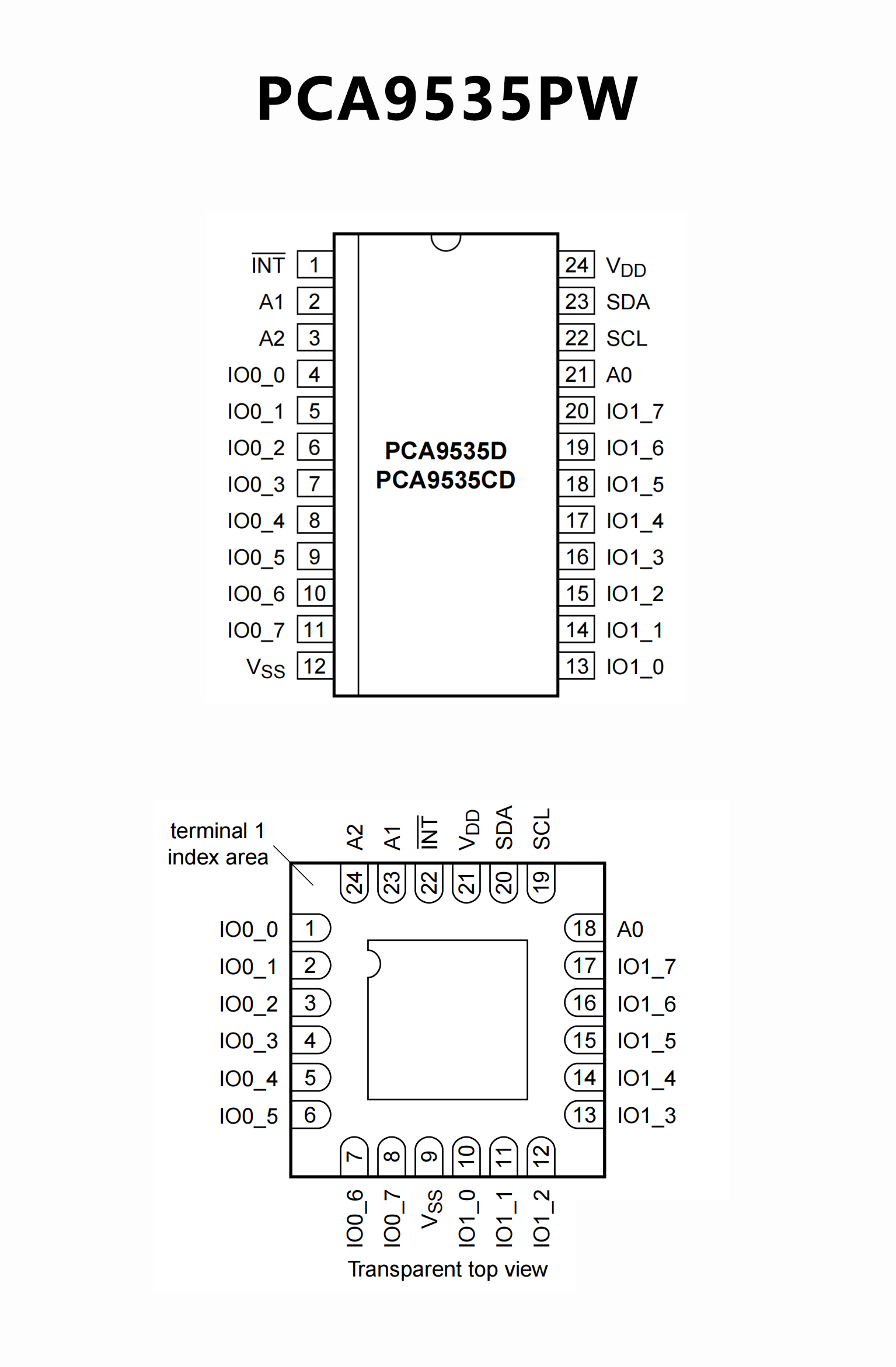

PIN CONFIGUTION
