Three-channel linear LED driver with PWM dimming function, MEDS92630 Replace TPS92630.
MEDS92630
MEDS92630.pdf
MEDS92630.pdfFEATURES
? AEC-Q100 qualified with the following results:
-Device temperature Grade1:-40~125℃ ambient
operating temperature range;
? 3-channel LED driver (with analog and PWM
dimming)
? Wide input voltage range: 5V-40V
? Adjustable constant output current set by
reference resistor
Maximum current: 150mA per channel
Maximum current: 450mA in parallel operation
mode
Accuracy: ±2% per channel at I(IOUTX) > 30mA
Accuracy: ±2.5% per device at I(IOUTX) > 30mA
? Use multiple ICs or multiple channels of a single IC
in parallel to achieve higher current
? Low voltage drop
Maximum voltage drop: 400mV per channel at
60mA
Maximum voltage drop: 0.9V per channel at 150mA
Each channel performs PWM dimming independently
? Open and short circuit LED detection with anti-burr
pulse timer
? Voltage feedback of each channel LED lamp string
is used for single LED short circuit detection
? Independent fault pin for single LED short circuit
fault

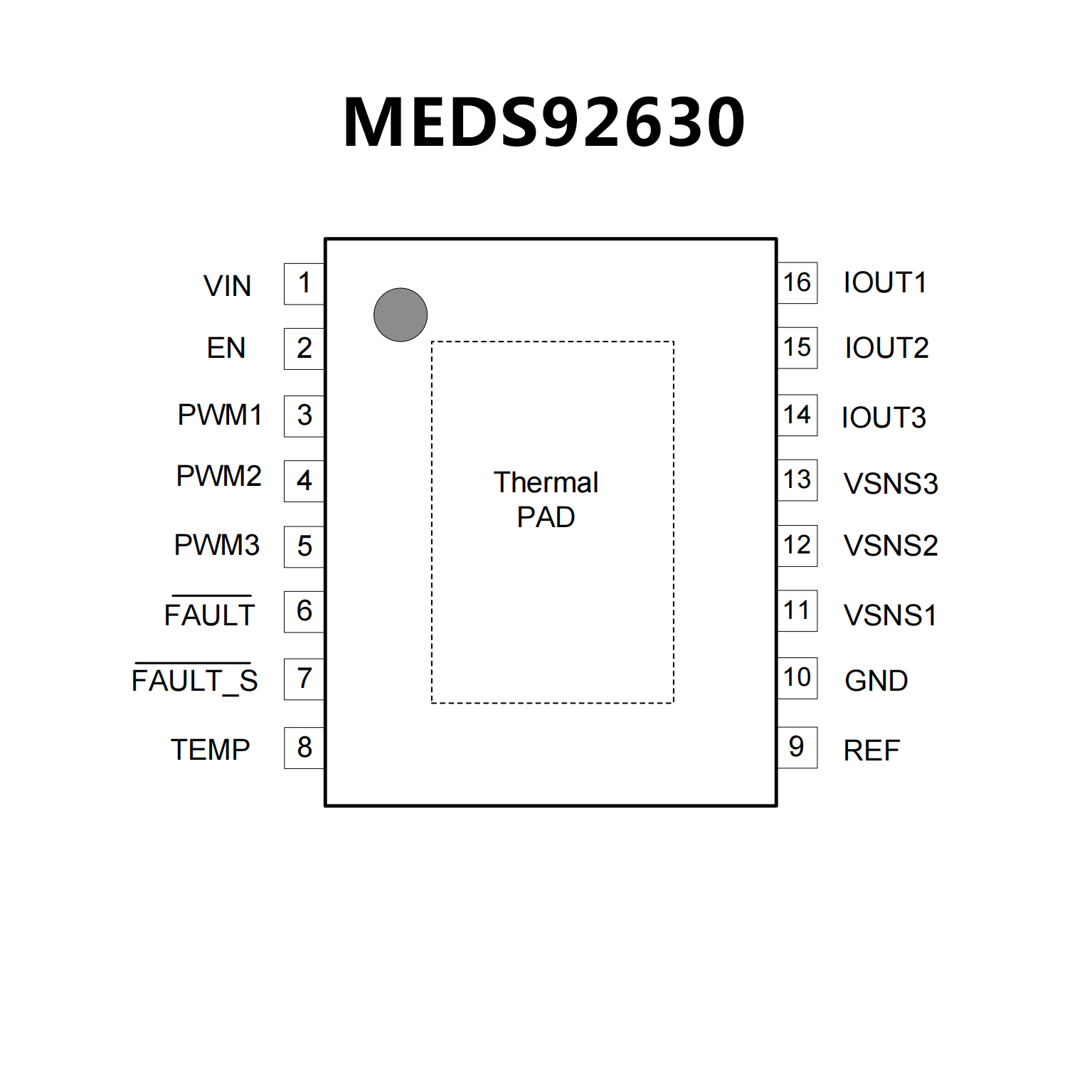

PIN CONFIGUTION
優勢替代
FEATURES
? 符合汽車類應用的 標準
? 具有符合 AEC-Q100 標準的下列結果：
– 器件溫度 1 級：–40°C 至 125°C 的環境運行溫度范圍
– 器件 HBM ESD 分類等級 H2
– 器件 CDM ESD 分類等級 C3B
? 3 通道 LED 驅動器（具有模擬和 PWM 調光功能）
? 寬輸入電壓范圍：5V - 40V
? 由基準電阻器設定的可調恒定輸出電流
– 最大電流：每通道 150mA
– 最大電流：并聯運行模式下為 450mA
– 精度：當 I(IOUTx) > 30mA 時，每通道 ±1.5%
– 精度：當 I(IOUTx) > 30mA 時，每器件 ±2.5%
? 使用多個 IC 或者單個 IC 的多個通道的并聯輸出，
以實現更高電流
? 低壓降電壓
– 最大壓降：電流為 60mA 時每通道 400mV
– 最大壓降：電流為 150mA 時每通道 0.9V
? 每個通道獨立進行 PWM 調光
? 具有抗毛刺脈沖計時器的開路和短路 LED 檢測
? 每條通道的 LED 燈串電壓反饋，用于單個LED短路檢測
? 針對單個 LED 短路故障的獨立故障引腳

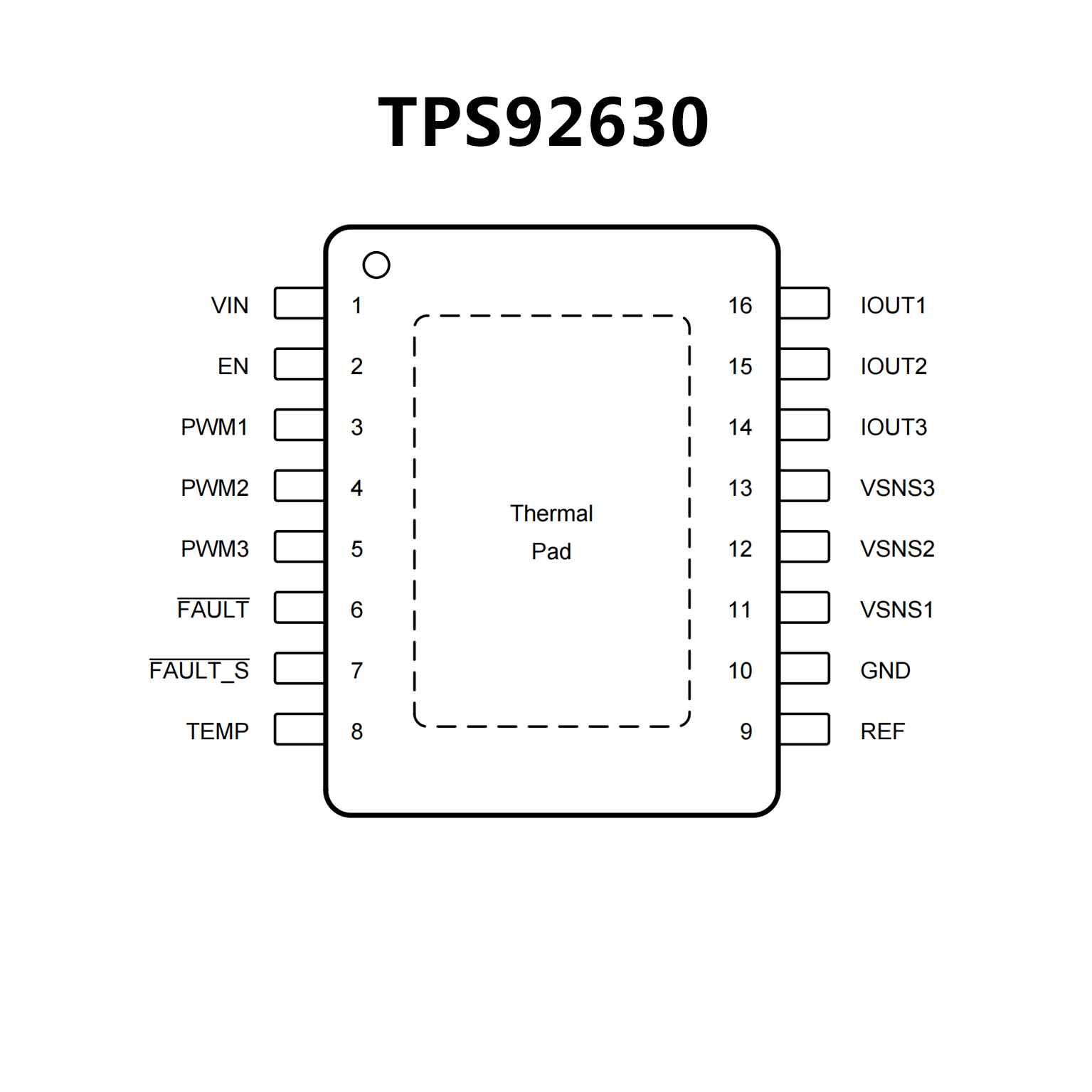

PIN CONFIGUTION
