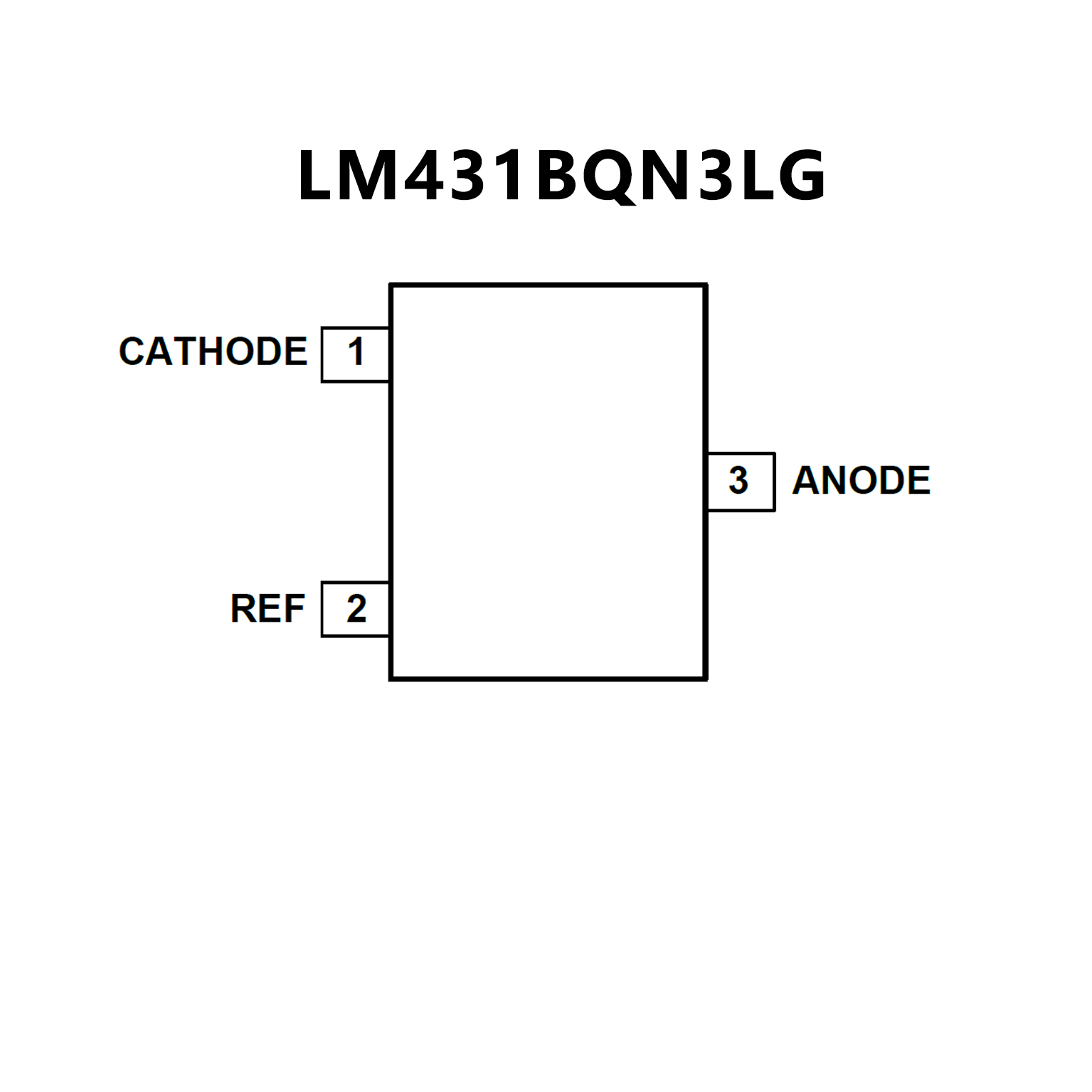

LM431BQ.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Adjustable Output Voltage: VREF to 36V
? Sink-Current Capability: 1mA to 100mA
? Reference Voltage Tolerance at +25℃: 0.5%
? Temperature Drift: 5mV (TYP)
? Output Impedance: 0.1Ω (TYP)
? High Stability under Capacitive Load
? Low Output Noise
? Operating Junction Temperature Range:
40℃ to +125℃
? Available in a Green SOT-23 Package

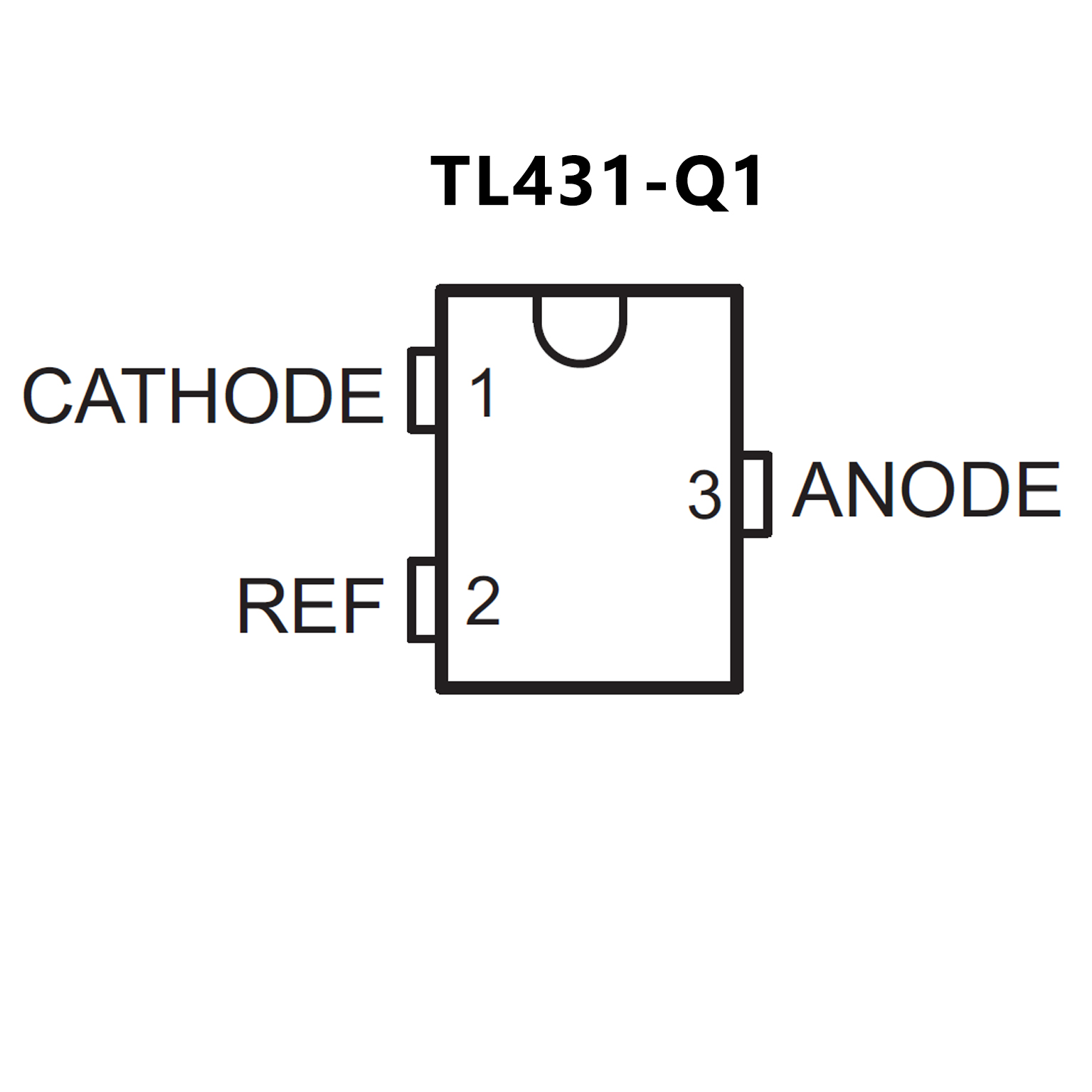

? Reference voltage tolerance at 25°C
0.5% (B grade)
1% (A grade)
2% (Standard grade)
? Adjustable output voltage: Vref to 36 V
? Operation from ?40°C to 125°C
? Typical temperature drift (TL43xB)
6 mV (C temp)
14 mV (I temp, Q temp)
? Low Output Noise
? 0.2-Ω Typical output impedance
? Sink-current capability: 1 mA to 100 mA
