1.5A DDR Termination Regulator,EUP7996 Replace LP2996.
EUP7996
EUP7996.pdf
EUP7996.pdfFEATURES
? Extremely low quiescent current (305uA)
? Fast transient response time
? Capable of sourcing and sinking 1.5A for DDR-I
termination
? Reference out for other memory and control
components
? Low-current shutdown mode
? Over-temperature protection
? High accuracy output voltage at full-load
? Low external component count
? Available in SOP-8, SOP(FD) package
? RoHS compliant and 100% lead (Pb)-free

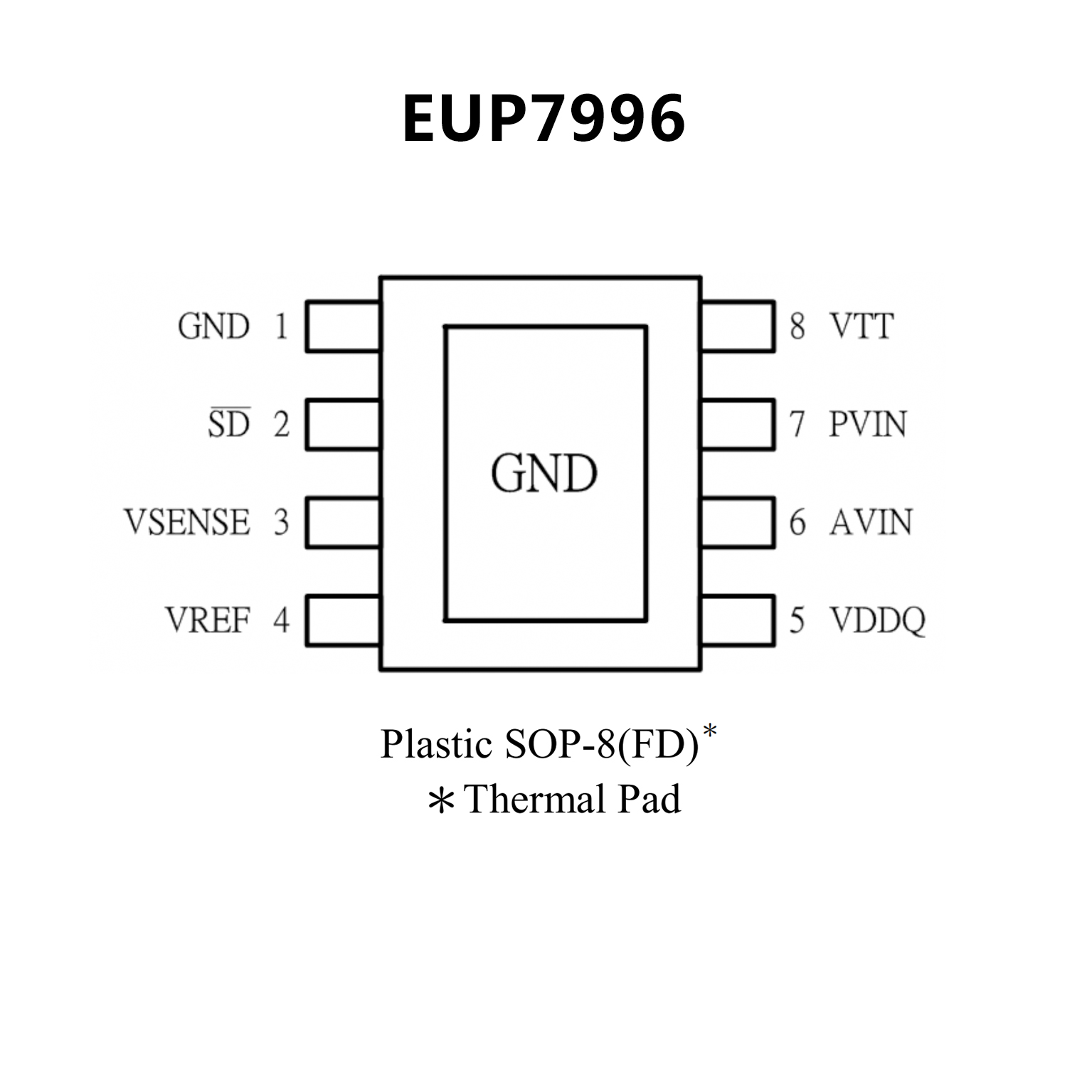

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Source and sink current
? Low output voltage offset
? No external resistors required
? Linear topology
? Suspend to Ram (STR) functionality
? Low external component count
? Thermal Shutdown
? Available in SO-8, PSOP-8 or LLP-16 packages

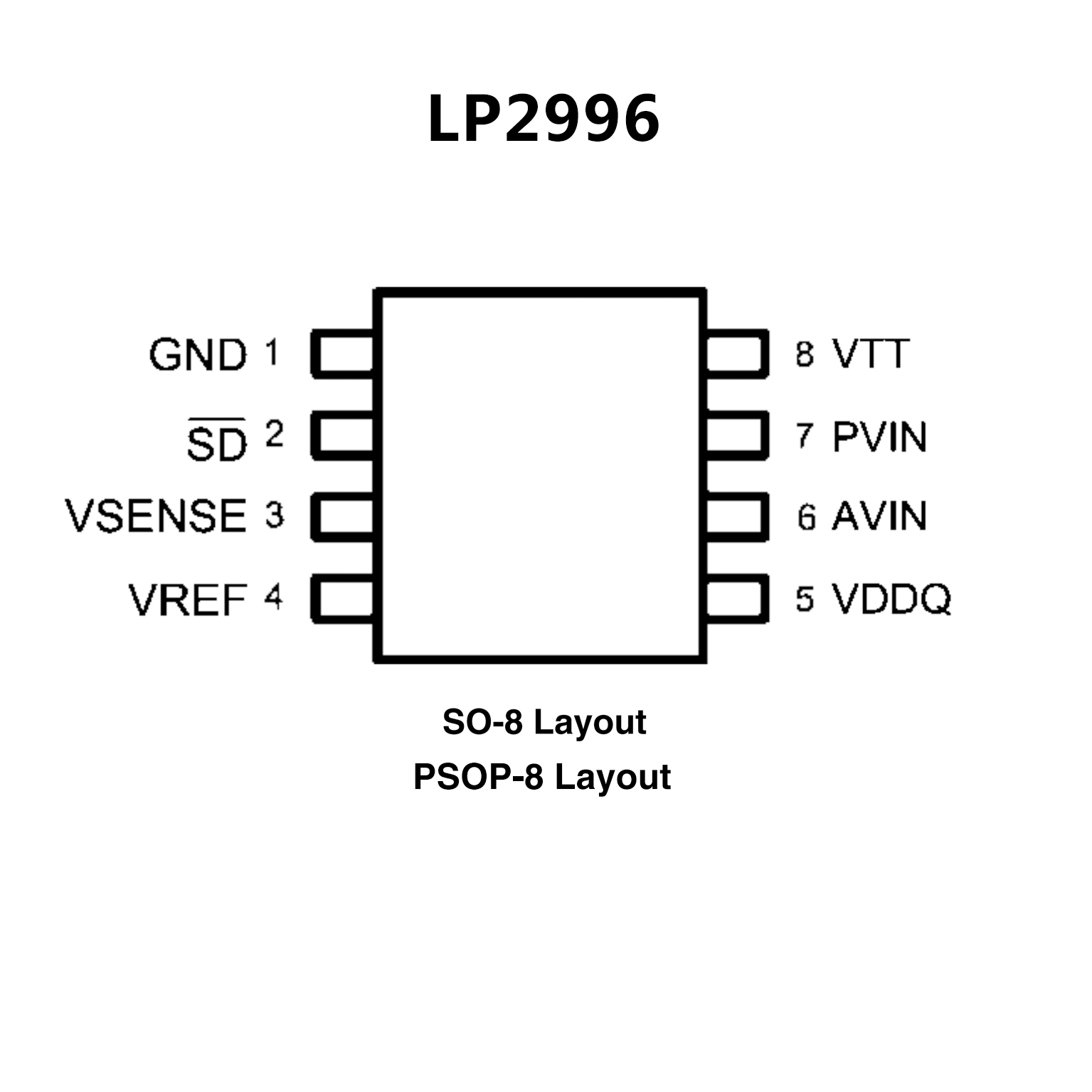

PIN CONFIGUTION
