300mA Low-Noise LDO Without Bypass Capacitor, EUP7913A Replace TPS799xx.
EUP7913A
EUP7913A.pdf
EUP7913A.pdfFEATURES
? 2.5V to 5.5V Input Voltage Range
? 30μV(rms) Output Noise
? 200mV Dropout @ 300mA
? 70dB PSRR at 1kHz No Bypass Capacitor
? Low 30μA Ground Current
? Guaranteed 300mA Output Current
? Stable with a 1μF Ceramic Output Capacitor When
VOUT ≥ 1.5V, or 2.2μF when VOUT<1.5V
? Excellent Load/Line Transient
? Thermal Shutdown and Current Limit Protection
? Available 1.2V to 3.6V fixed output voltages
(50mV increments)
? Space-Saving SOT23-3 & SOT23-5 Package
? RoHS Compliant and 100% Lead (Pb)-Free

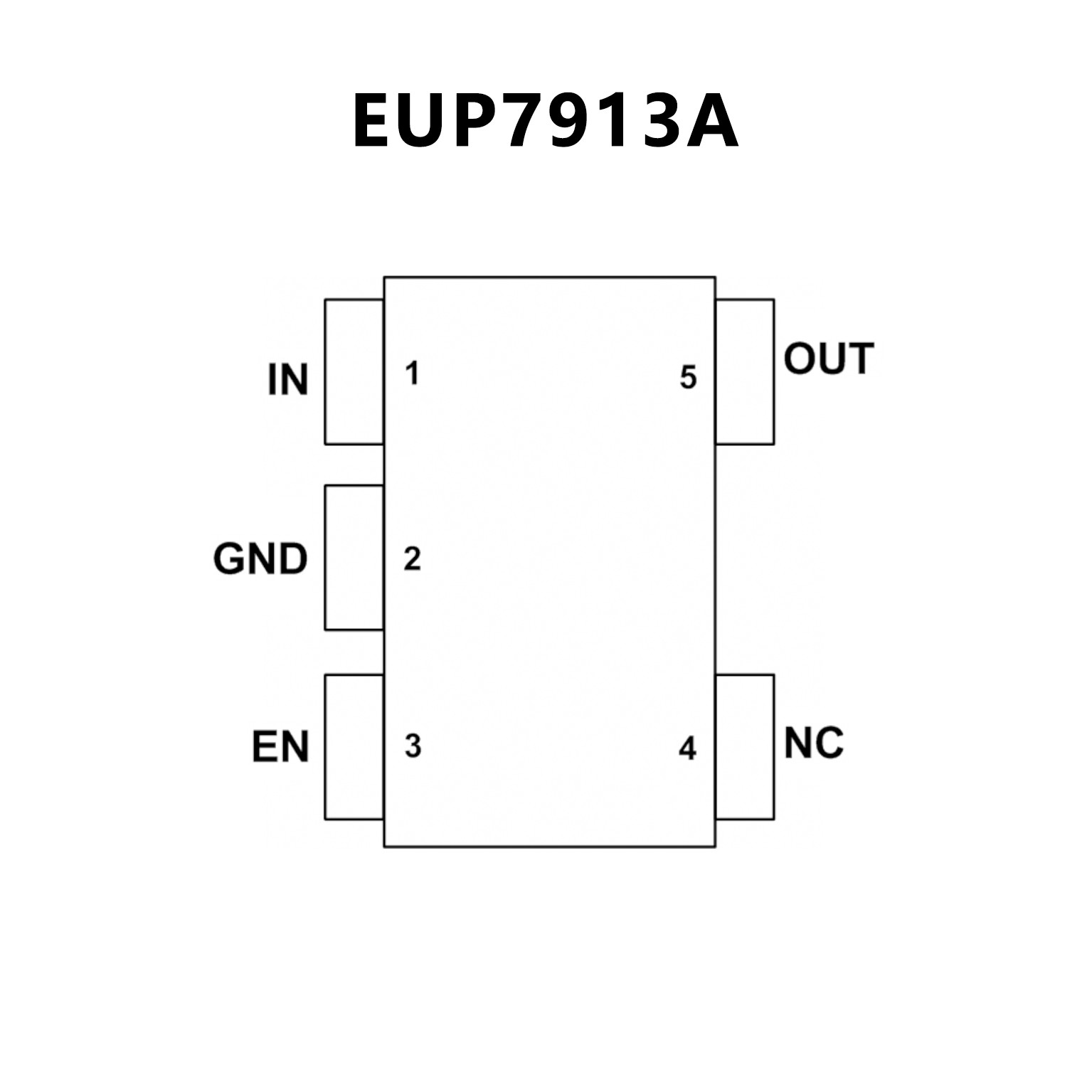

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 200-mA low-dropout regulator with EN
? Multiple output voltage versions available:
– Fixed outputs of 1.2 V to 4.5 V
– Adjustable outputs from 1.20 V to 6.5 V
? Inrush current protection with EN toggle
? Low IQ: 40 μA
? High PSRR:
– 66 dB at 1 kHz
– 51 dB at 10 kHz
? Stable with a low-ESR, 2-μF typical output
capacitance
? Excellent load and line transient response
? 2% overall accuracy (load, line, and temperature)
? Very low dropout: 100 mV
? Packages:
– 5-bump, thin, 0.97-mm × 1.34-mm DSBGA
– 5-pin SOT-23-THIN
– 6-pin WSON

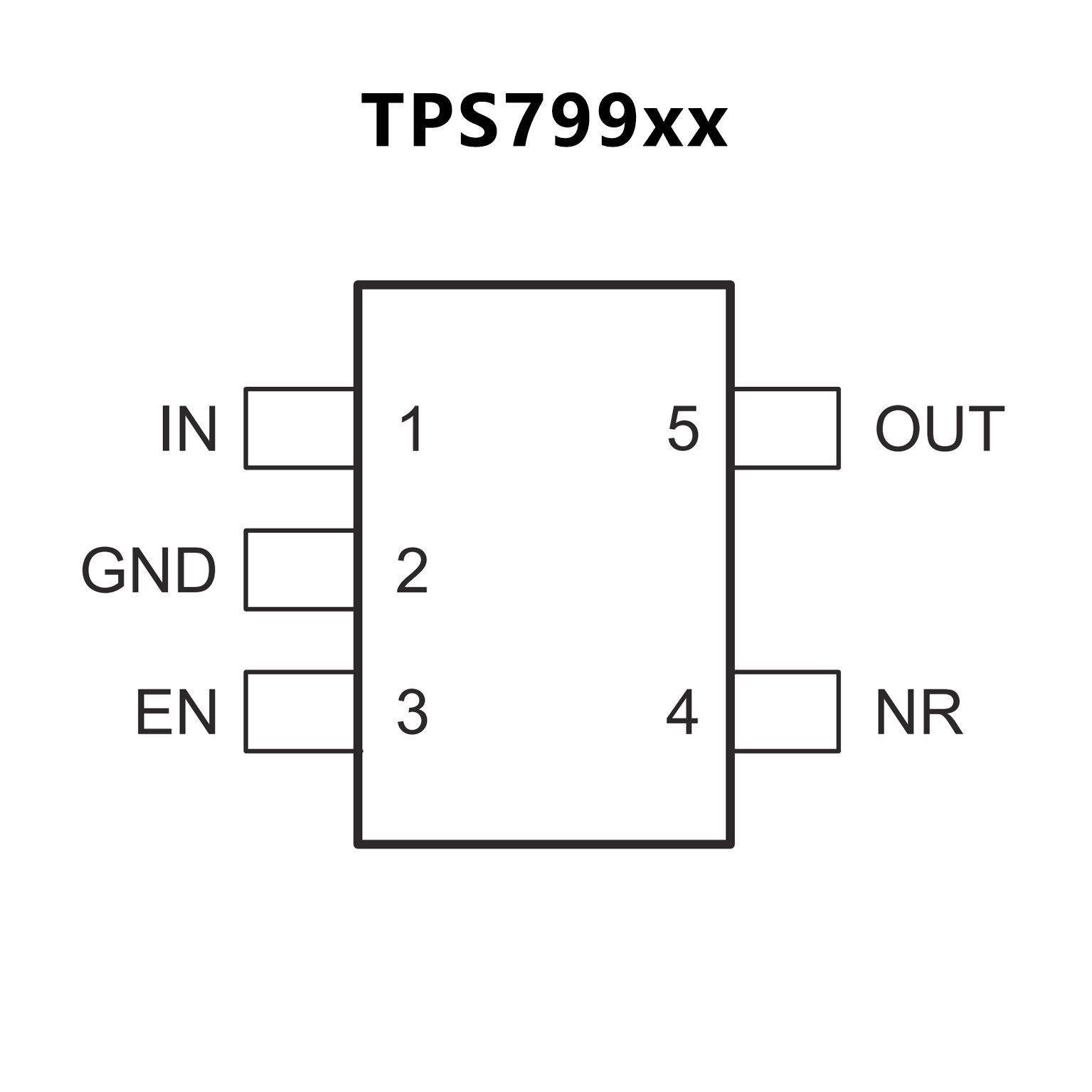

PIN CONFIGUTION
