USB Power-Distribution Switch with Fault Blanking, EUP3550 Replace G517.
EUP3550
EUP3550.pdf
EUP3550.pdfFEATURES
? 70mΩ(typ.) Power MOSFET
? Operating Range : 2.7V to 5.5V
? Under Voltage Lockout
? 17μA Quiescent Current
? 1μA Maximum Shutdown Shutdown Current
? No Reverse Current when Power Off
? Fault Blanking Open-Drain Over-Current Flag
Output OCB
? Output Shutdown Pull-low Resistor
? Available with 3 Versions of Current Limits with
Foldback.
? Enable Active-High or Active-Low
? Available in SOT23-5 and MSOP-8 Packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

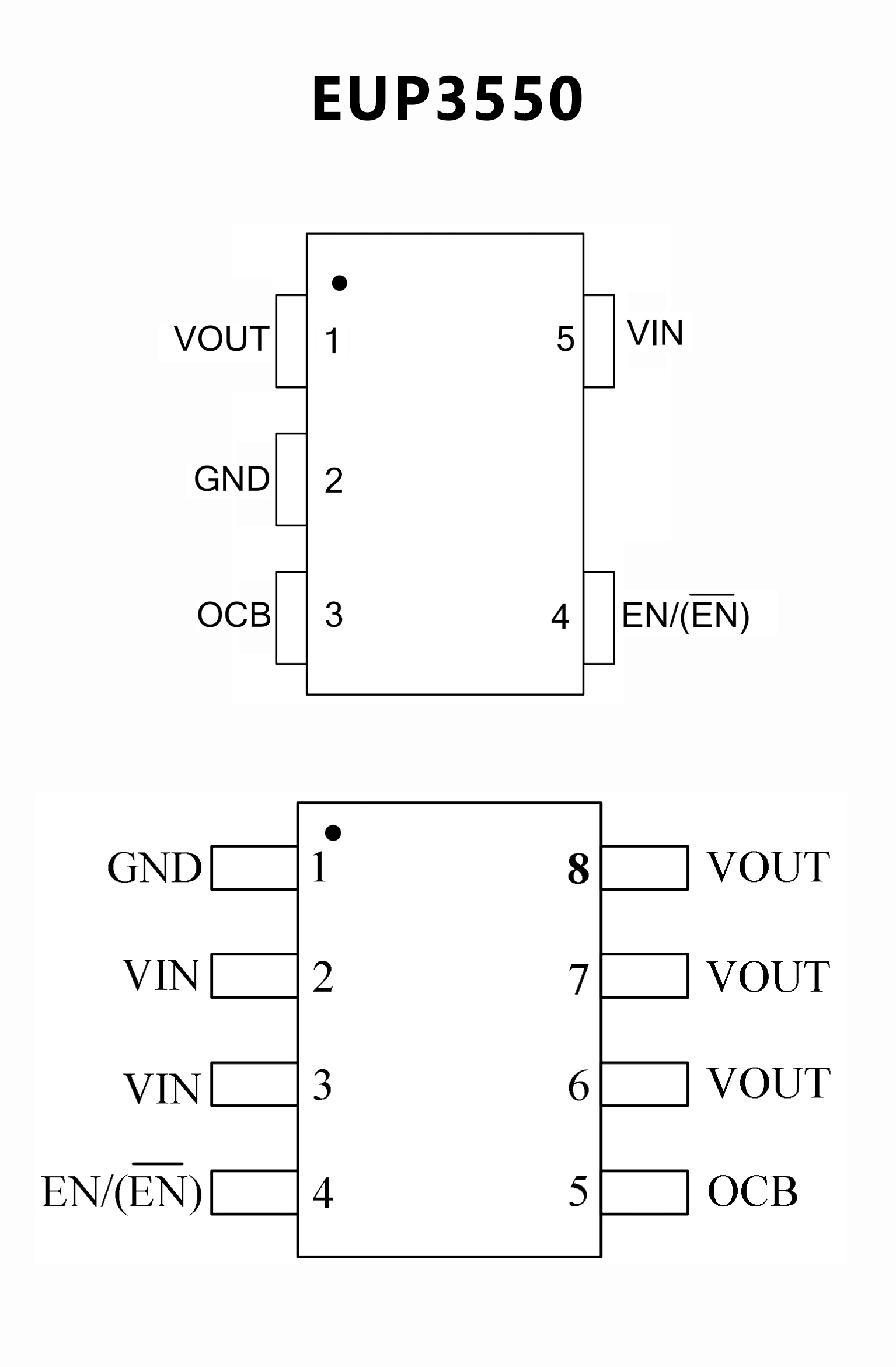

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 40mΩ/70mΩ High-Side MOSFET
? Available with Current Limits with Foldback
? Operating Range:2.7V to 5.5V
? 1mS Typical Rise Time
? Fast Overcurrent Response -1.5μs (TYPICAL)
? Under voltage Lockout
? Logic Level Enable Pin, Available with
Active-High or Active-Low Version
? No Reverse Current when Power Off
? Deglitched Open-Drain Over-Current Flag
Output (FLAG)
? Output Reverse Current Protection
? SOT-23-5, TSOT-23-6, TDFN2x2-6, WDFN2x2-6,
TSOT-23-6 FC, TSOT-23-5 FC, and MSOP-8
Packages (Halogen Free/Pb Free)
? UL Certification_#E232223
? CB Test Certification by IEC 60950-1:2005/ EN
60950-1:2006

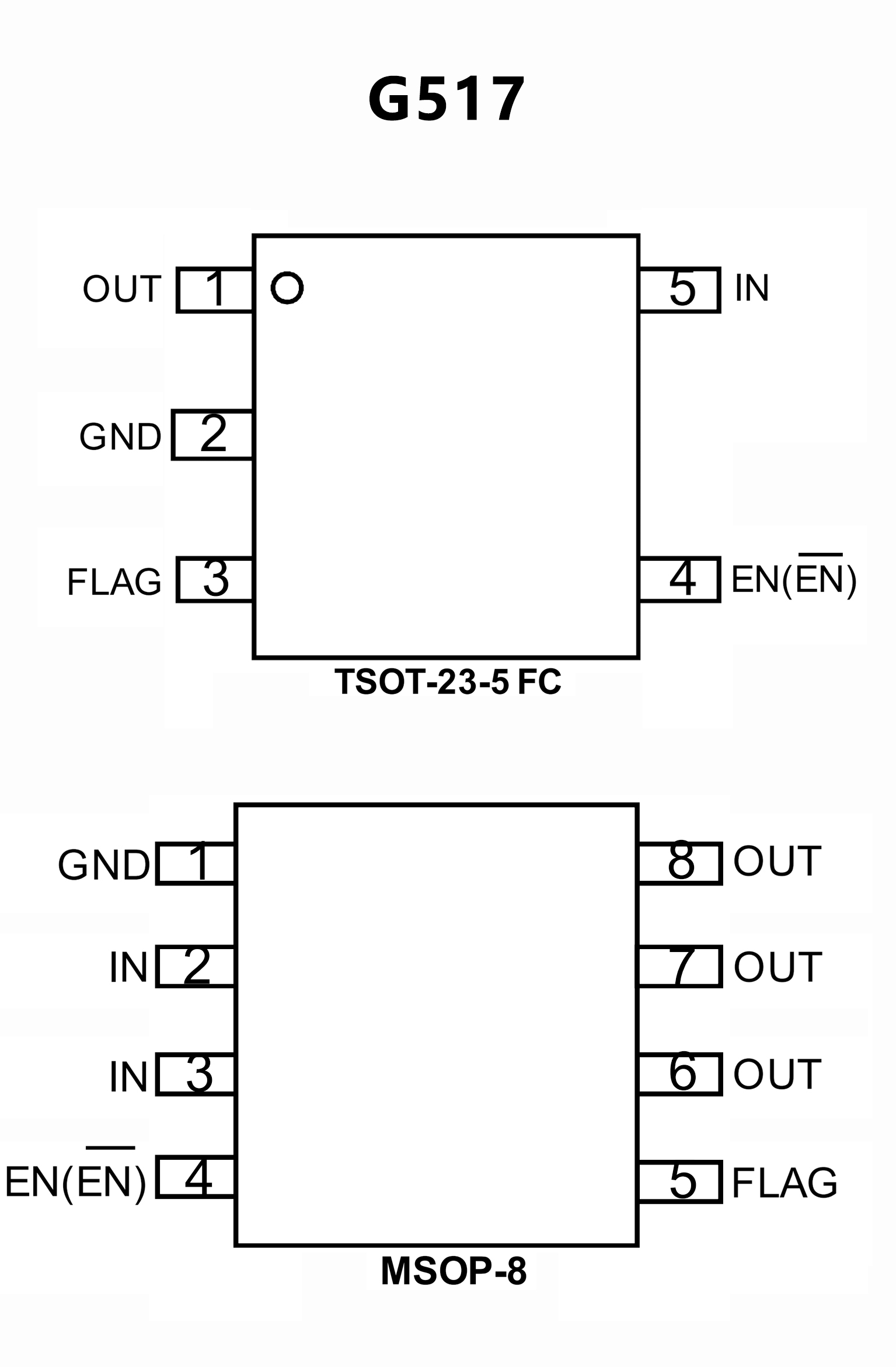

PIN CONFIGUTION
