USB Power-Distribution Switch with Fault Blanking, EUP3550 Replace FP6861.
EUP3550
EUP3550.pdf
EUP3550.pdfFEATURES
? 70mΩ(typ.) Power MOSFET
? Operating Range : 2.7V to 5.5V
? Under Voltage Lockout
? 17μA Quiescent Current
? 1μA Maximum Shutdown Shutdown Current
? No Reverse Current when Power Off
? Fault Blanking Open-Drain Over-Current Flag
Output OCB
? Output Shutdown Pull-low Resistor
? Available with 3 Versions of Current Limits with
Foldback.
? Enable Active-High or Active-Low
? Available in SOT23-5 and MSOP-8 Packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

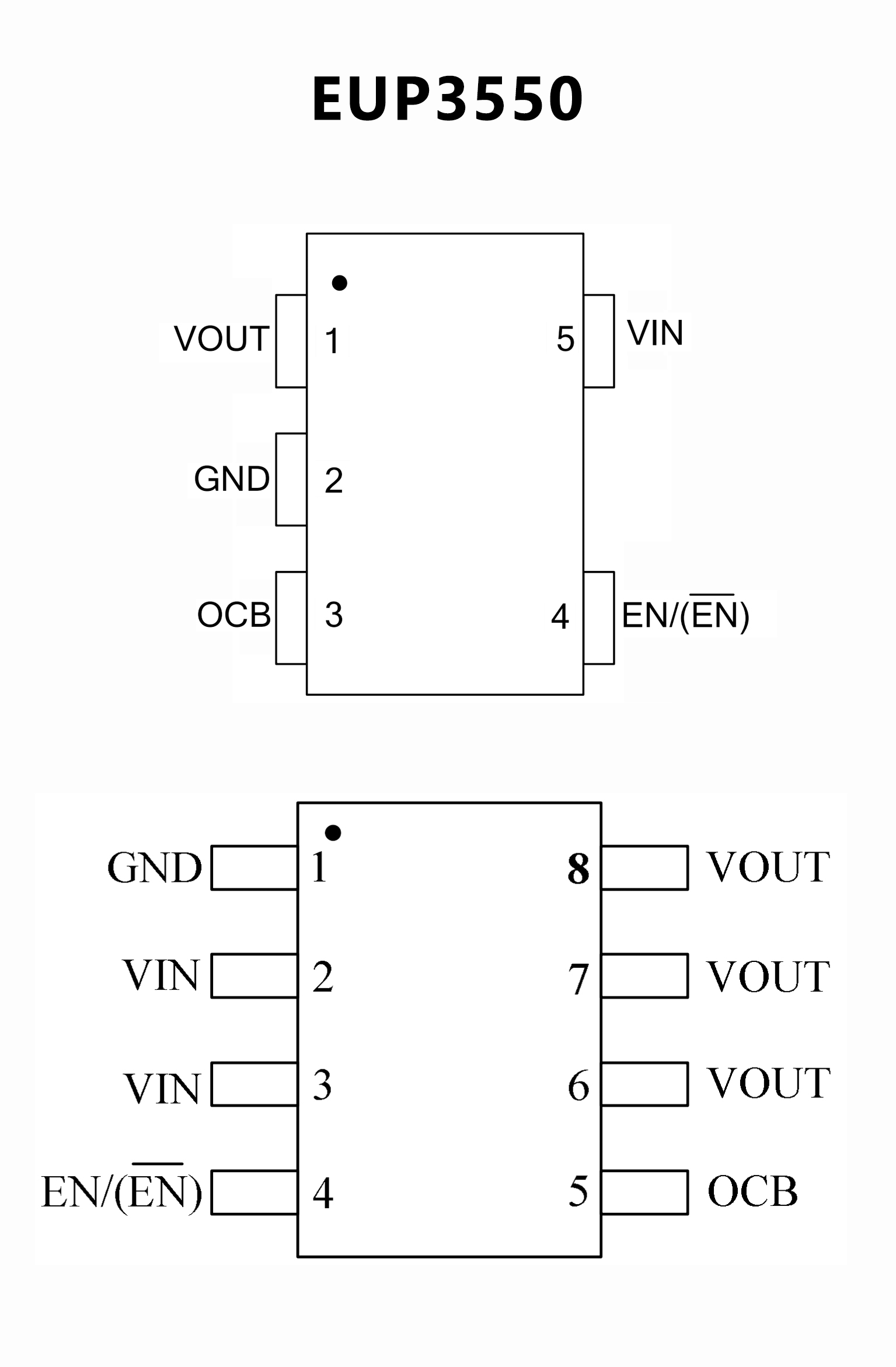

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Compliant to USB Specifications
? Built-In Low RDS(ON) N-Channel MOSFET
? Output can be Forced Higher than Input (Off-State)
? Wide Input Voltage Ranges: 2.7V to 5.5V
? Open-Drain Fault Flag Output
? Hot Plug-In Application (Soft-Start)
? 2.2V Typical Under-Voltage Lockout (UVLO)
? Current Limit Protection
? Thermal Shutdown Protection

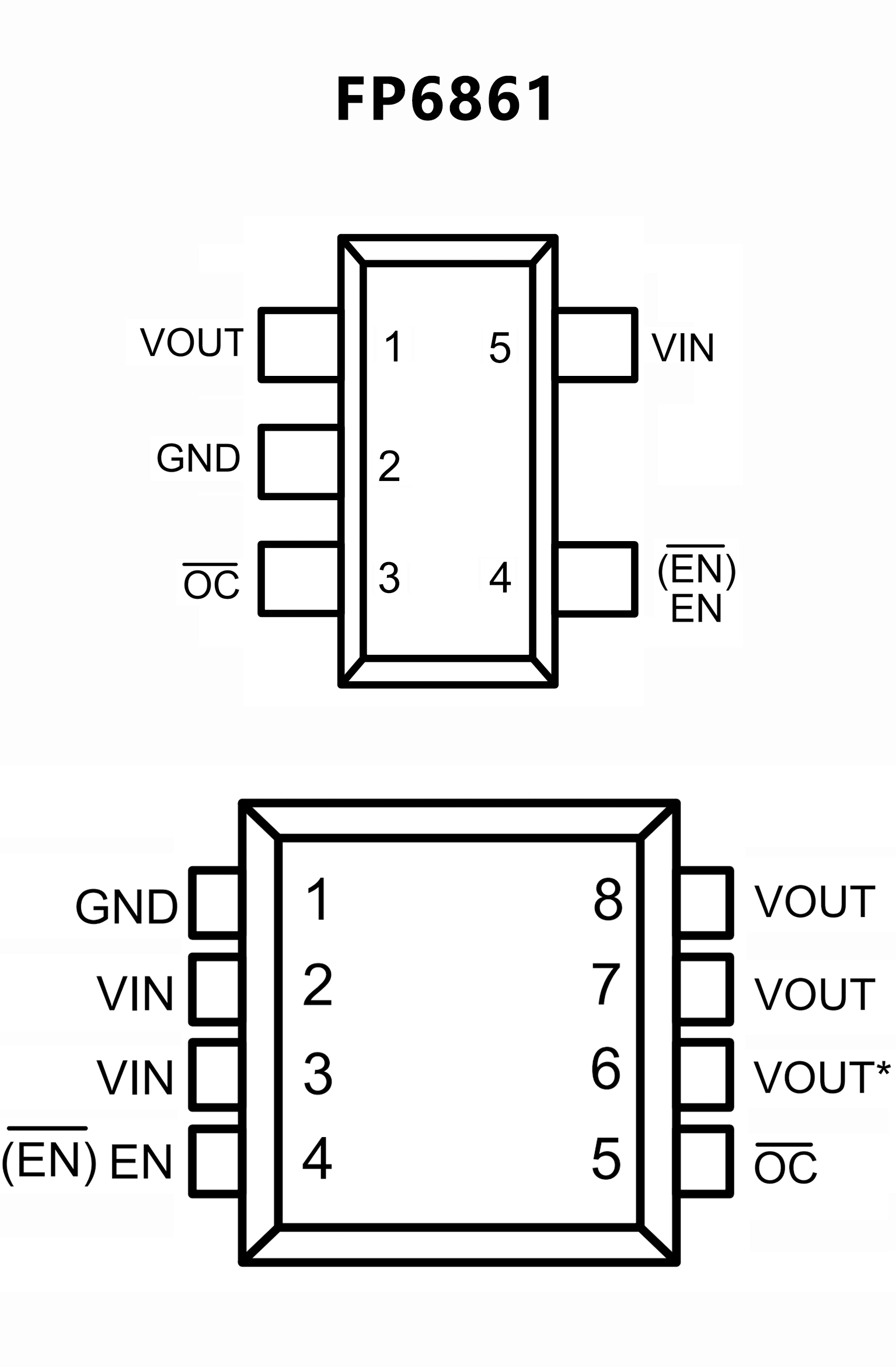

PIN CONFIGUTION
