USB Power-Distribution Switch with Fault Blanking, EUP3550 Replace DIO7002.
EUP3550
EUP3550.pdf
EUP3550.pdfFEATURES
? 70mΩ(typ.) Power MOSFET
? Operating Range : 2.7V to 5.5V
? Under Voltage Lockout
? 17μA Quiescent Current
? 1μA Maximum Shutdown Shutdown Current
? No Reverse Current when Power Off
? Fault Blanking Open-Drain Over-Current Flag
Output OCB
? Output Shutdown Pull-low Resistor
? Available with 3 Versions of Current Limits with
Foldback.
? Enable Active-High or Active-Low
? Available in SOT23-5 and MSOP-8 Packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

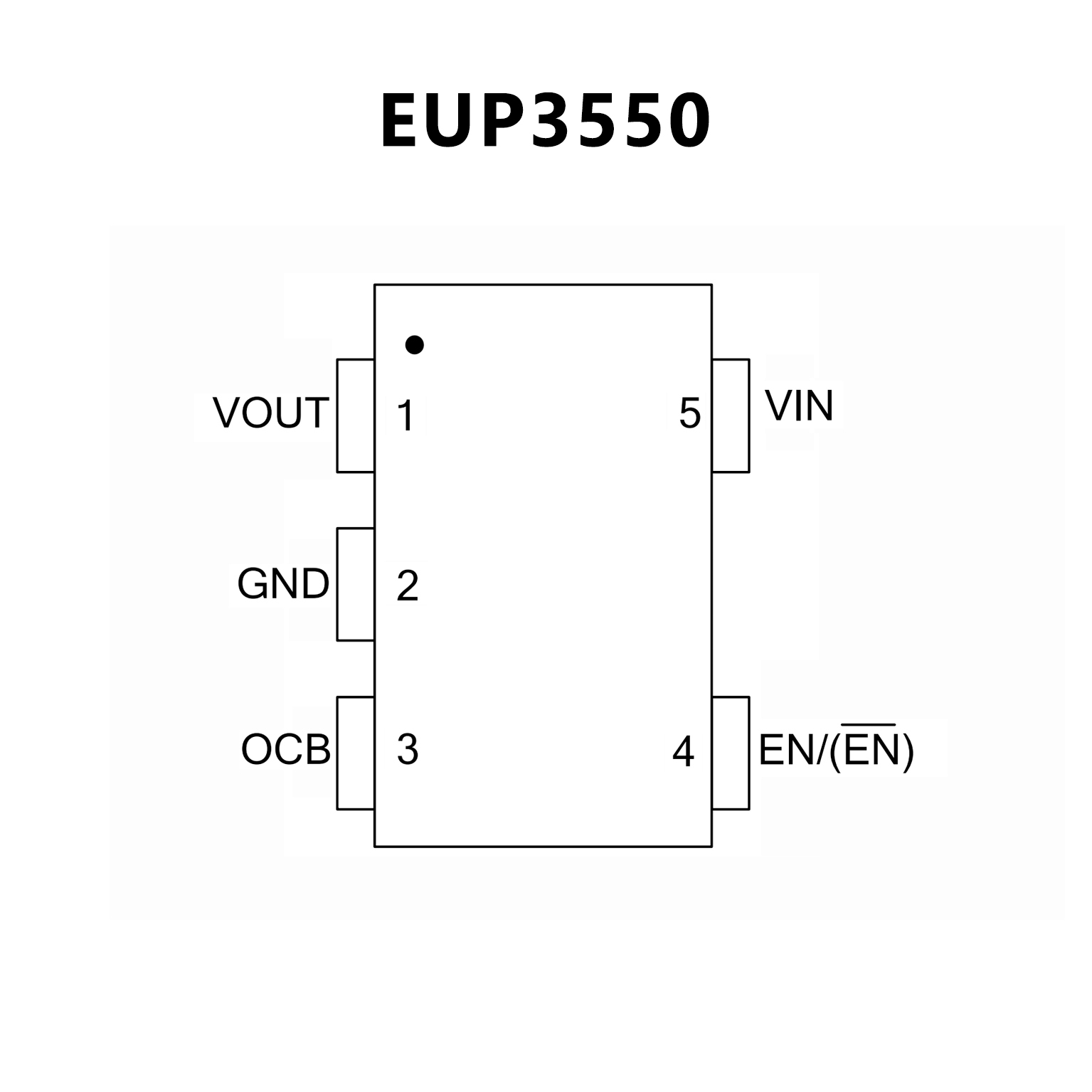

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Input voltage: 2.7V to 5.5V
? Typical 70m? on-resistance
? 2.5A load current capability
? Programmable current limit
? Enable polarity:
DIO7002A: Active high
DIO7002B: Active Low
? Over current protection, short circuit protection and
over temperature protection
? Reverse blocking (no body diode)
? No reverse current when power ON or power OFF
? Compact SOT23-5 package minimizes the board space

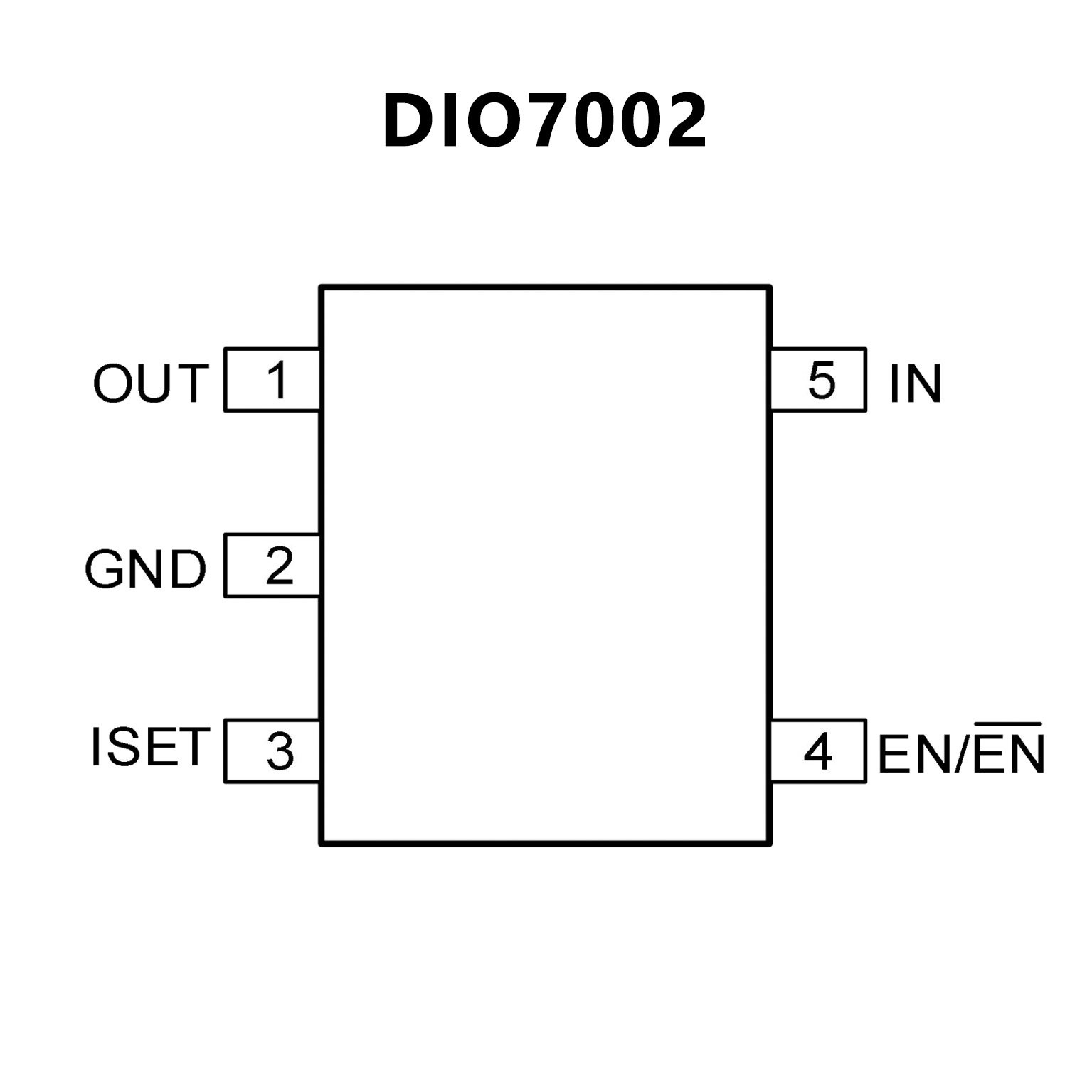

PIN CONFIGUTION
