USB Power-Distribution Switch with Fault Blanking, EUP3550 Replace APL3552.
EUP3550
EUP3550.pdf
EUP3550.pdfFEATURES
? 70mΩ(typ.) Power MOSFET
? Operating Range : 2.7V to 5.5V
? Under Voltage Lockout
? 17μA Quiescent Current
? 1μA Maximum Shutdown Shutdown Current
? No Reverse Current when Power Off
? Fault Blanking Open-Drain Over-Current Flag
Output OCB
? Output Shutdown Pull-low Resistor
? Available with 3 Versions of Current Limits with
Foldback.
? Enable Active-High or Active-Low
? Available in SOT23-5 and MSOP-8 Packages
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

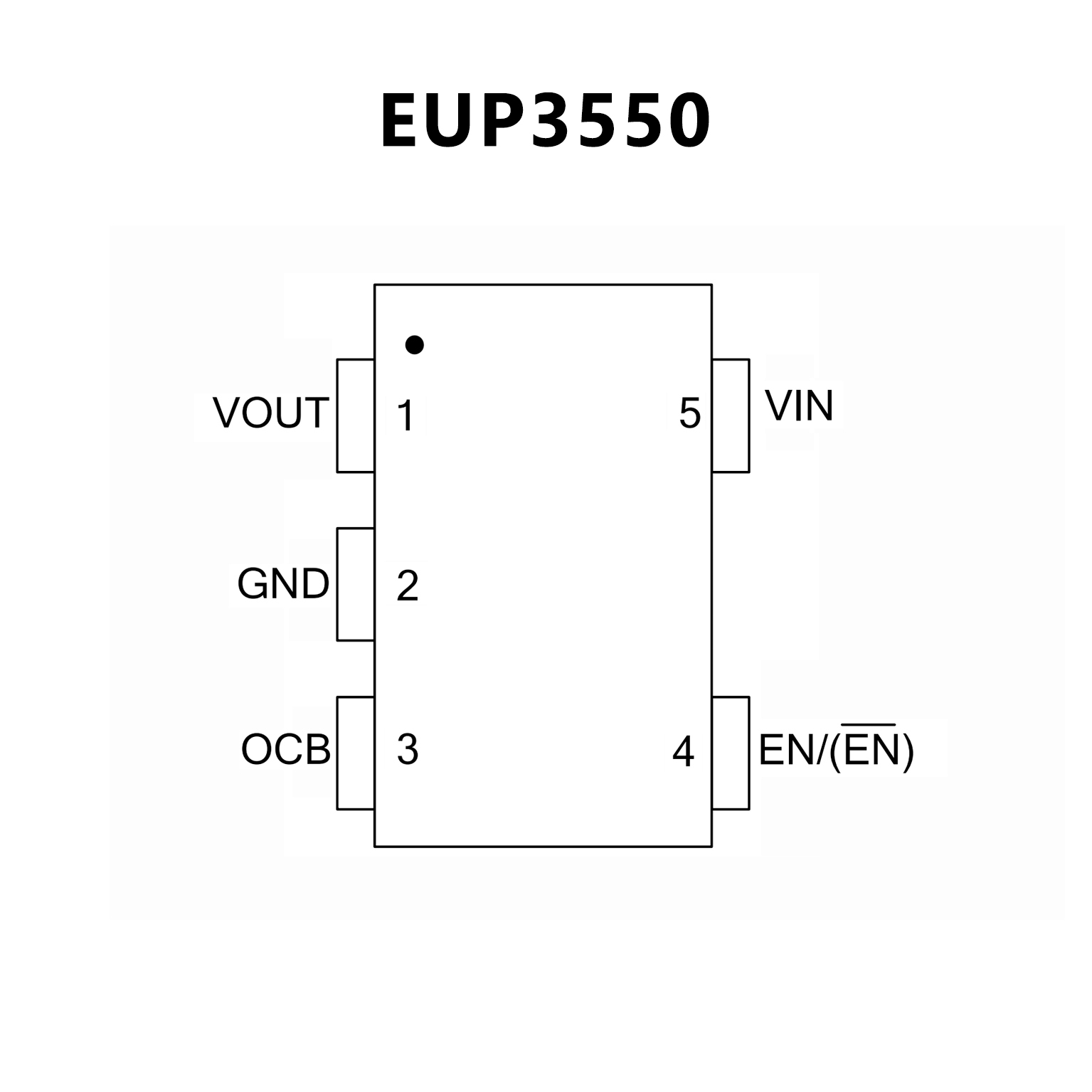

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 62m? Power Switch On Resistance
? Wide Supply Voltage Range: 2.7V to 5.5V
? Adjustable Current Limit Protection
? Fast Over current Response: 2us (typ.)
? Over-Temperature Protection
? Fault Indication Output
? Reverse Input-Output Voltage Protection: 25mV (typ.)
? Enable Input
? Built-in Soft-Start
? UL Approved-File No. E328191
? UL-CB Scheme IEC/EN62368-1 Certified
? TUV IEC/EN62368-1 Certified

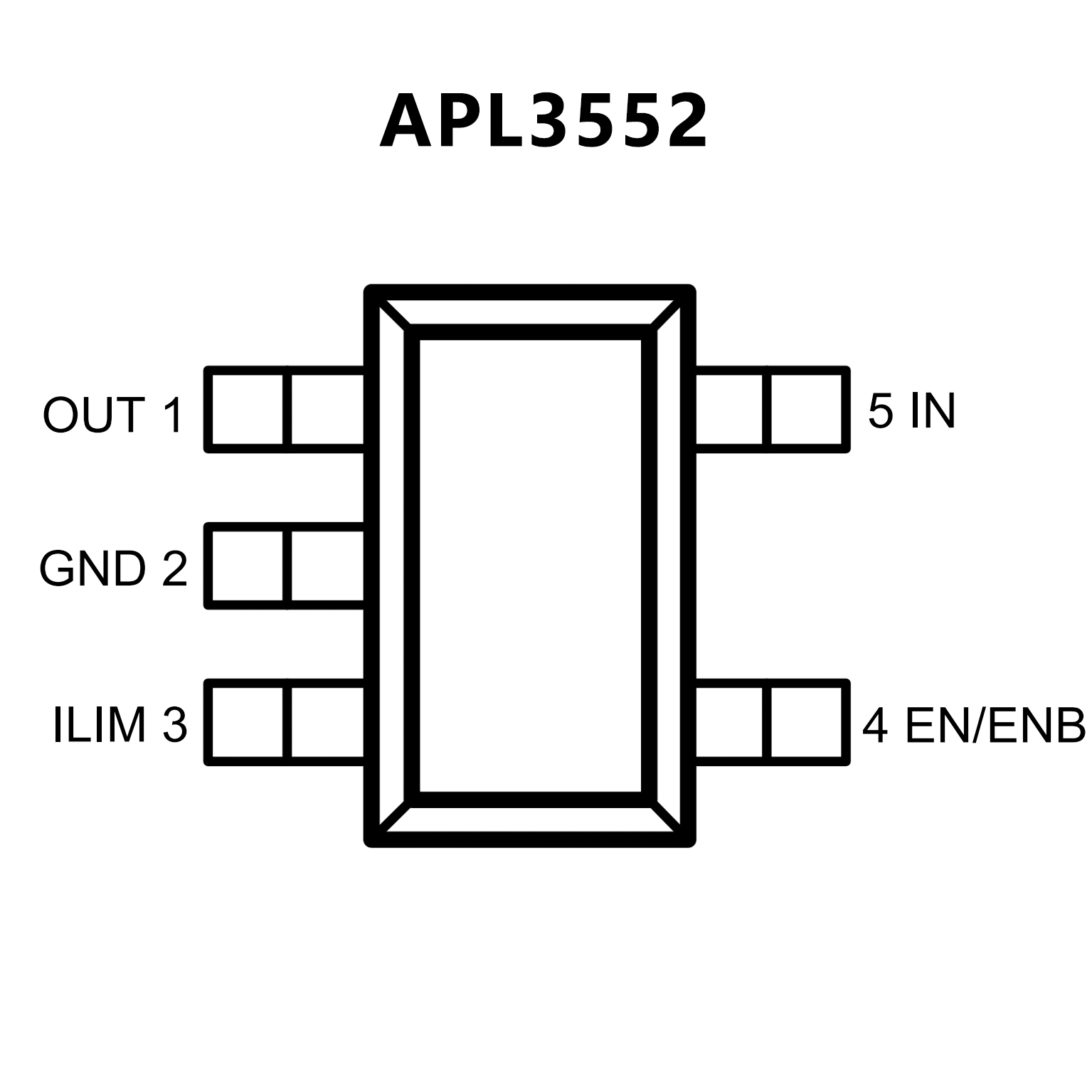

PIN CONFIGUTION
