2A Line Switch with Low On-Resistance, EUP3512A Replace APL3512A.
EUP3512A
EUP3512A.pdf
EUP3512A.pdfFEATURES
? 80mΩ(typ.) Power MOSFET
? Operating Range : 2.7V to 5.5V
? Deliver Current up to 2A
? Under Voltage Lockout
? 24μA Quiescent Current
? 1μA Maximum Shutdown Current
? No Reverse Current when Power Off
? Soft_Start Time Programmable by External capacitor
? Output Shutdown Pull-low Resistor
? Enable Active-High
? Available in SOT23-5
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

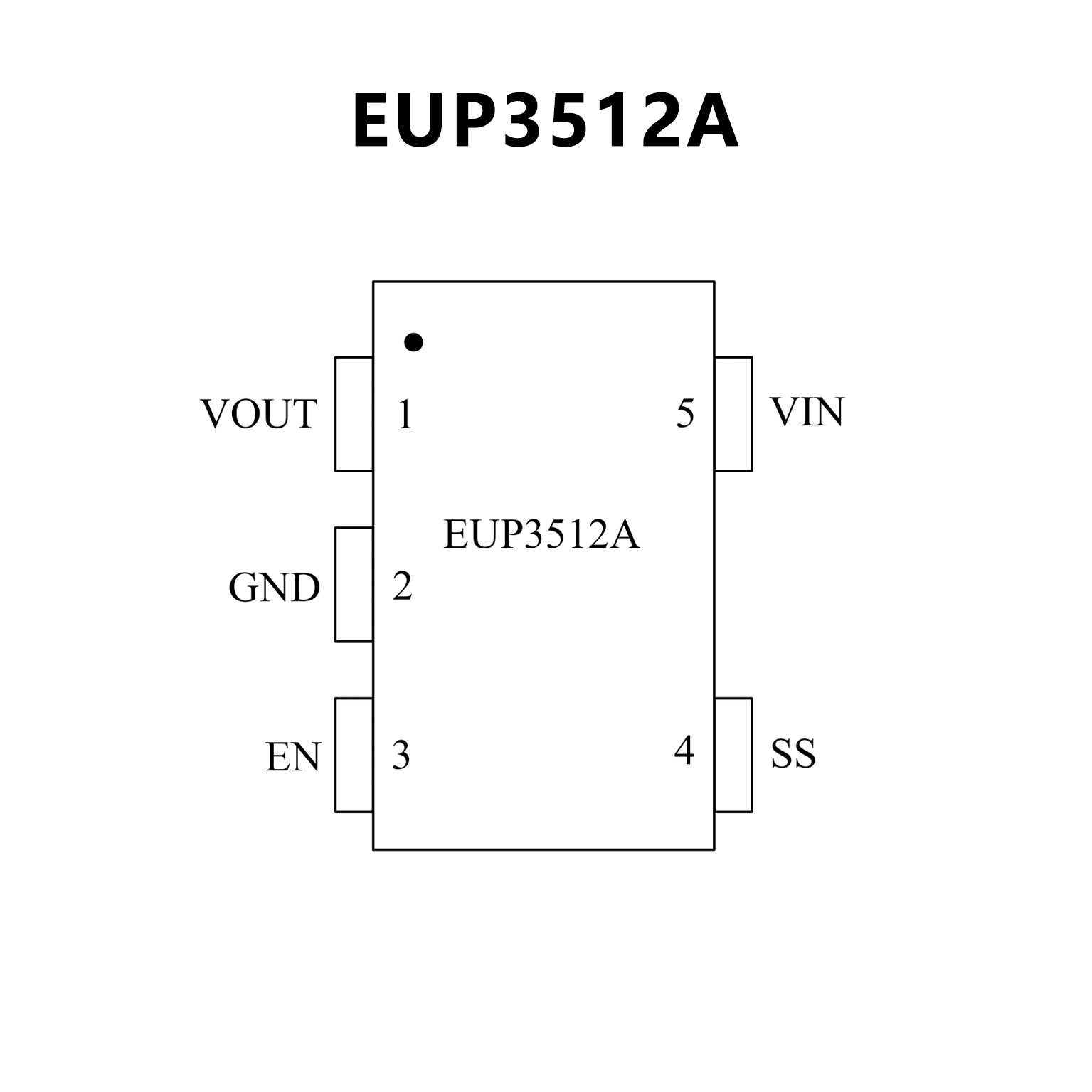

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 90mW High Side MOSFET
? 2A Continuous Current
? Soft-Start Time Programmable by External
Capacitor
? Wide Supply Voltage Range: 2.7V to 5.5V
? Current-Limit and Short-Circuit Protections
? Under-Voltage Lockout Protection
? Reverse Current Blocking when Switch Disabled
? Over-Temperature Protection
? Logic Level Enable Input
APL3512A: Active High
APL3512B: Active Low
? Lead Free and Green Devices Available
(RoHS Compliant)

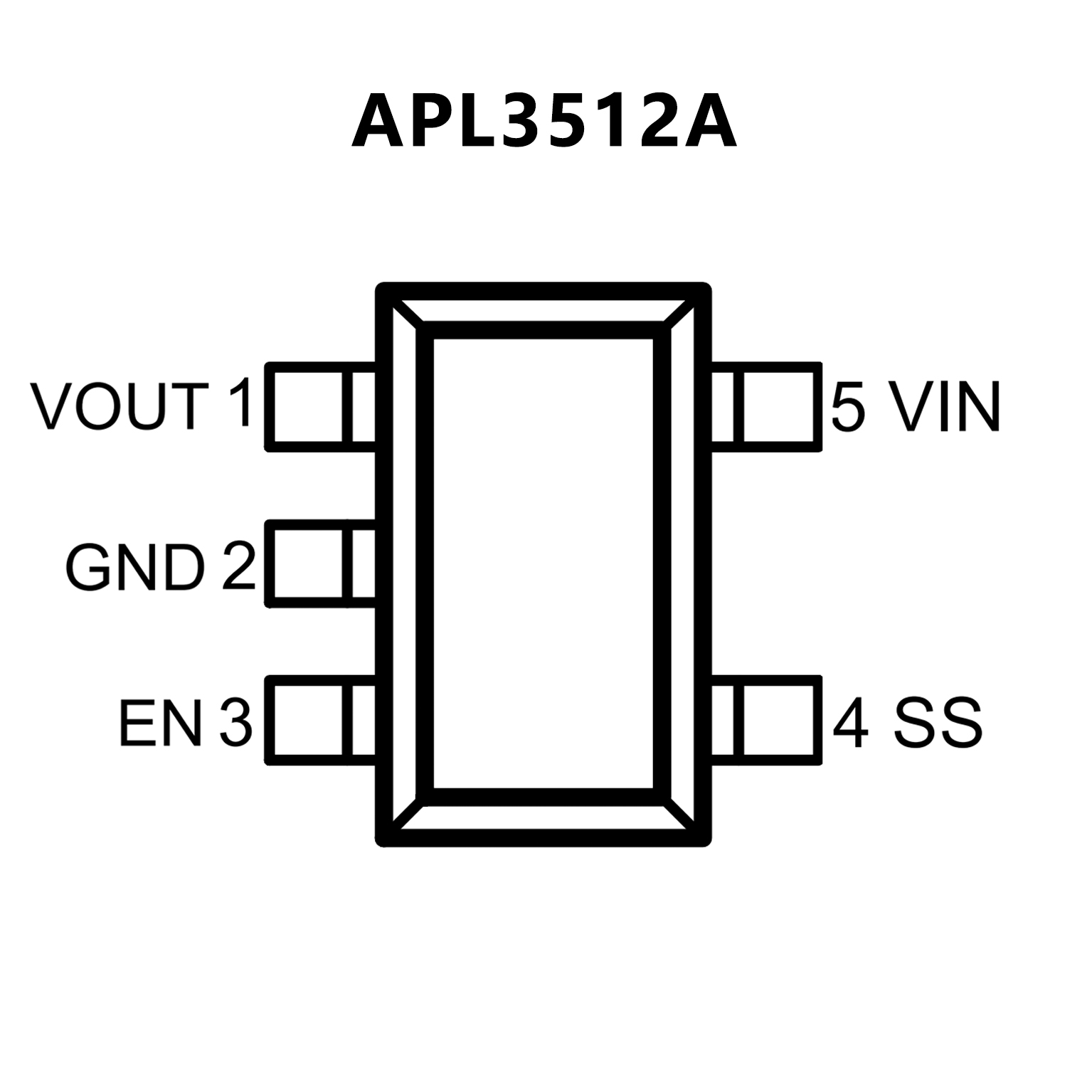

PIN CONFIGUTION
