2A, 30V, 340KHz Synchronous Step-Down Converter, EUP3482 Replace MP1482.
EUP3482
EUP3482.pdf
EUP3482.pdfFEATURES
? 2A Output Current
? 35V Input Surge Protection
? Integrated 160m?/110m? DMOS Switches
? 4.5V to 30V Input Operating Range
? Output Adjustable from 0.923V to 12V
? Up to 93% Efficiency
? 1μA Shutdown Current
? Fixed 340KHz Frequency
? Programmable Soft-Start
? Thermal Shutdown and Overcurrent Protection
? Input Supply Overvoltage and Undervoltage Lockout
? Available in SOP-8 Package
? RoHS Compliant and 100% Lead(Pb)-Free Halogen-Free

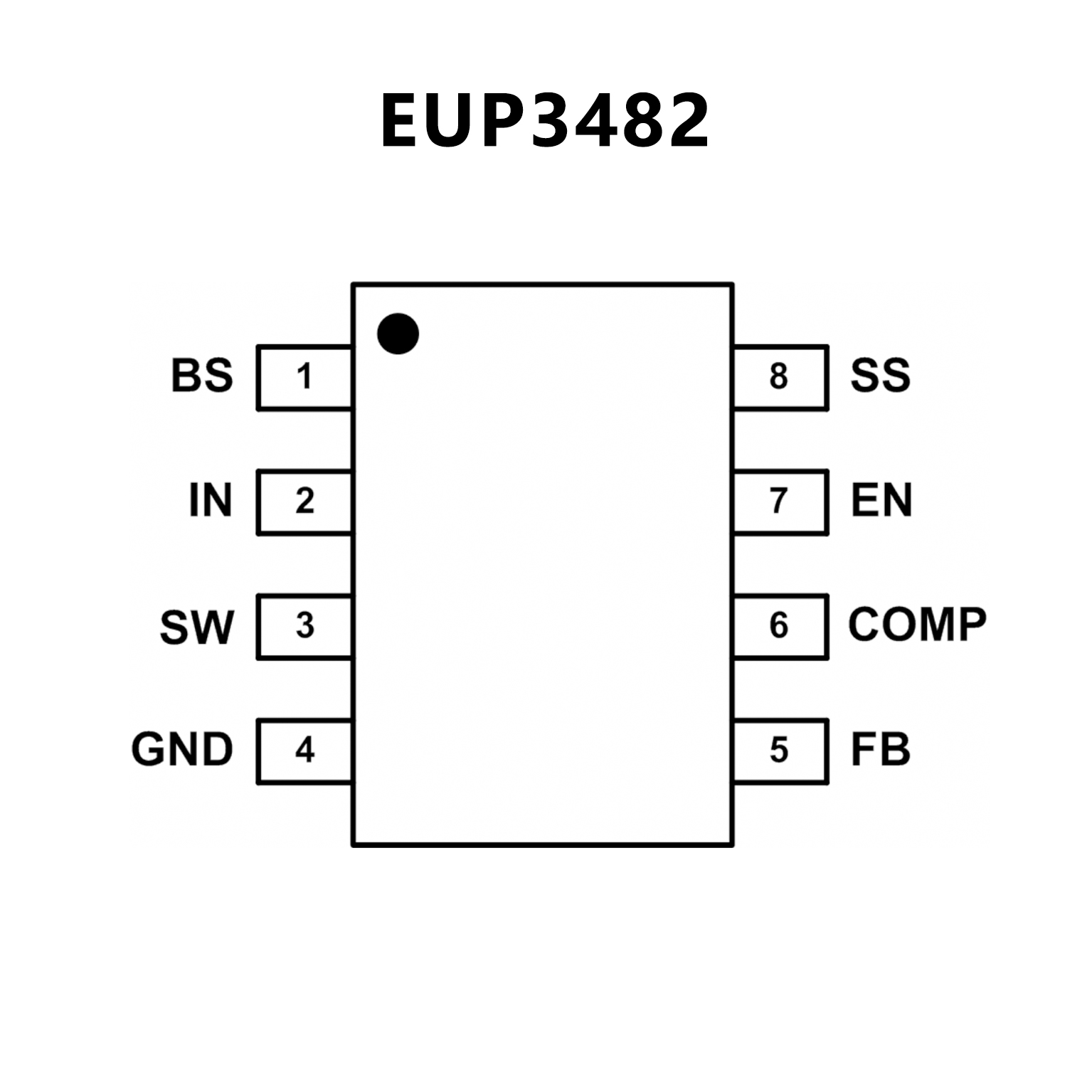

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 2A Output Current
? Wide 4.75V to 18V Operating Input Range
? Integrated 130mΩ Power MOSFET Switches
? Output Adjustable from 0.923V to 15V
? Up to 93% Efficiency
? Programmable Soft-Start
? Stable with Low ESR Ceramic Output Capacitors
? Fixed 340kHz Frequency
? Cycle-by-Cycle Over Current Protection
? Input Under Voltage Lockout
? 8–Pin SOIC

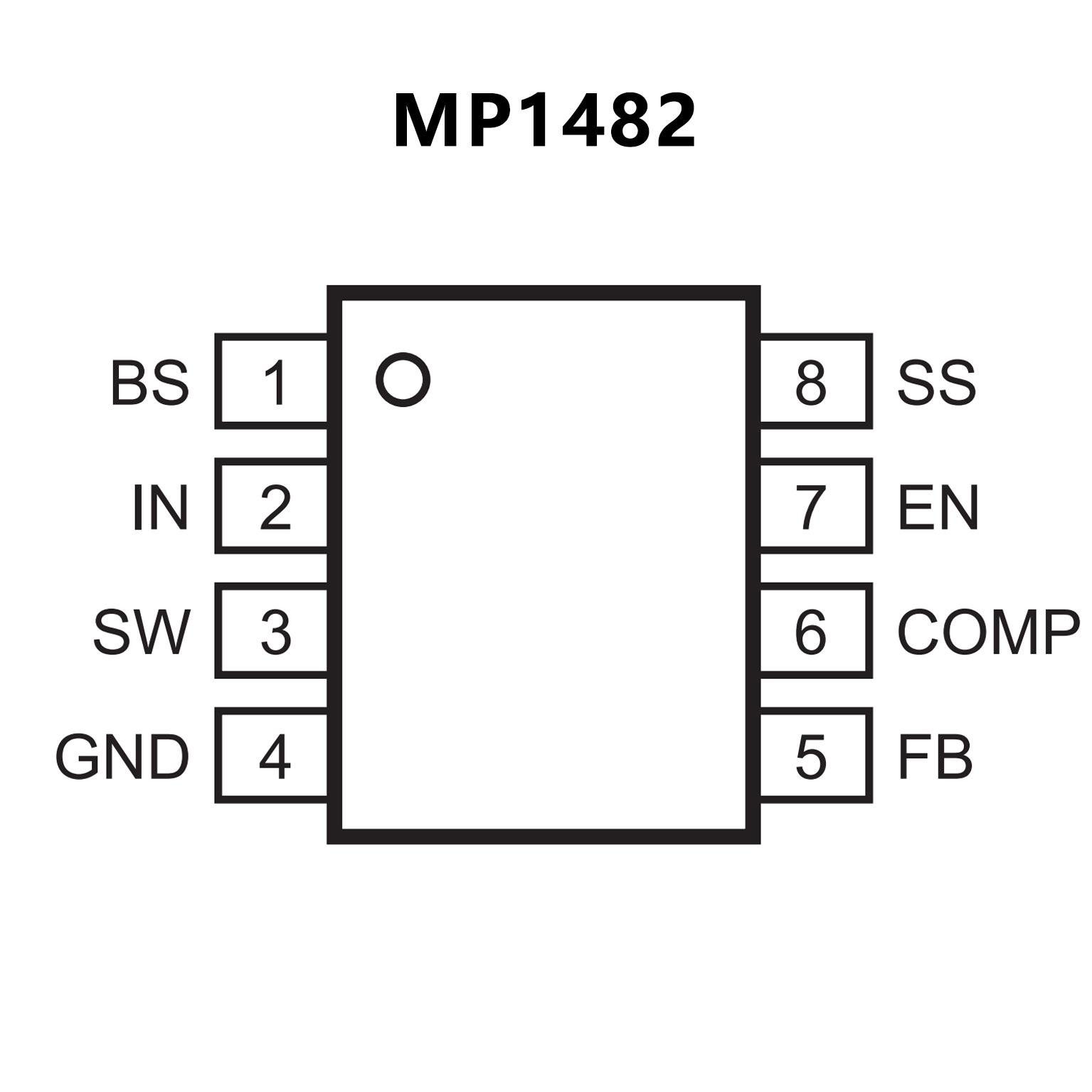

PIN CONFIGUTION
