3A, 24V, Synchronous Step-Down Converter, EUP3293 Replace RT7296F.
EUP3293
EUP3293.pdf
EUP3293.pdfFEATURES
? Wide Input Voltage Range: 4.5V to 24V
? 80mΩ/30mΩ Low RDS(ON) Internal Power MOSFETs
? High-Efficiency Current Mode Control
? Fixed 500kHz Switching Frequency
? Synchronizes from a 200kHz-to-1MHz External Clock
? Power Saving Mode at Light Load
? Internal Soft-Start
? Power Good Indicator
? Over Current Protection and Hiccup
? Thermal Shutdown
? Input Under Voltage Lockout
? Available in an 8-pin TSOT23 package
? RoHS Compliant and Halogen-Free

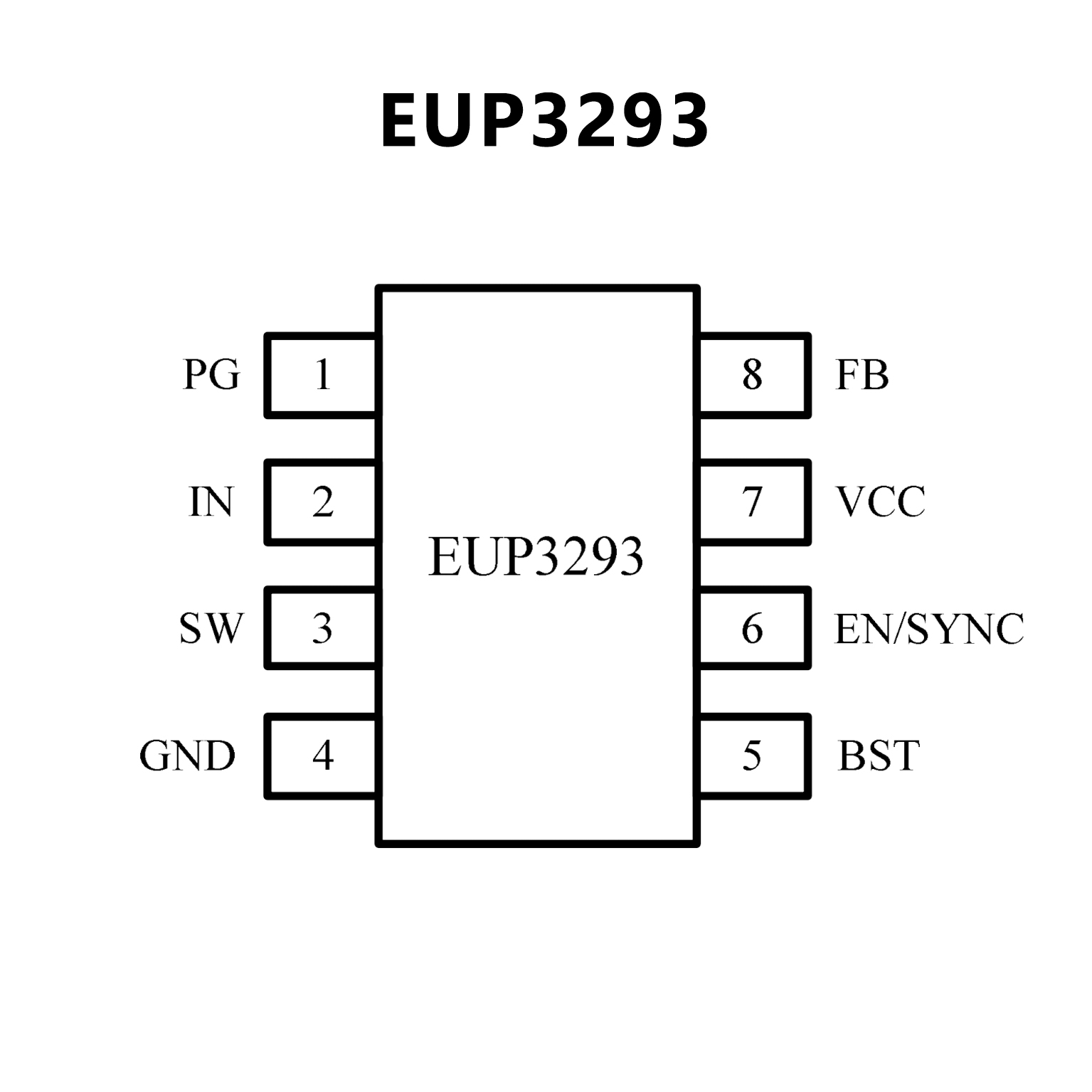

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? 4.5V to 17V Input Voltage Range
? 3A Output Current
? Internal N-Channel MOSFETs
? Current Mode Control
? Fixed Switching Frequency: 500kHz
? Synchronous to External Clock: 200kHz to 2MHz
? Cycle-by-Cycle Current Limit
? Internal Soft-Start Function
? Power Saving Mode at Light Load
? Power Good Indicator
? Input Undervoltage Lockout
? Output Undervoltage Protection
? Thermal Shutdown
? RoHS Compliant and Halogen Free

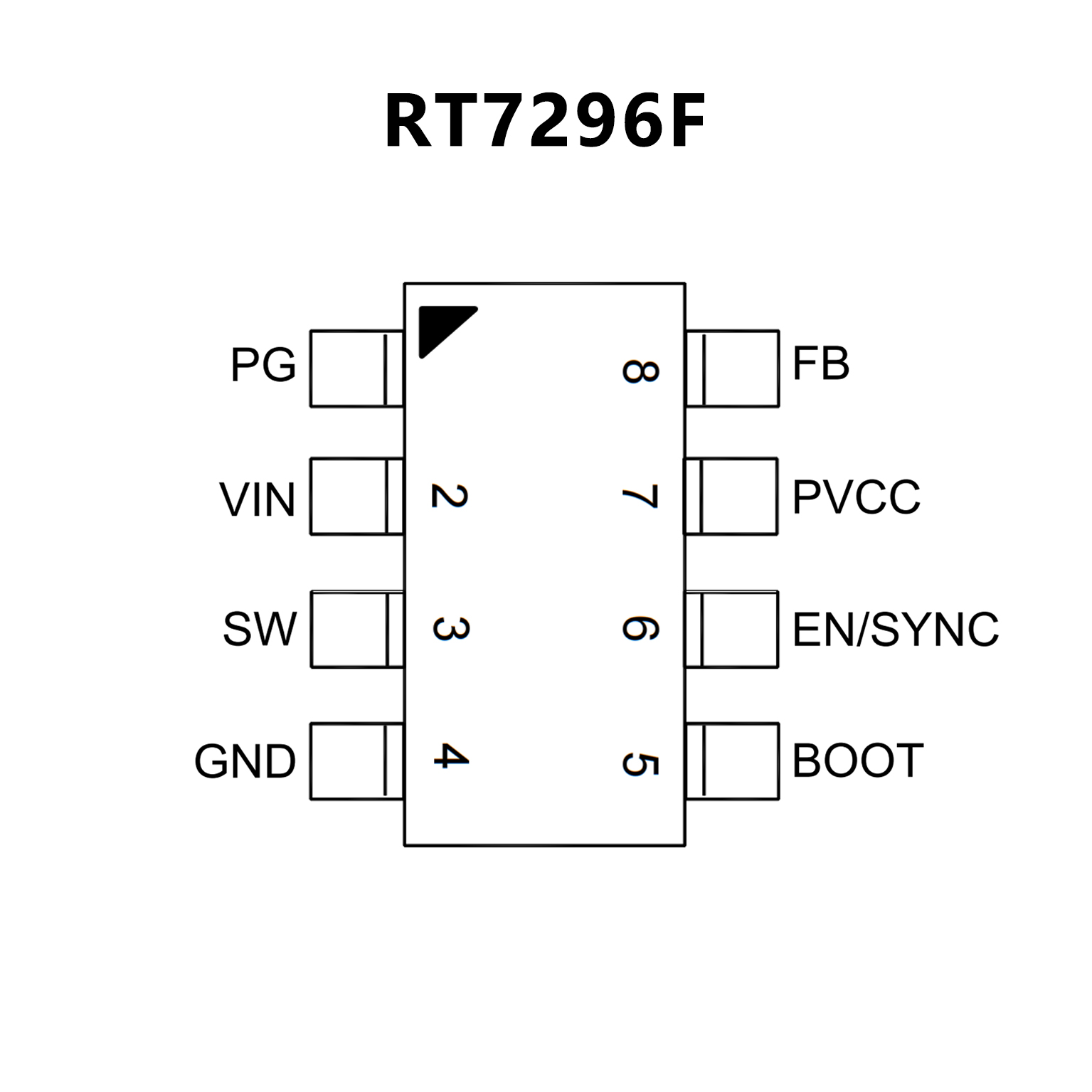

PIN CONFIGUTION
