3A, 24V, Synchronous Step-Down Converter, EUP3293 Replace MP1475.
EUP3293
EUP3293.pdf
EUP3293.pdfFEATURES
? Wide Input Voltage Range: 4.5V to 24V
? 80mΩ/30mΩ Low RDS(ON) Internal Power MOSFETs
? High-Efficiency Current Mode Control
? Fixed 500kHz Switching Frequency
? Synchronizes from a 200kHz-to-1MHz External Clock
? Power Saving Mode at Light Load
? Internal Soft-Start
? Power Good Indicator
? Over Current Protection and Hiccup
? Thermal Shutdown
? Input Under Voltage Lockout
? Available in an 8-pin TSOT23 package
? RoHS Compliant and Halogen-Free

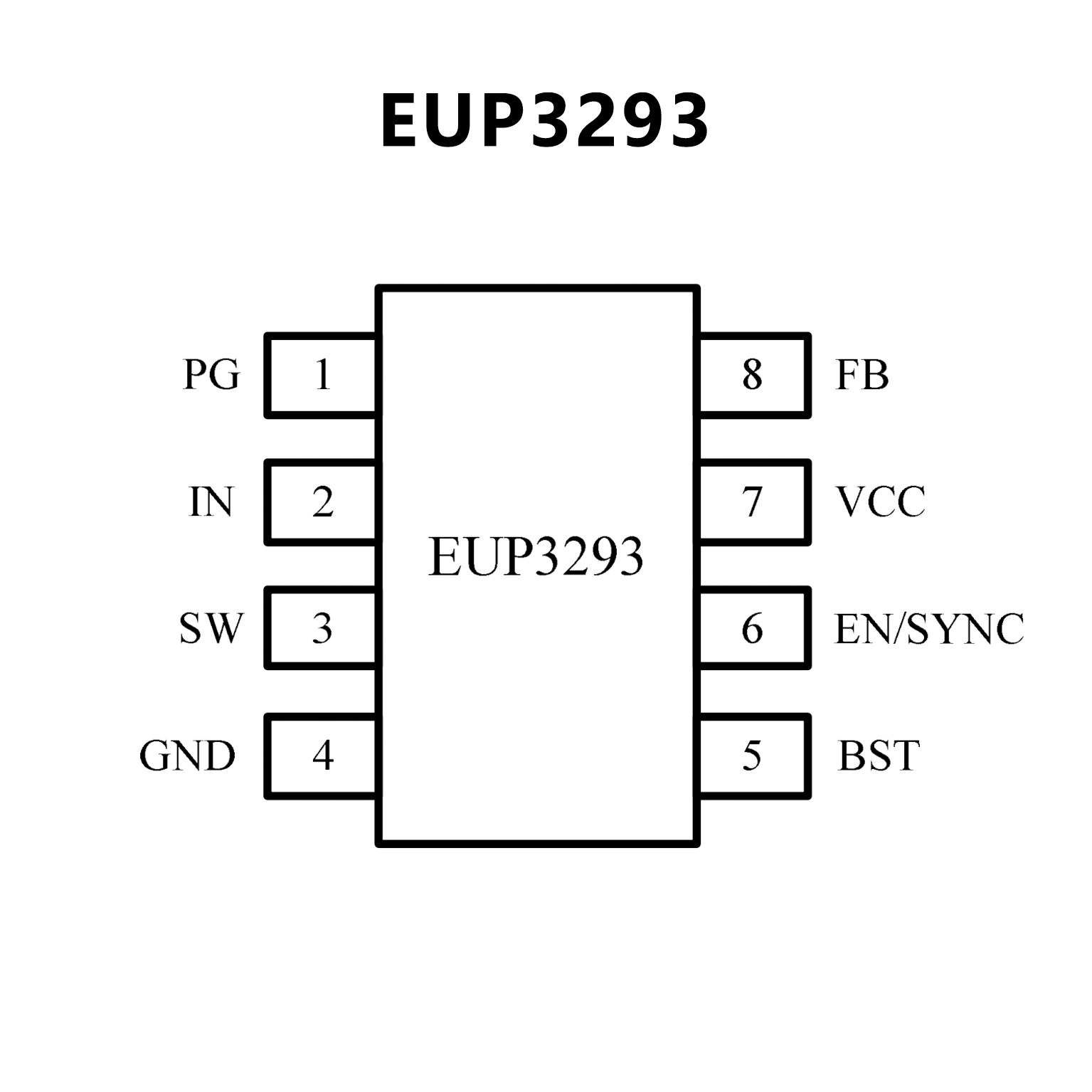

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide 4.5V-to-16V Operating Input Range
? 80m?/30m? Low RDS(ON) Internal Power MOSFETs
? High-Efficiency Synchronous Mode Operation
? Fixed 500kHz Switching Frequency
? Synchronizes from a 200kHz-to-2MHz External Clock
? Power-Save Mode at light load Internal Soft-Start
? Power Good Indicator
? OCP Protection and Hiccup
? Thermal Shutdown
? Output Adjustable from 0.8V
? Available in an 8-pin TSOT-23 Package

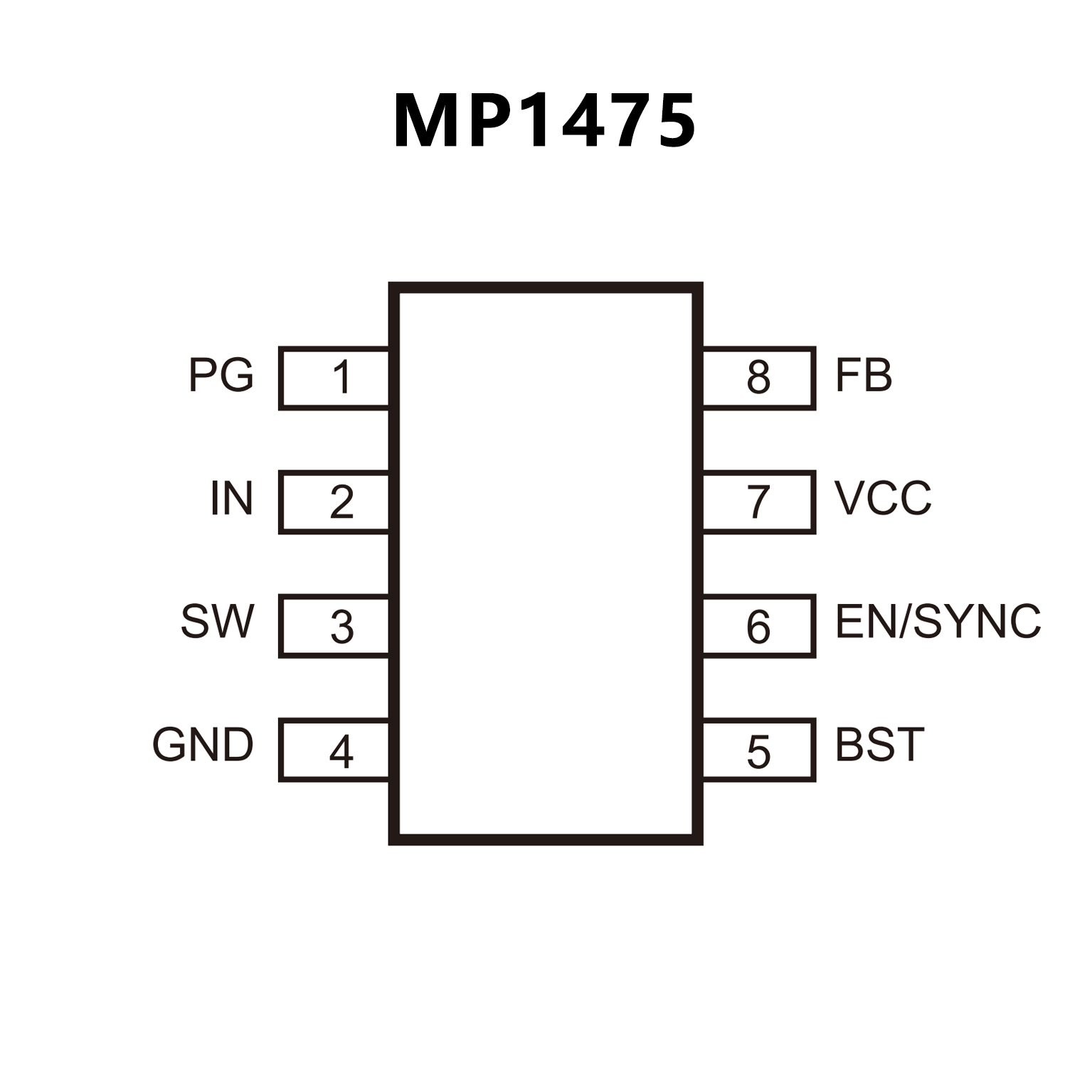

PIN CONFIGUTION
