High Performance Single Synchronous Buck Converter, EUP3288F Replace GS9238.
EUP3288F
EUP3288F.pdf
EUP3288F.pdfFEATURES
? Wide Input Voltage Range: 4.5V to 30V
? 8A Output Current
? Excellent Line and Load Transient Responses
? Integrated 23mΩ N-Channel MOSFET for
High Side
? Integrated 13mΩ N-Channel MOSFET for
Low Side
? Programmable PWM Frequency from
100KHz to 1MHz
? Internal Soft-Start
? Selectable Forced PWM or Automatic
PFM/PWM Mode
? Power Good Monitoring
? Under-Voltage Protection
? Over-Voltage Protection
? Cycle-by-Cycle Current Limit
? Over-Temperature Protection
? Available in TQFN-23 4mmx4mm Package
? RoHS Compliant and Halogen-Free

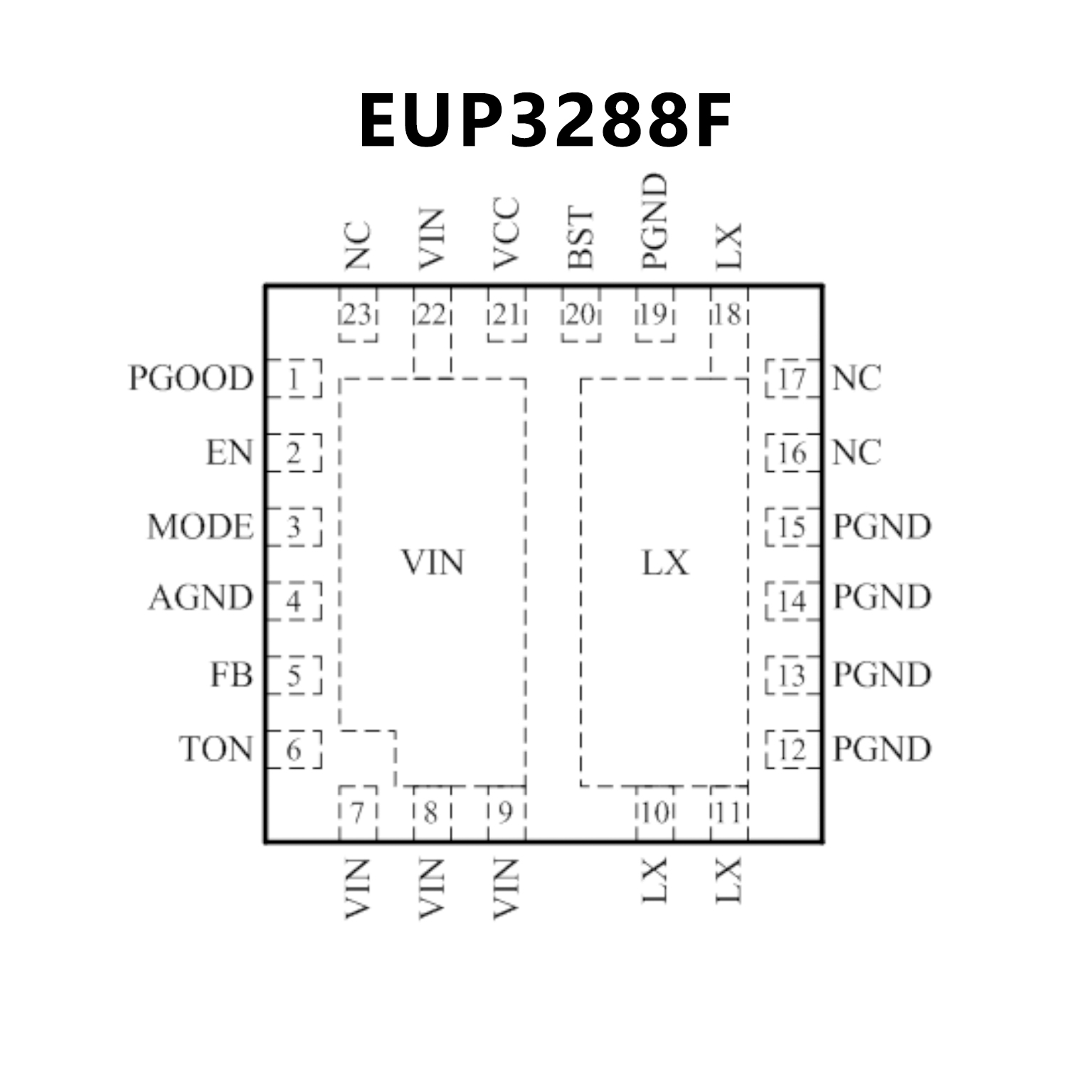

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide Output Current Range：8A
? Wide Input Voltage Range：3V~28V
? Adjustable 0.8V~20V Output Range
? ±1% Output Voltage Accuracy over Line and Load
? Constant-on-time control scheme for fast
transient and high Efficiency
? Programmable Operation Frequency from
100kHz to 600kHz
? Integrated 20 mΩ at LDO=5V N-Channel
MOSFET For High Side
? Integrated 9.5 mΩ at LDO=5V N-Channel
MOSFET For Low Side
? Selectable Forced PWM or automatic PFM/PWM mode
? Power Good Indicator
? Under-Voltage Protection
? Over-Voltage Protection
? FB Short Protection
? Internal 5V Pre-regulator
? External Adjustable Soft-Start and Soft-Stop
? Over Temperature Protection
? Over Current Protection
? TQFN23-4x4 package
? Green Product (RoHS, Lead-Free, Halogen-Free
Compliant)
PIN CONFIGUTION
