High Efficiency 10A Synchronous Buck Converter, EUP3288 Replace G5335.
EUP3288
EUP3288.pdf
EUP3288.pdfFEATURES
? Wide Input Voltage Range: 4.5V to 30V
? 8A Output Current
? Excellent Line and Load Transient Responses
? Integrated 23m? N-Channel MOSFET for
High Side
? Integrated 13m? N-Channel MOSFET for
Low Side
? Programmable PWM Frequency from
100KHz to 1MHz
? Internal Soft-Start
? Selectable Forced PWM or Automatic
PFM/PWM Mode
? Power Good Monitoring
? Under-Voltage Protection
? Over-Voltage Protection
? Cycle-by-Cycle Current Limit
? Over-Temperature Protection
? Available in TQFN-23 4mmx4mm Package
? RoHS Compliant and Halogen-Free

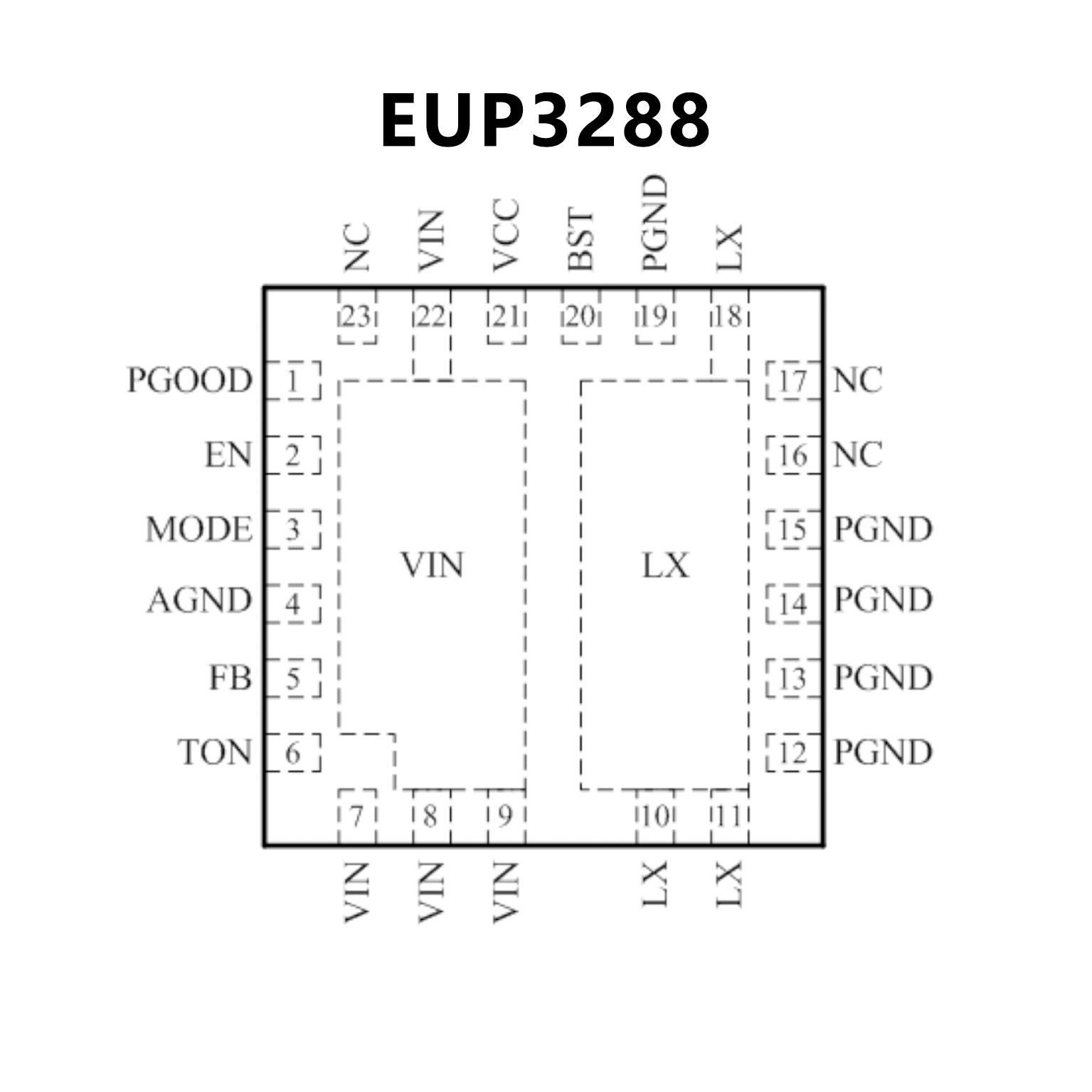

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Ultra-High Efficiency
? Integrated 8.5mΩ at VCC=5V N-Channel
MOSFET for Low Side
? Integrated 20mΩ at VCC=5V N-Channel
MOSFET for High Side
? No Current-Sense Resistor (Lossless ILIMIT)
? Quasi-PWM with 100ns Load-Step Response
? 1% VOUT Accuracy Over Line and Load
? Programmable Switching Frequency
? Adjustable Output Range from 0.8V
? 4.5V to 28V Adapter or Battery Input Range
? Integrated Boost Switch
? OVP & UVP
? Over Temperature Protection (non-latch)
? Adjustable Soft-Start
? Power-Good Indicator

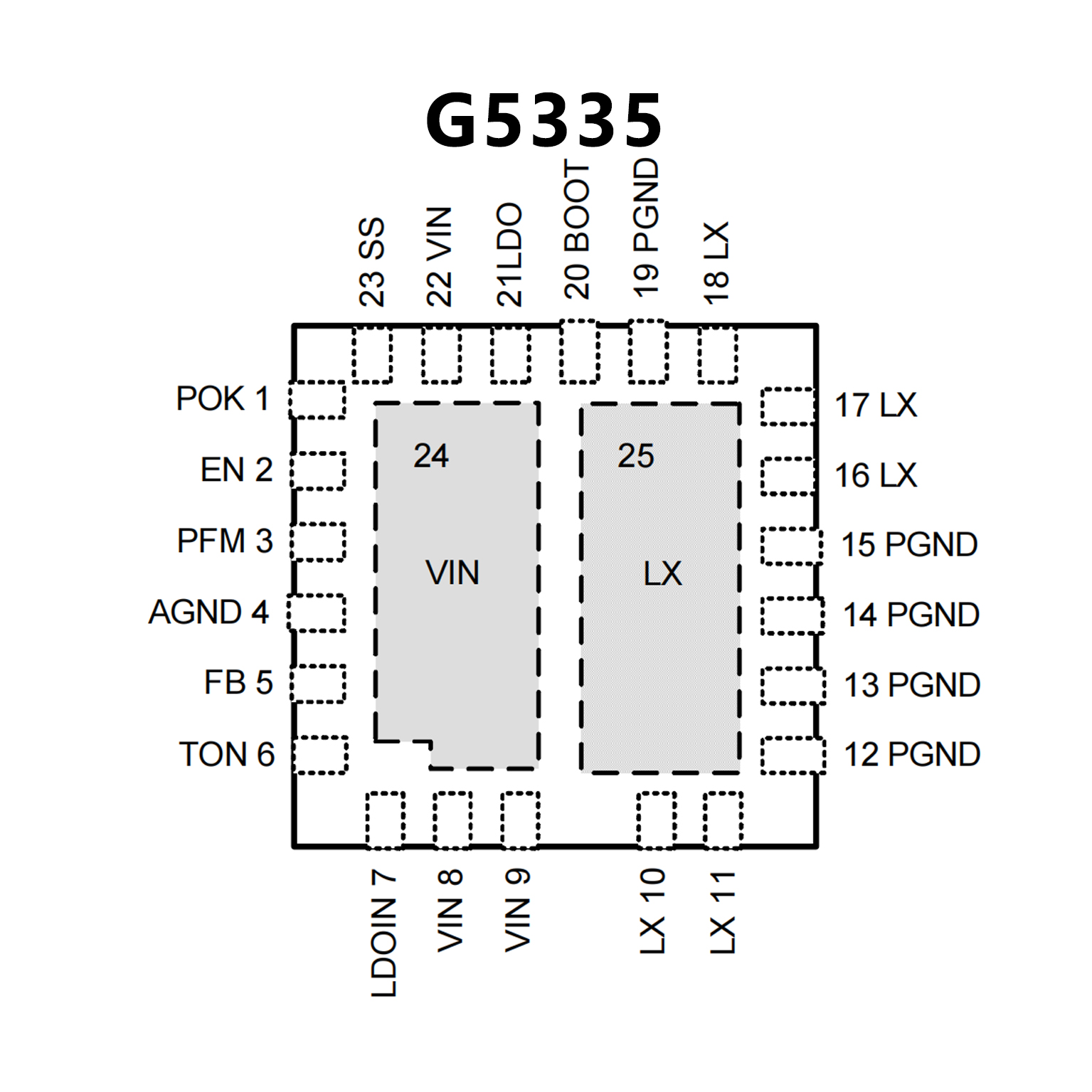

PIN CONFIGUTION
