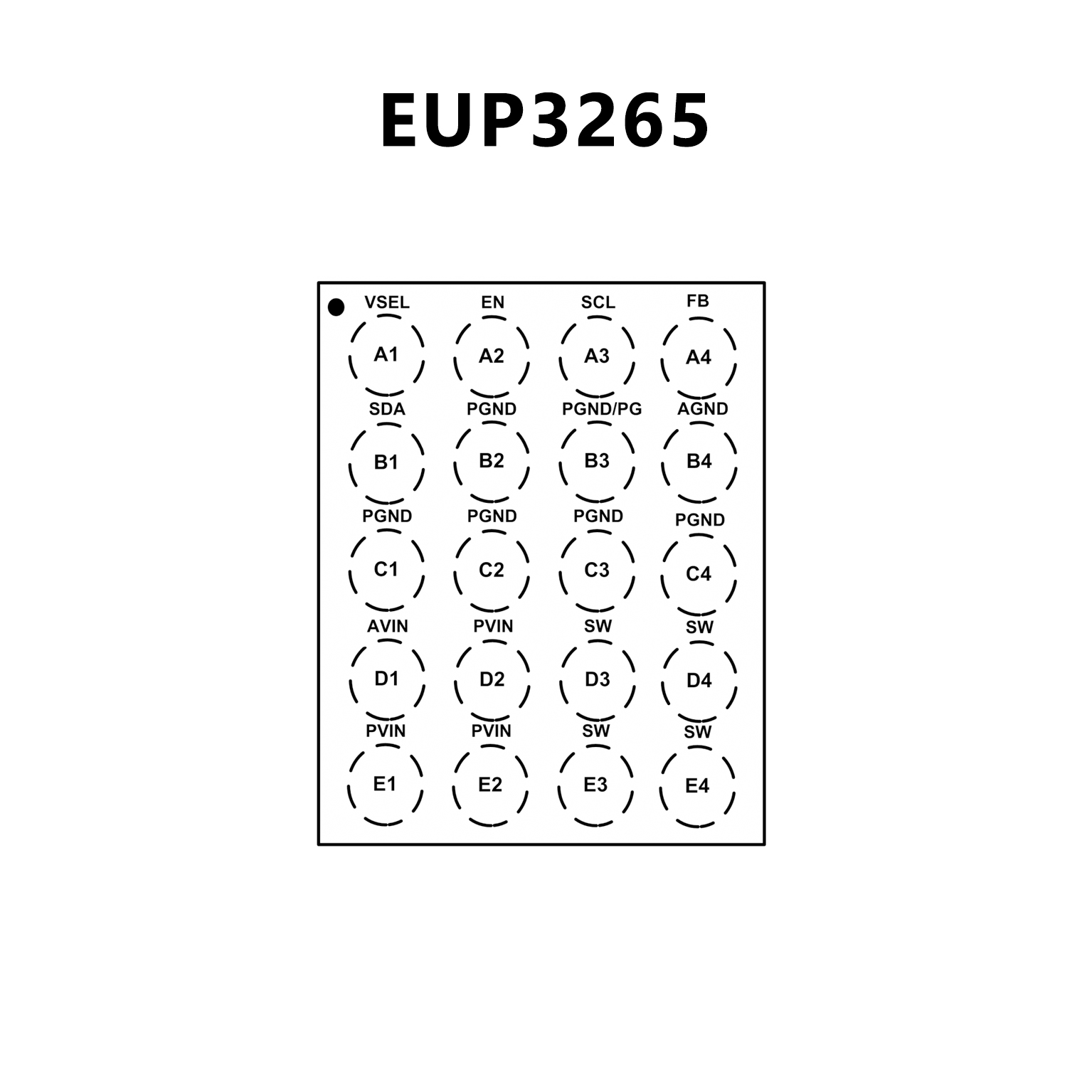

EUP3265.pdf? 2.7V to 5.5V Input Voltage Range
? 3MHz Constant Switching Frequency
? 5A Available Load Current
? I2C Control Interface with Dynamic Voltage
Scaling Support
? Programmable Output Voltage: 0.6V to 1.4V in
6.25mV Steps
? Small size, 0.33μH or 0.47μH Inductor Solution
? 52μA Typical Quiescent Current
? PFM/PWM Operation for Optimum Increased
Efficiency
? Excellent Load and Line Transient Response
? Short Circuit and Thermal Protection
? Available in 2.0mm×1.6mm WCSP-20 Package
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

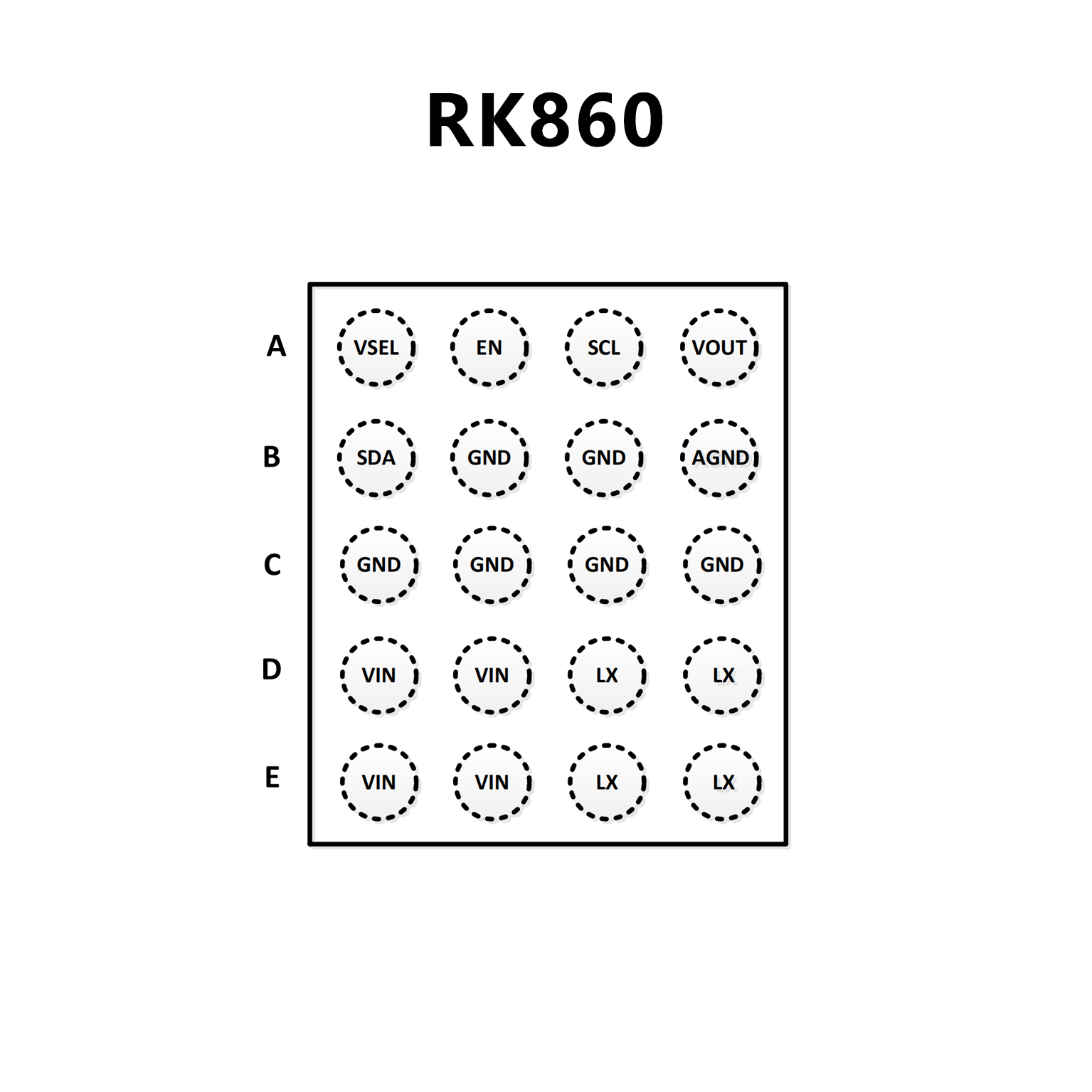

? Input voltage range：2.7V-5.5V
? 2.4MHz switching frequency minimizes the external
components
? Typical 70uA quiescent current when VIN=3.8V and
Temp=25℃
? Low RDs(ON) for internal switches(PFET/NFET):
24mohm/16ohm @ VIN=3.8V
? Programmable output voltage:0.7125V to 1.5V with
12.5mV/step
? Integrate inner protection：Cycle by cycle OCP and
VIN-OVP/UVLO/DIE-TSD
