1MHz, 3A Synchronous Step-Down Converter with Soft Start, EUP3083 Replace JW5213.
EUP3083
EUP3083.pdf
EUP3083.pdfFEATURES
? High Efficiency up to 95%
? Low RDSON for internal switches:
High-side: 100mΩ
Low-side: 60mΩ
? 2.7V to 5.5V Input Voltage Range
? 3A Available Load Current
? 30μA Typical Quiescent Current
? 1MHz Constant Switching Frequency
? Adjustable Output Voltage as Low as 0.6V
? 100% Duty Cycle Low Dropout Operation
? Short Circuit and Thermal Protection
? Excellent Line and Load Transient Response
? Soft Start Function
? Power Good
? Available in TDFN-8L(2×2) Package
? RoHS Compliant and Halogen-Free

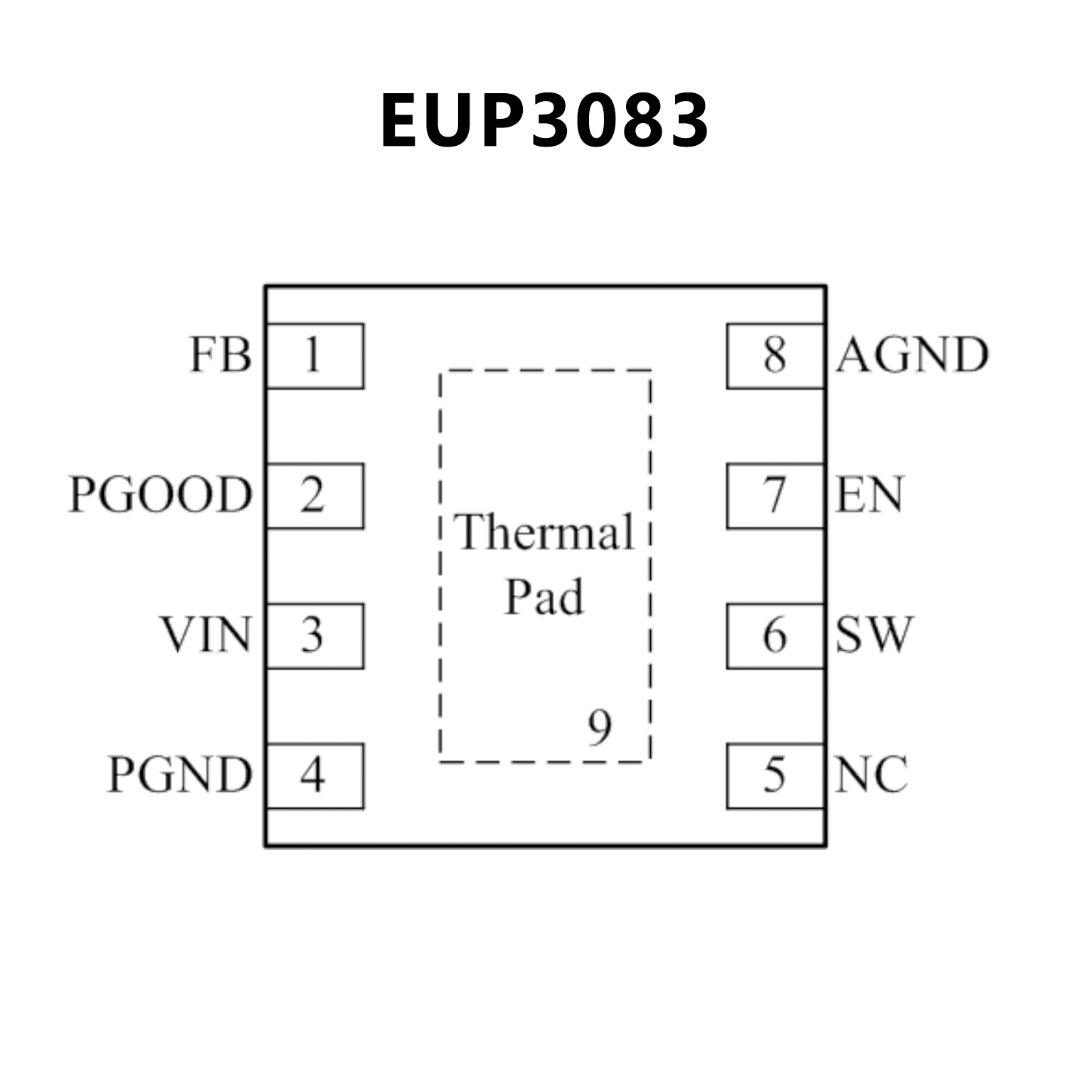

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 2.5V to 6V operating input range
? Up to 3A output current
? Up to 95% peak efficiency
? Internal Soft-Start
? 1MHz switching frequency
? Input under voltage lockout
? Short circuit protection
? Over voltage protection
? Thermal protection
? Hot-plug in protection
? Output POK indication
? RoHS Compliant and Halogen Free
? Available in DFN2X2-8 package
PIN CONFIGUTION
