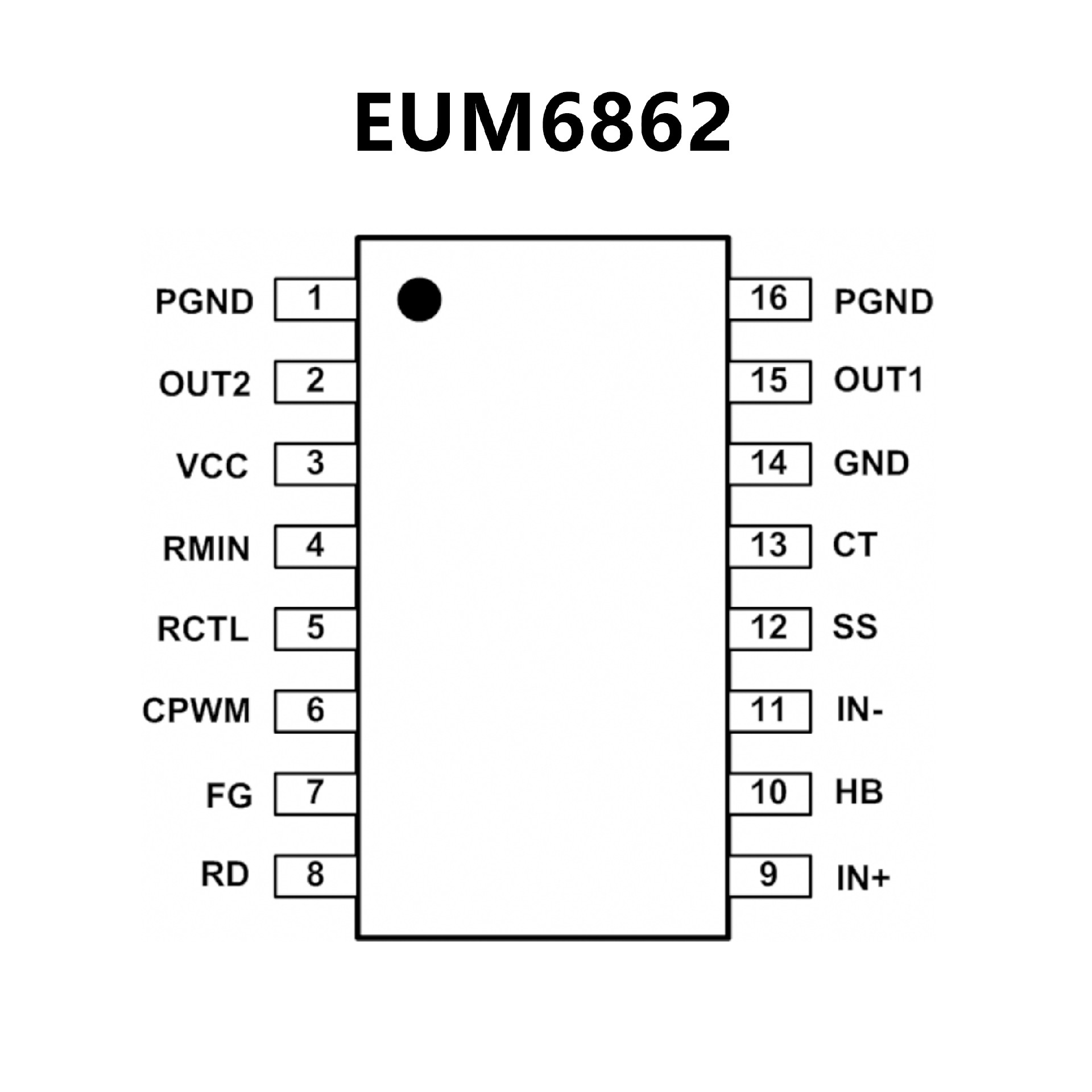

EUM6862.pdf? Built in 24V Full-wave Motor Driver for Fan Motor
? Built in Kickback Voltage Protection, No Zener
Diode Need
? External Programmable Soft Start and Soft
Restart Function
? Wide Input Range 3V~28V
? PWM Fan Speed Control
? Programmable Minimum Fan Speed
? Built in Soft Switching Function
? Built in Hall Bias
? Lock Protection and Auto Restart
? Fan Rotation Speed Feedback FG Output
(EUM6862/B)
? Fan Rotation Detection RD Output
(EUM6862/A)
? Thermal Shutdown Protection
? Available in TSSOP-16 and TDFN-14 Packages
? RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

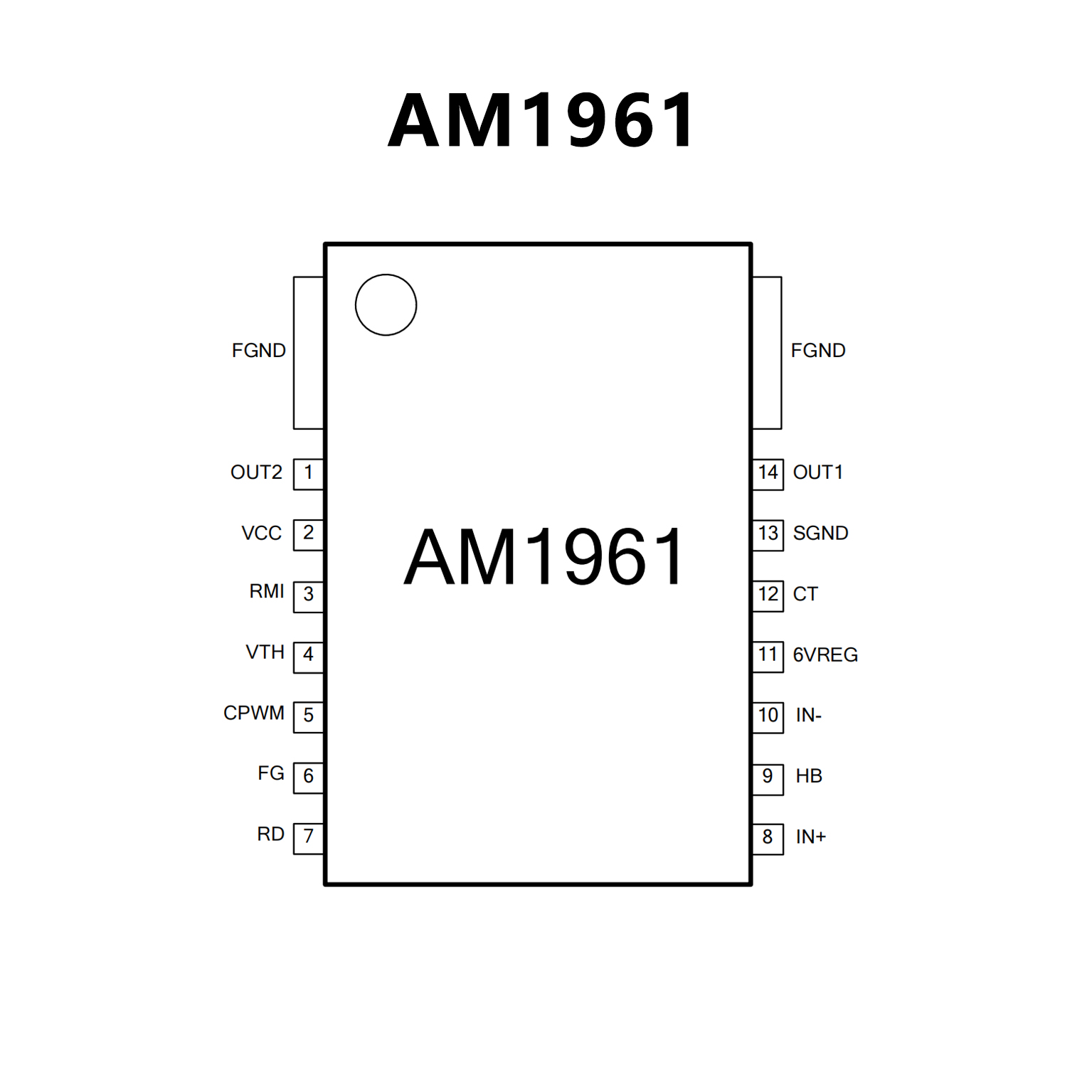

? Single-phase full-wave driver.(1A,16V)
? Variable speed control with thermistor input or
PWM drive with additional components.
? Minimum speed setting pin.
? Over-Current protection.
? Lock-Protection and Auto-Recovery.
? Hall bias built-in.
? Thermal shutdown function.
