3-VRMS Audio Line Driver With Adjustable Gain, EUA6632 Replace DRV632.
EUA6632
EUA6632.pdf
EUA6632.pdfFEATURES
? Supply Voltage 3V to 5V
? 2Vrms Into 10kΩ With 3.3V Supply
? Low THD+N<0.01% at 2Vrms Into 10kΩ
? High SNR>90dB
? 16Ω Output Load Compliant
? Differential Input and Single-Ended Output
? Adjustable Gain by External Gain-Setting Resistors
? Ground-Referenced Outputs Eliminate DC Blocking
Capacitors
- Reduce Board Area
- Reduce Component Cost
- Improve THD+N performance
- No Degradation of Low Frequency Response Due to
Output Capacitors
? Short-Circuit Protection
? Click and Pop-Reduction Circuitry
? External Under voltage Mute
? Active Mute Control for Pop-free Audio On/Off Control
? RoHS compliant and 100% lead(Pb)-free Halogen-Free

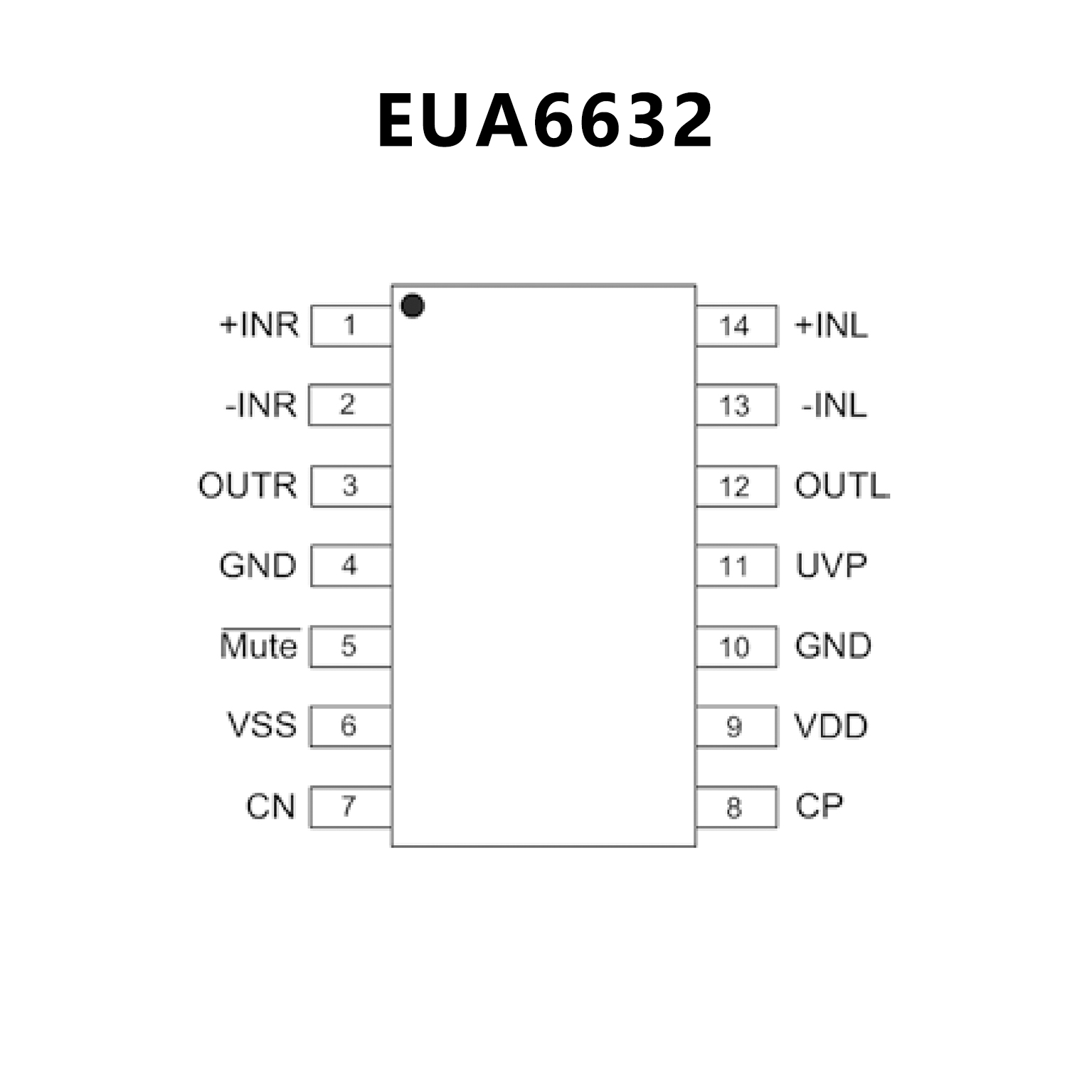

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Stereo DirectPath? Audio Line Driver
– 2 Vrms Into 10 k? With 3.3-V Supply
? Low THD+N < 0.01% at 2 Vrms Into 10 k?
? High SNR, >90 dB
? 600-? Output Load Compliant
? Differential Input and Single-Ended Output
? Adjustable Gain by External Gain-Setting Resistors
? Low DC Offset, <1 mV
? Ground-Referenced Outputs Eliminate DC Blocking
Capacitors
– Reduce Board Area
– Reduce Component Cost
– Improve THD+N Performance
– No Degradation of Low-Frequency Response
Due to Output Capacitors
? Short-Circuit Protection
? Click- and Pop-Reduction Circuitry
? External Undervoltage Mute
? Active Mute Control for Pop-Free Audio On/Off Control
? Space-Saving TSSOP Package

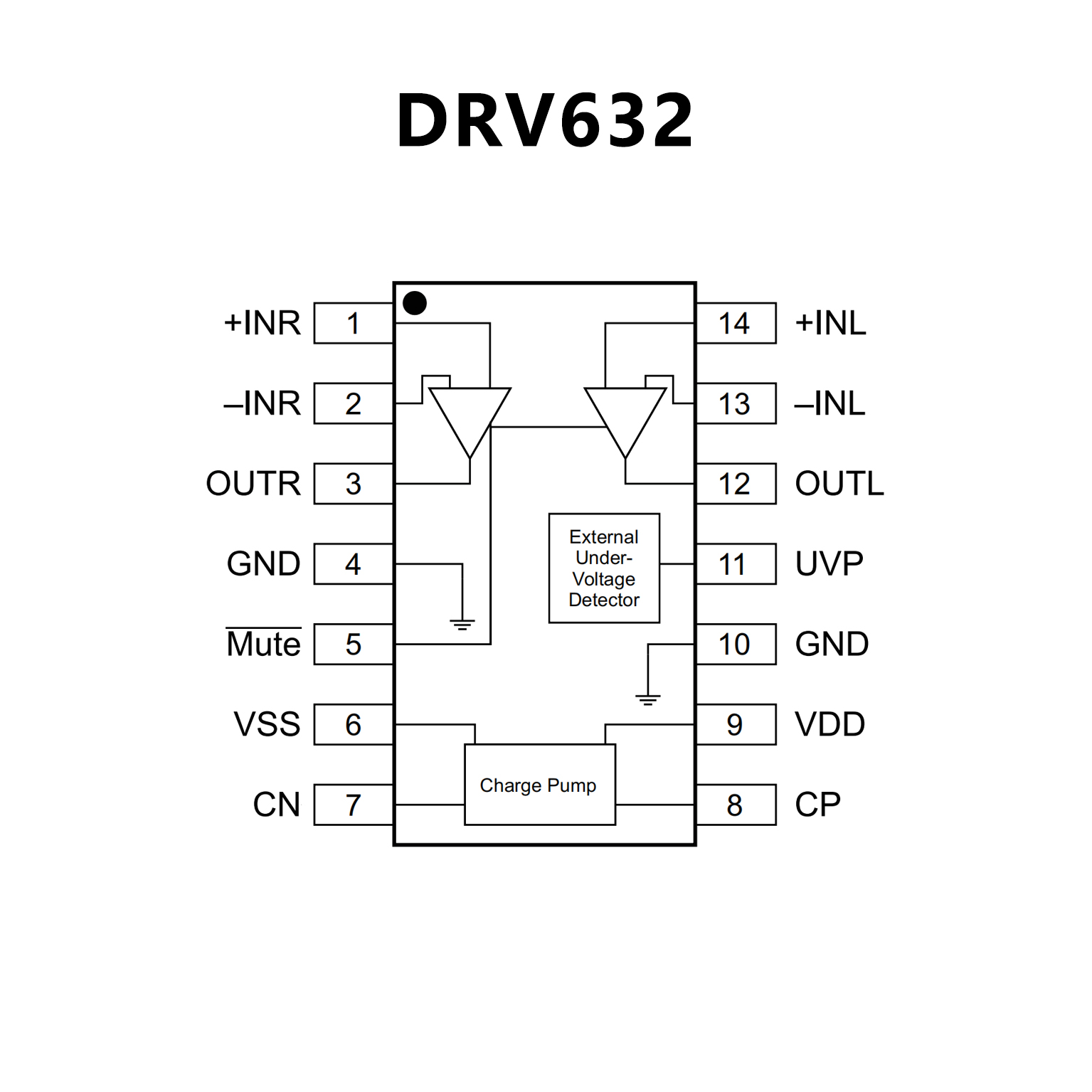

PIN CONFIGUTION
