3-VRMS Audio Line Driver With Adjustable Gain, EUA6632 Replace DIO2112.
EUA6632
EUA6632.pdf
EUA6632.pdfFEATURES
? Supply Voltage 3V to 5V
? 2Vrms Into 10kΩ With 3.3V Supply
? Low THD+N<0.01% at 2Vrms Into 10kΩ
? High SNR>90dB
? 16Ω Output Load Compliant
? Differential Input and Single-Ended Output
? Adjustable Gain by External Gain-Setting Resistors
? Ground-Referenced Outputs Eliminate DC Blocking
Capacitors
- Reduce Board Area
- Reduce Component Cost
- Improve THD+N performance
- No Degradation of Low Frequency Response Due to
Output Capacitors
? Short-Circuit Protection
? Click and Pop-Reduction Circuitry
? External Under voltage Mute
? Active Mute Control for Pop-free Audio On/Off Control
? RoHS compliant and 100% lead(Pb)-free Halogen-Free

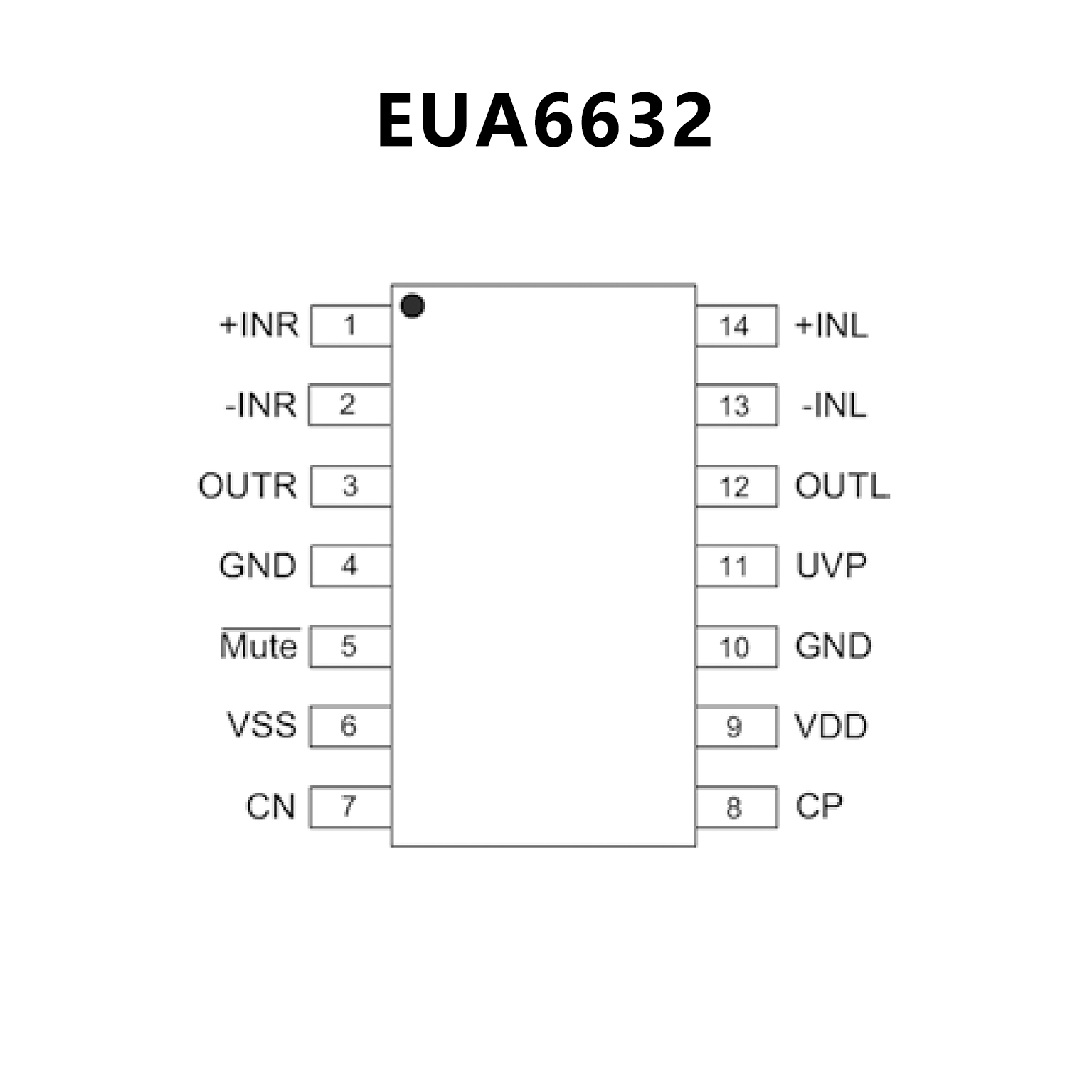

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Voltage Output at 10kQ Load
2 Vrms With 3.3V Supply Voltage
? Ultra Low Distortion
SNR>100dB
Typical Vn<10uVrms
THD+N<0.001% at 2Vrms
? No Pop/Clicks Noise when Power ON/OFF
? No Need for Output DC-Blocking Capacitors
? Optimized Frequency Response between
20Hz-20kHz
? Accepting Differential Input
? Featuring external under voltage mute
? Available in TSSOP-14 and DQFN-16 Package

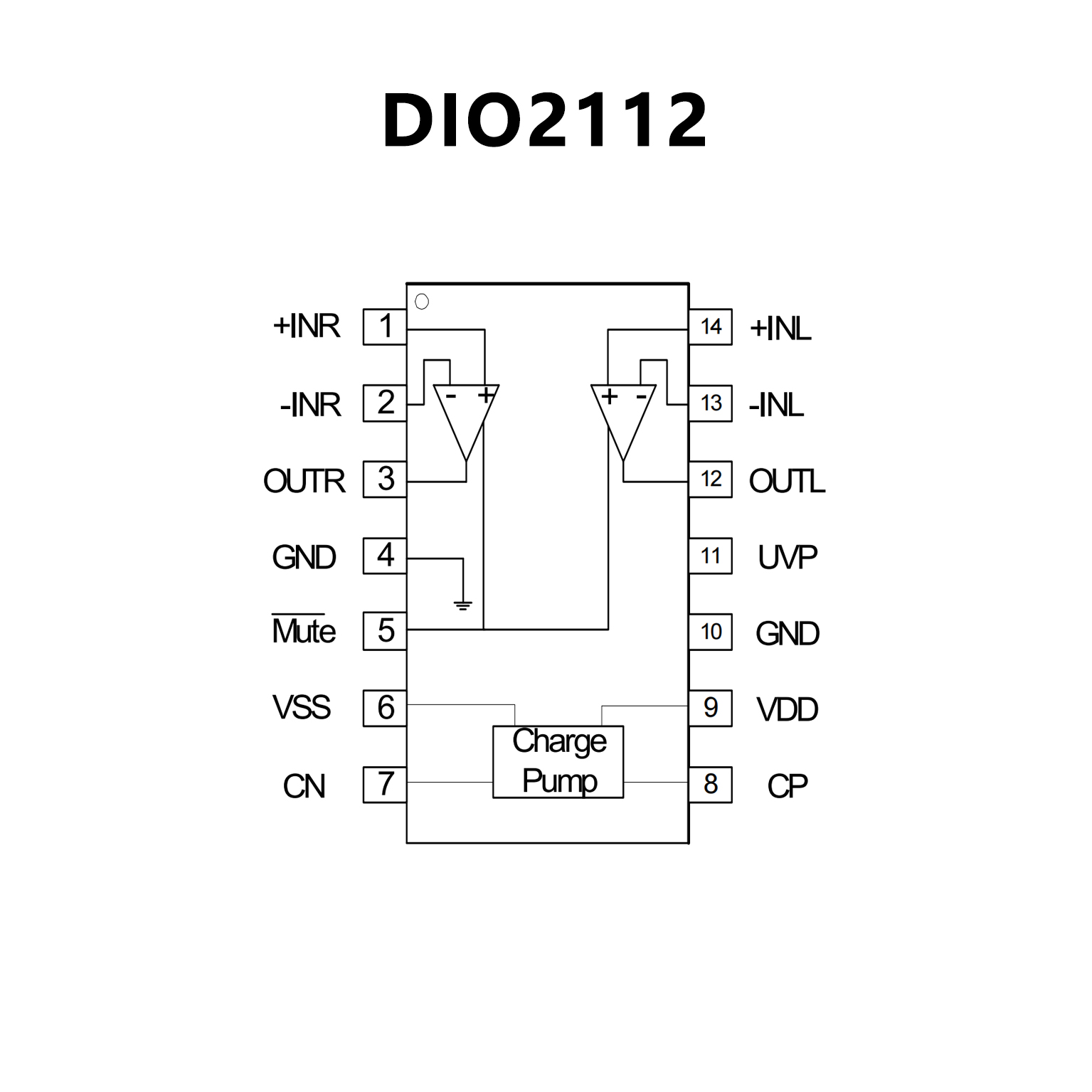

PIN CONFIGUTION
