1.36-W Mono Fully Differential Audio Power Amplifier, EUA6204 Replace TDA8541T.
EUA6204
EUA6204.pdf
EUA6204.pdfFEATURES
? Supply Voltage 2.5V to 5.5V
? 1.36W into 8? from a 5-V Supply at THD=1% (typ)
? Low Supply Current: 4mA typ at 5V
? Shutdown Current: 0.01μA typ
? Fast Startup with Minimal Pop
? Only Three External Components
- Improved PSRR (-80dB) for Direct Battery Operation
- Full Differential Design Reduces RF Rectification
- -63dB CMRR Eliminates Two Input Coupling Capacitors
? RoHS Compliant and 100% Lead (Pb)-Free
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Flexibility in use
? Few external components
? Low saturation voltage of output stage
? Gain can be fixed with external resistors
? Standby mode controlled by CMOS compatible levels
? Low standby current
? No switch-on/switch-off plops
? High supply voltage ripple rejection
? Protected against electrostatic discharge
? Outputs short-circuit safe to ground, VCC and across
the load
? Thermally protected

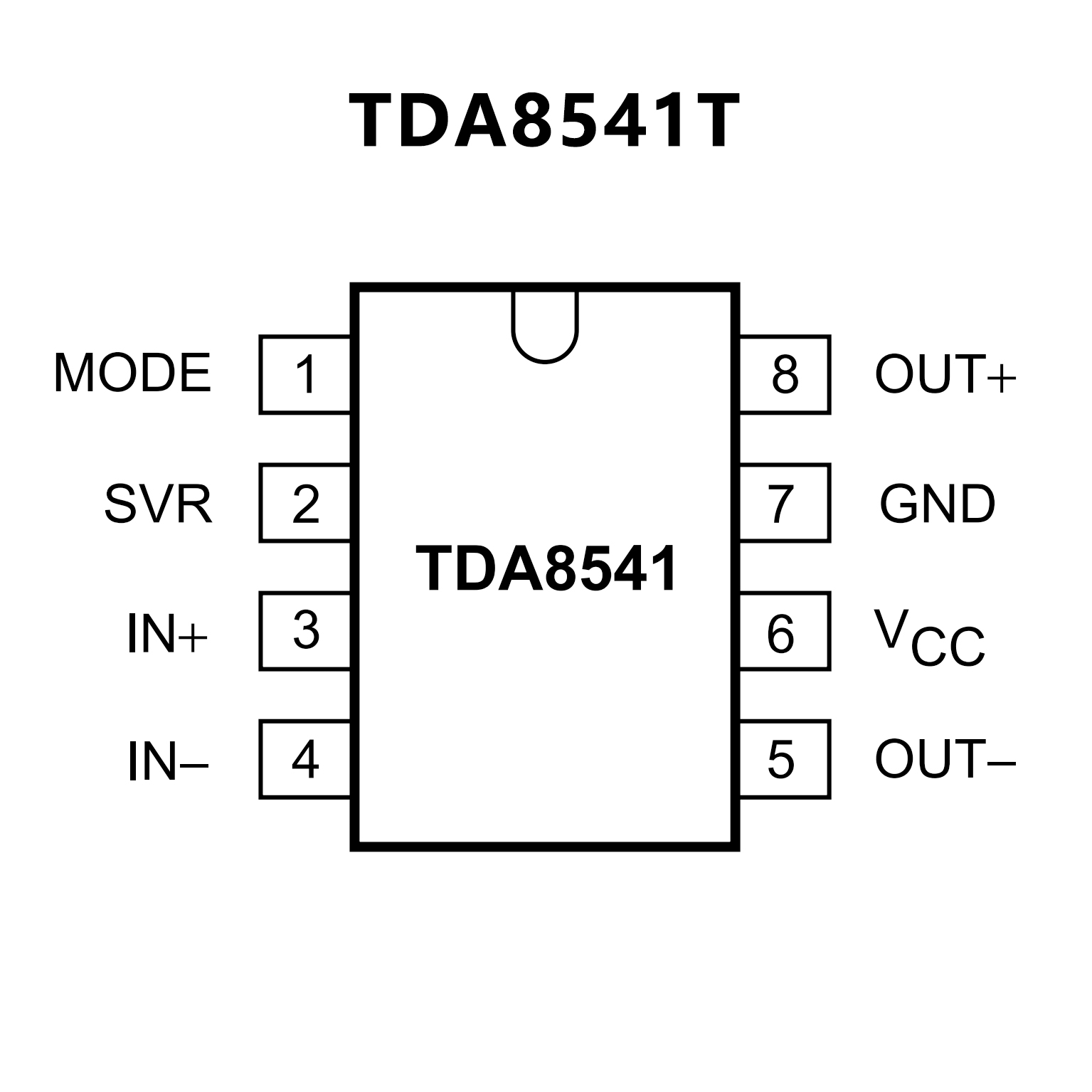

PIN CONFIGUTION
