1.36-W Mono Fully Differential Audio Power Amplifier, EUA6204 Replace LM4861.
EUA6204
EUA6204.pdf
EUA6204.pdfFEATURES
? Supply Voltage 2.5V to 5.5V
? 1.36W into 8? from a 5-V Supply at THD=1% (typ)
? Low Supply Current: 4mA typ at 5V
? Shutdown Current: 0.01μA typ
? Fast Startup with Minimal Pop
? Only Three External Components
- Improved PSRR (-80dB) for Direct Battery Operation
- Full Differential Design Reduces RF Rectification
- -63dB CMRR Eliminates Two Input Coupling
Capacitors
? RoHS Compliant and 100% Lead (Pb)-Free

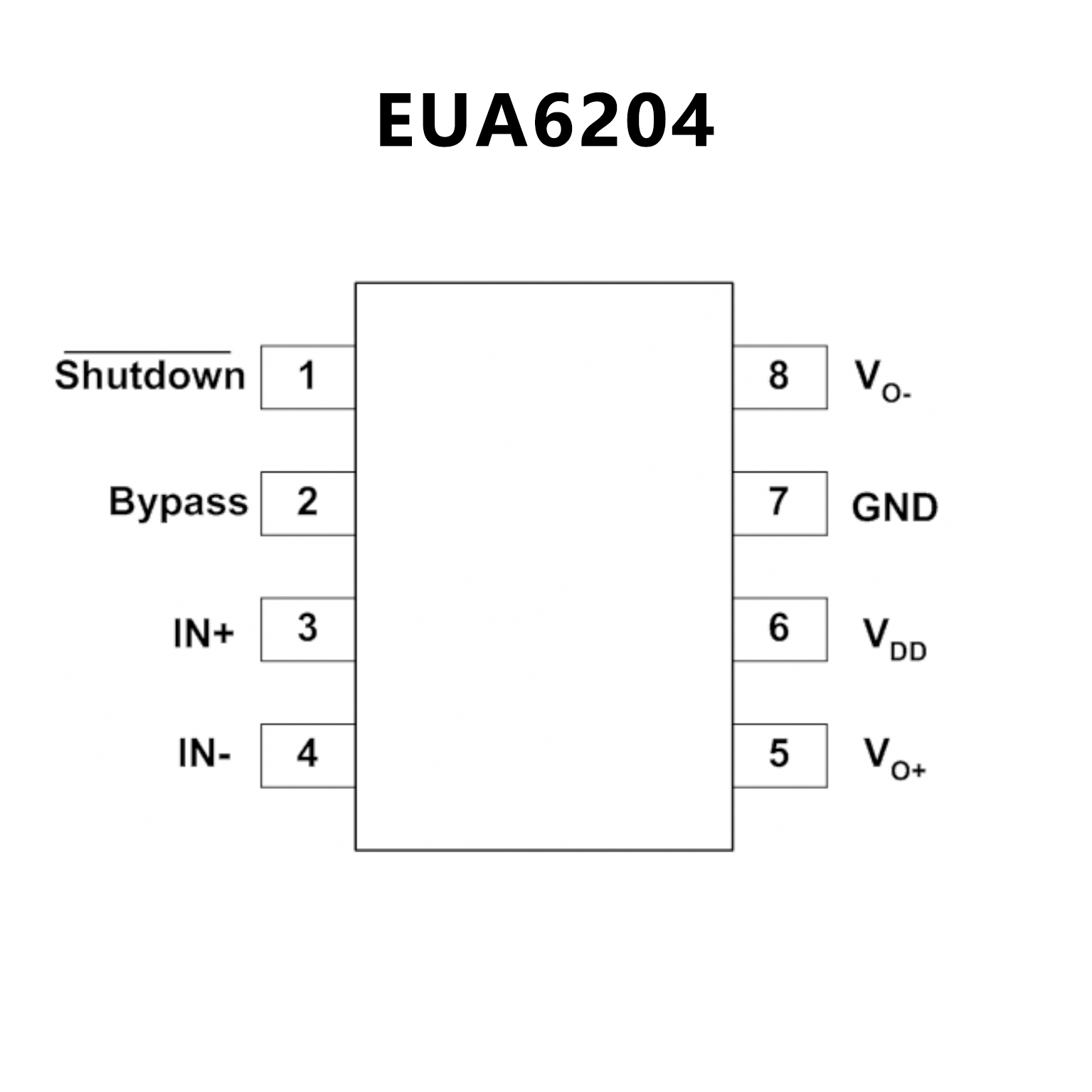

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? No output coupling capacitors, bootstrap
capacitors, or snubber circuits are necessary
? Small Outline (SOIC) packaging
? Compatible with PC power supplies
? Thermal shutdown protection circuitry
? Unity-gain stable
? External gain configuration capability

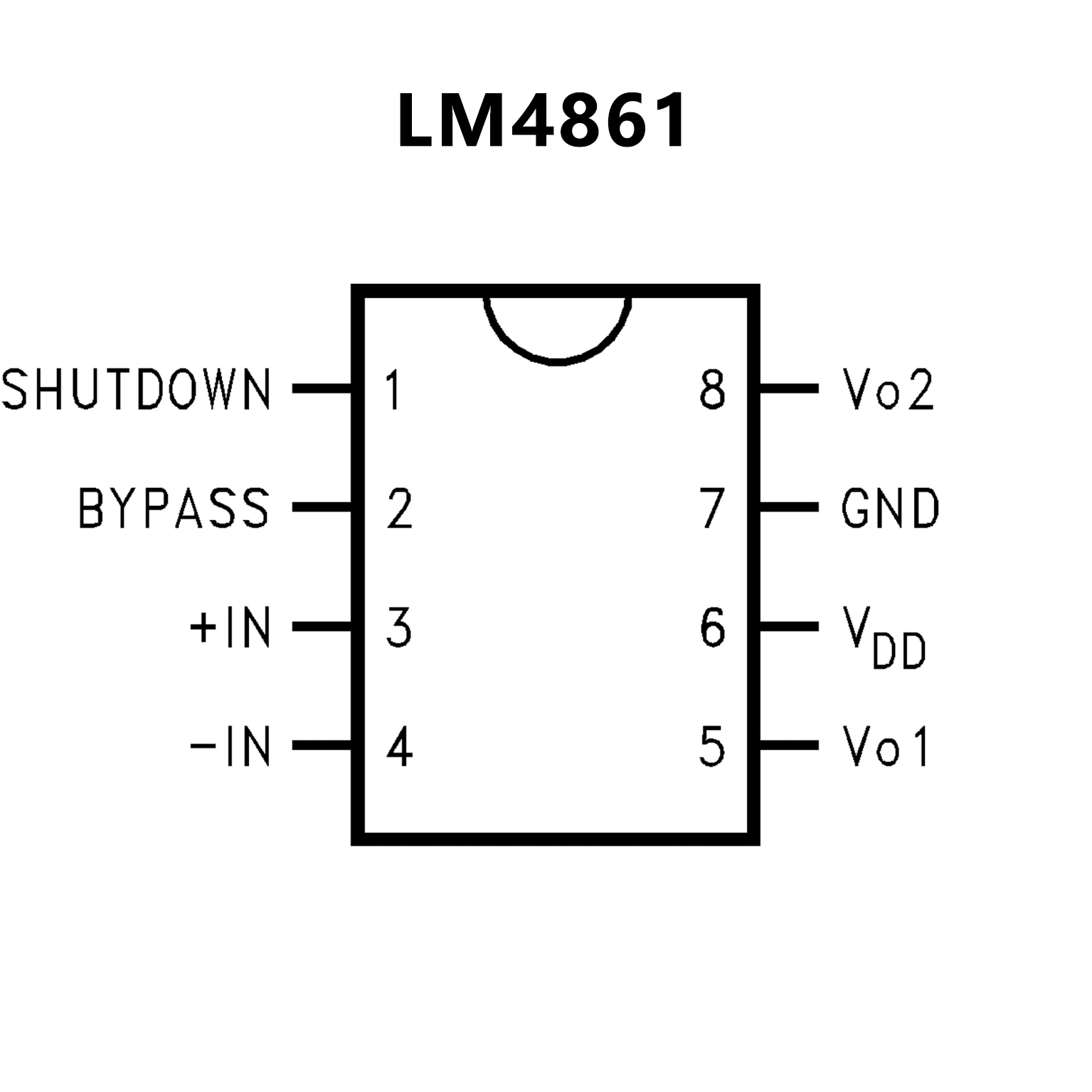

PIN CONFIGUTION
