3W Mono Fully Differential Audio Power Amplifier, EUA6204 Replace APA0714.
EUA6204
EUA6204.pdf
EUA6204.pdfFEATURES
? Supply Voltage 2.5V to 5.5V
? 1.36W into 8? from a 5-V Supply at THD=1% (typ)
? Low Supply Current: 4mA typ at 5V
? Shutdown Current: 0.01μA typ
? Fast Startup with Minimal Pop
? Only Three External Components
- Improved PSRR (-80dB) for Direct Battery Operation
- Full Differential Design Reduces RF Rectification
- -63dB CMRR Eliminates Two Input Coupling
Capacitors
? RoHS Compliant and 100% Lead (Pb)-Free

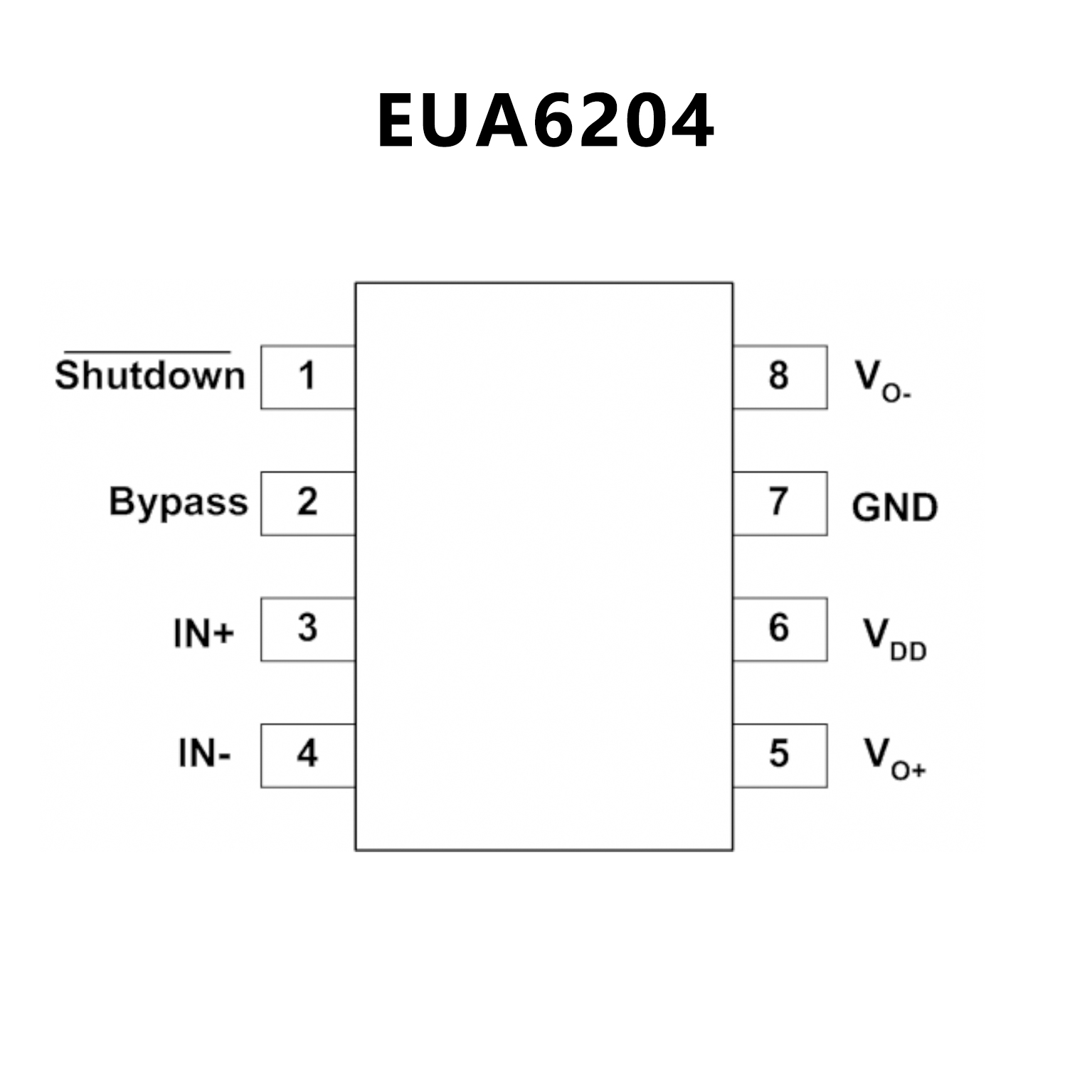

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Operating Voltage: 2.4V~5.5V
? Fully Differential Class-AB Amplifier
? High PSRR and Excellent RF Rectification Immunity
? Low Crosstalk
? 3W Output Power into 3W Load at VDD=5V
? Thermal and Over-Current Protections
? Built-in Feedback Resistors Eliminate
External Components Counts
? Space Saving Package
- MSOP-8
- MSOP-8P
- TDFN3x3-8
? Lead Free and Green Devices Available
(RoHS Compliant)

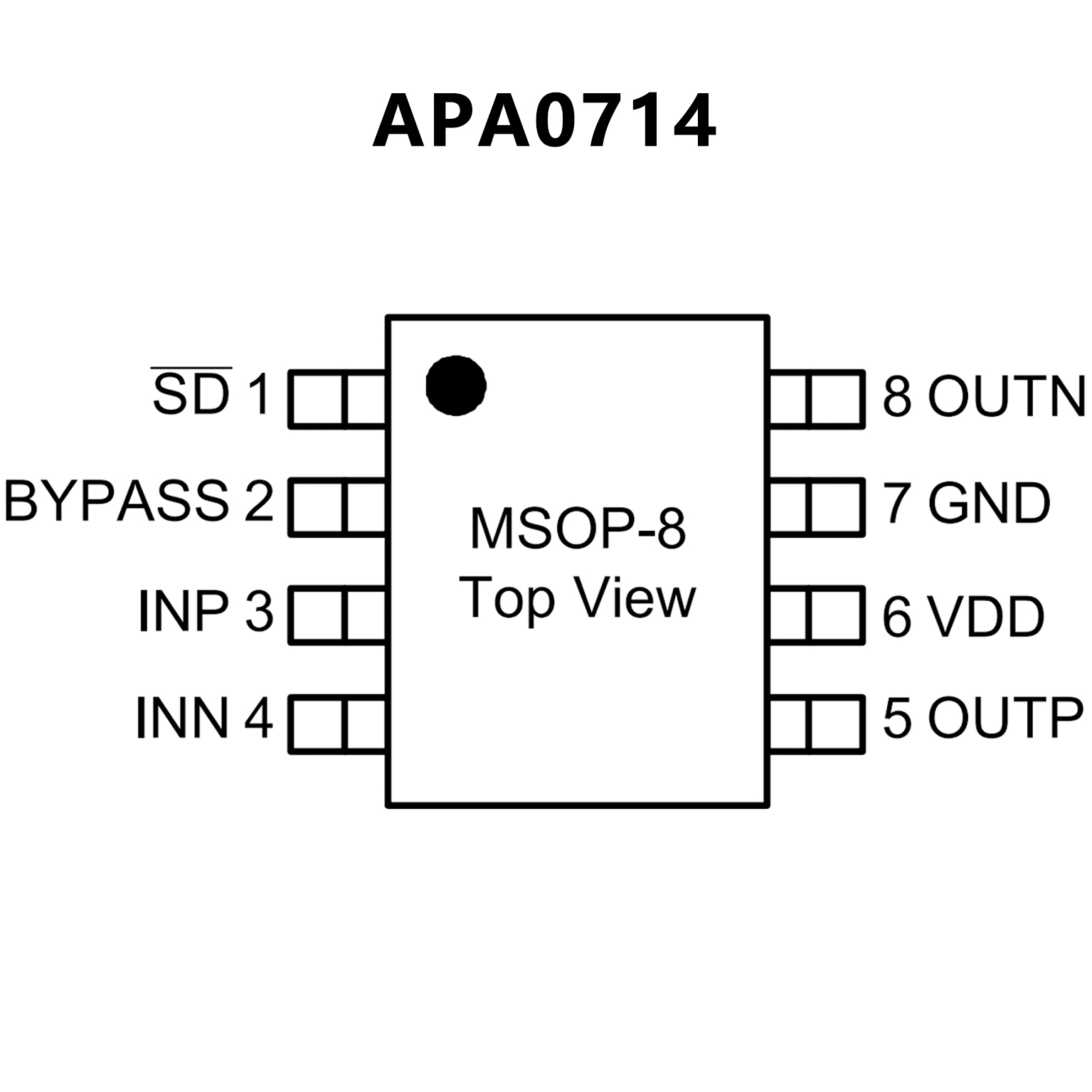

PIN CONFIGUTION
